About this product
An oil seal measuring 23 mm inner diameter by 35 mm outer diameter with 6 mm retaining ring width, supplied as a single piece. The seal conforms to DIN 3760 and features a nitrile rubber (NBR) sealing material with a rubber outer sheath and zinc-plated steel spring. The type CB variant has a rubber sheath without a dust lip, and the rubber outer sheath is designed to compensate for expansion and unevenness in the housing bore. The seal is suitable for sealing rotating machine components and operates across a temperature range of -35 to 100 °C. The product weighs 7 g and carries the EAN 8716106231683.
Product details
| Application range | For sealing rotating machine components |
|---|---|
| Content in sale unit | 1 pcs |
| d1Inside diameter | 23 mm |
| d2Outside diameter | 35 mm |
| hRetaining ring width | 6 mm |
| Long description | Oil seals inside Ø 23 mm |
| Manufacturer Product ID | 10004081 |
| Material spring | Spring steel |
| Properties | rubber outer sheath compensates for expansion and unevenness in the housing bore, With zinc-plated steel spring |
| Sealing material | Nitrile rubber [NBR] |

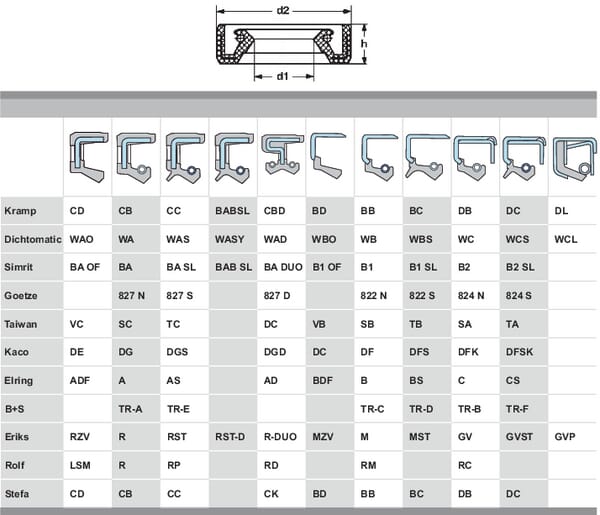

| Technical info | CB: rubber sheath, without dust lip, CC: rubber sheath, with dust lip, BB: steel sheath, without dust lip, BC: steel sheath, with dust lip, DB: steel sheath, with reinforcement, without dust lip, DC: steel sheath, with reinforcement, with dust lip |
| Temperature range | -35-100 °C |
| Type | CB |
| Unit | Each |
| With dust lip | No |
Logistics
| EAN | 8716106231683 |
|---|---|
| Unit of measure | EA |
| Weight | 7 g |
| Dimensions | 35 × 35 × 6 mm |
| Dangerous goods | No |
You might also like
BPA000240192
Kramp Shim diameter 66x120x5mm CBS6512050H
£7.97 excl.
£9.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000323552
Kramp Bearing NWB08870
£55.41 excl.
£66.49 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000135729

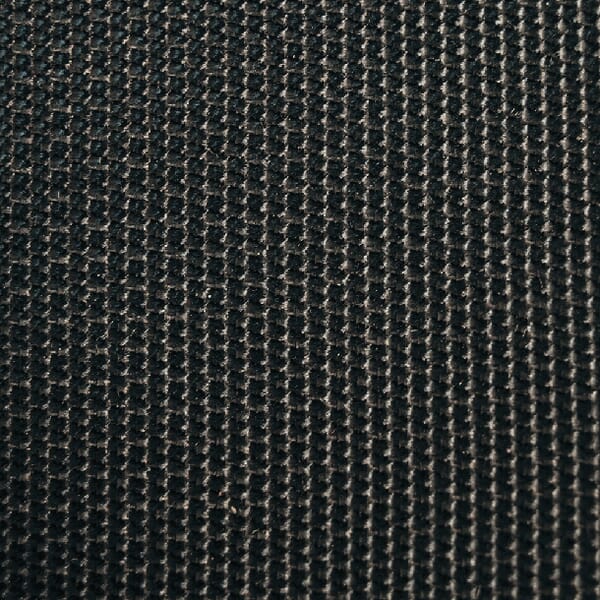

Kramp Baler Belt 25m 120 mm 52105002R25
£594.14 excl.
£712.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000050846
Kramp Oil seal 15x35x6mm type:CC DIN 3760 1x 15356CCP001
£1.74 excl.
£2.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000155085

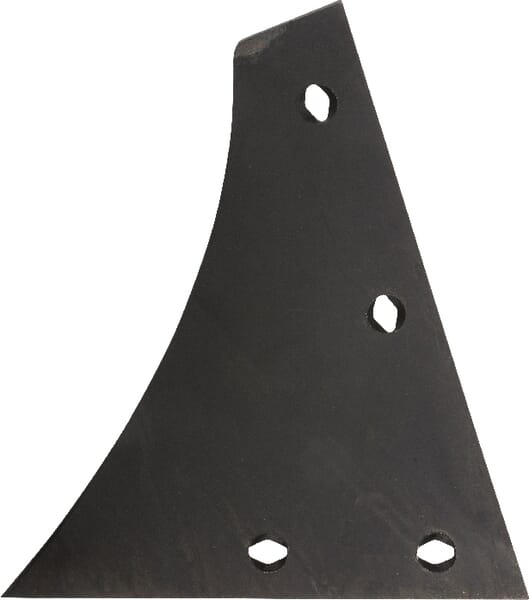

Kramp Shin LH 619173N
£20.85 excl.
£25.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000043051

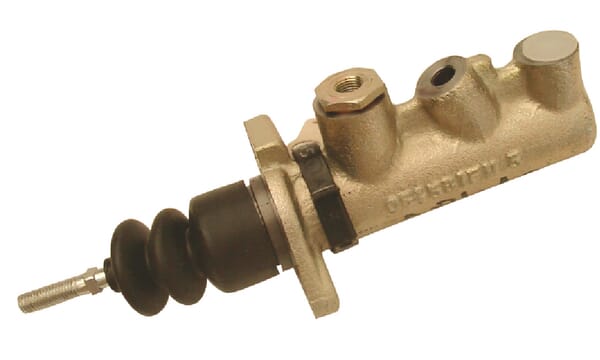

Kramp Master Cylinder Steyr 133135155N
