£23.78
excl. VAT
£28.54 incl. VAT
£28.54
incl. VAT
£23.78 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | For sealing rotating machine components, High ambient temperatures, Corrosive environments |
|---|---|
| Benefits | Wide range of applications, Longer service life |
| Content in sale unit | 1 pcs |
| Details | Very high temperature and chemical resistance, Good resistance to ageing and ozone |
| Inside diameter | 55 mm |
| Long description | Oil seals Viton Inside Ø 55 mm |
| Manufacturer Product ID | 10013302 |
| Material spring | Stainless steel 304 |
| Outside diameter | 90 mm |
| Properties | Viton outer sheath compensates for expansion and unevenness in the housing bore, With stainless steel spring |
| Retaining ring width | 10 mm |
| Sealing material | Fluo rubber [FPM] |
| Technical info | CB: rubber sheath, without dust lip, CC: rubber sheath, with dust lip, CBD: double shaft seal, rubber sleeve, no dust lip |
| Temperature range | -30-180 °C |
| Type | CC |
| Unit | Each |
| With dust lip | Yes |
Logistics
| EAN | 8716106215027 |
|---|---|
| Unit of measure | EA |
| Weight | 67 g |
| Dimensions | 150 × 110 × 10 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000306586

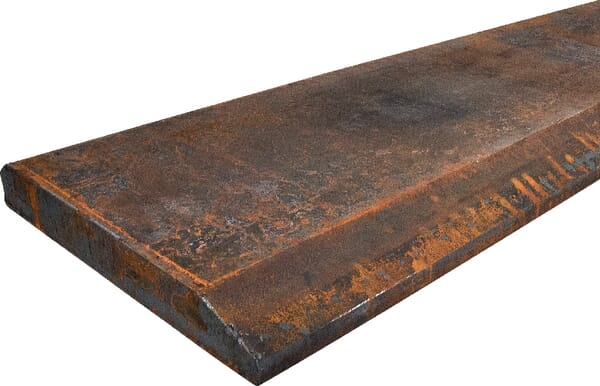

Kramp Bucket edge strip 250x30mm x3m HB500 KT250303
£877.44 excl.
£1,052.93 incl.
In stock
Expected to ship on Monday 21 September
BPA000250026

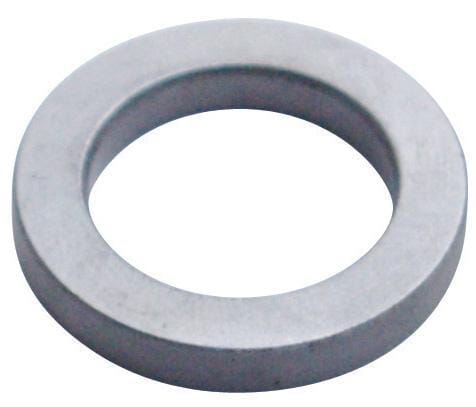

Kramp Press ring C25 bore 80 DS2908015
