About this product
A DIN 3760 oil seal measuring 60 mm shaft diameter (d1) by 100 mm outer diameter (d2) by 10 mm width (h), supplied as a pack of 10 pieces. The seal is type CC, which means it features a rubber outer coating with an integrated dust lip for enhanced protection against contamination. The sealing surface is nitrile rubber (NBR) material, selected for compatibility with mineral oils and hydraulic fluids. The spring element is manufactured from zinc-plated spring steel to provide consistent radial pressure and prevent leakage. The rubber outer coating absorbs minor expansion and compensates for imperfections in the bore surface. The seal is rated for continuous operation within a temperature range of −35 °C to 100 °C. The pack weighs 678 g and carries EAN 8716106214426 for ordering and inventory tracking.
Product details
| Content in sale unit | 10 pcs |
|---|---|
| d1Inside diameter | 60 mm |
| d2Outside diameter | 100 mm |
| hRetaining ring width | 10 mm |
| Material spring | Spring steel |

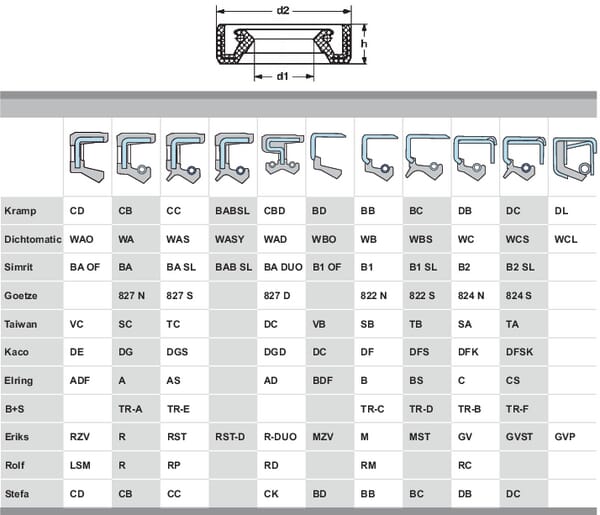

| Product details | A rubber outer coating absorbs expansion and imperfections in the body bore, With spring made of zinc-plated spring steel, CB: rubber coating, without dust lip, CC: rubber coating, with dust lip, BB: steel coating, without dust lip, BC: steel coating, with dust lip, DB: steel coating, with reinforcement, without dust lip, DC: steel coating, with reinforcement, with dust lip |
| Sealing material | Nitrile rubber [NBR] |
| Temperature range | -35-100 °C |
| Type | CC |
| Unit | Pack |
| With dust lip | Yes |
Logistics
| EAN | 8716106214426 |
|---|---|
| Unit of measure | PAC |
| Weight | 678 g |
| Dimensions | 210 × 120 × 70 mm |
| Dangerous goods | No |
