£3.97
excl. VAT
£4.76 incl. VAT
£4.76
incl. VAT
£3.97 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | For sealing rotating machine components |
|---|---|
| Content in sale unit | 1 pcs |
| d1Inside diameter | 90 mm |
| d2Outside diameter | 105 mm |
| hRetaining ring width | 13 mm |
| Long description | Oil seals inside Ø 90 mm |
| Manufacturer Product ID | 10009024 |
| Material spring | Spring steel |
| Properties | rubber outer sheath compensates for expansion and unevenness in the housing bore, With zinc-plated steel spring |
| Sealing material | Nitrile rubber [NBR] |
| Technical info | CB: rubber sheath, without dust lip, CC: rubber sheath, with dust lip, BB: steel sheath, without dust lip, BC: steel sheath, with dust lip, DB: steel sheath, with reinforcement, without dust lip, DC: steel sheath, with reinforcement, with dust lip |
| Temperature range | -35-100 °C |
| Type | CC |
| Unit | Each |
| With dust lip | Yes |
Logistics
| EAN | 8716106208845 |
|---|---|
| Unit of measure | EA |
| Weight | 62 g |
| Dimensions | 104 × 104 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000249785

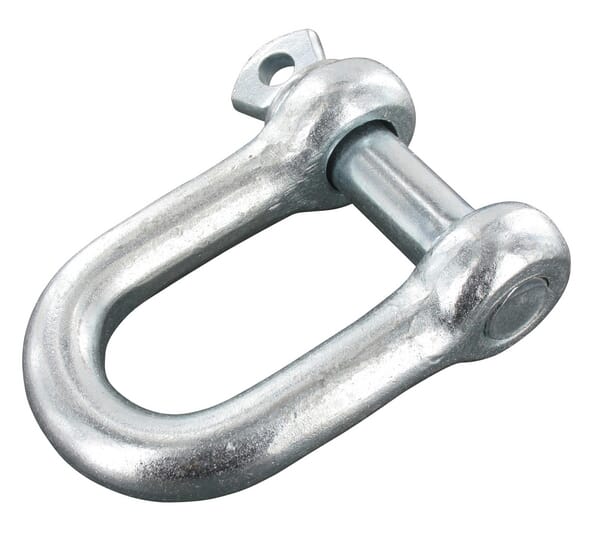

Kramp D Shackle 5/16" zinc plated DS08
£0.56 excl.
£0.67 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000236890
Kramp Bearing ball 12mm BB12KR
£0.32 excl.
£0.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000051176

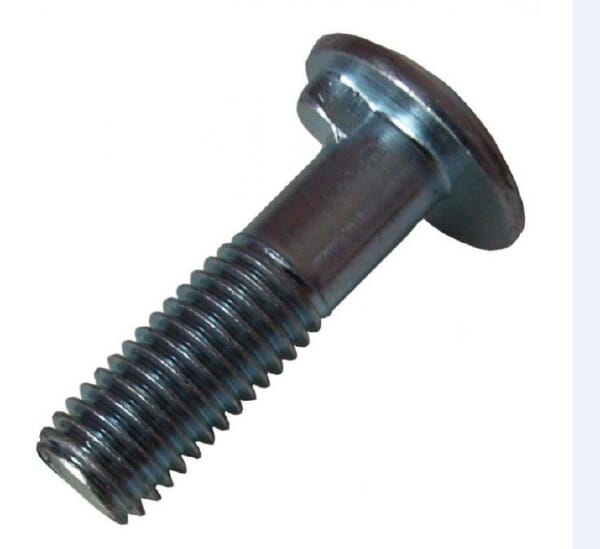

Kramp Bolt 12x42 16121334N
