£26.00
excl. VAT
£31.20 incl. VAT
Pack of 100 · £0.26 each excl. VAT
£31.20
incl. VAT
£26.00 excl. VAT
Pack of 100 · £0.31 each incl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product

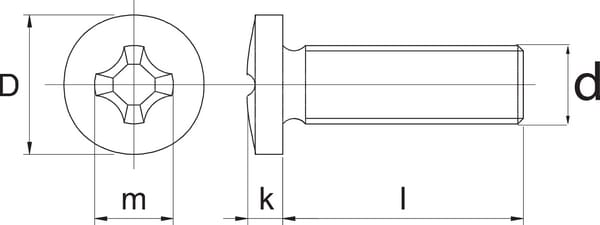

Pan head machine screw with Phillips cross-head drive, M6 thread diameter × 45 mm length, supplied in packs of 100 pieces. The screw is manufactured from stainless steel grade A2 (AISI 304) and conforms to DIN 7985 / ISO 7045. Head dimensions are 12 mm outside diameter with 4.5 mm height; the Phillips drive size is PH3. Thread pitch is 1.00 mm. The pack weighs approximately 1.14 kg (11 g per screw). Each screw carries EAN 8716106398799 for ordering and inventory control.
Product details
| Content in sale unit | 100 pcs |
|---|---|
| DHead outside diameter (width) | 12 mm |
| DIN standard | 7985 |
| Head shape | Pan |
| Head type | PH |
| ISO standard | 7045 |
| kHead height | 4.5 mm |
| lLength | 45 mm |
| Long description | Pan head machine screw with cross head, fully threaded shaft. |
| Material | Stainless steel |
| Qty. Rounding | 100 |
| Quality | A2 |
| Spanner size standsarized | PH3 |
| Thread diameter | M6 |
| Thread pitch | 1.00 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 1.14 kg |
Logistics
| EAN | 8716106398799 |
|---|---|
| Unit of measure | EA |
| Weight | 11 g |
| Dimensions | 50 × 12 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000319107

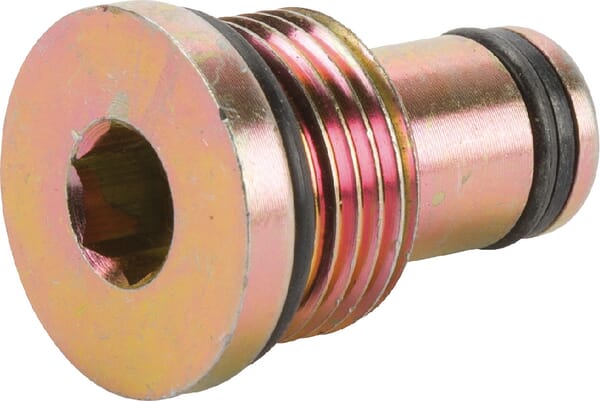

Kramp SAE 8-2 Cavity Plug MPPPSAE82
£7.85 excl.
£9.42 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000322929
Kramp Bearing NWB08175
£14.28 excl.
£17.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203182
Kramp Hexagon head bolt DIN933 M12x150 steel zinc-plated 10.9 93312150109
£1.95 excl.
£2.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000077323
Kramp Oil seal 25x50x10mm type:DB DIN 3760 1x 255010DBP001
£1.37 excl.
£1.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000080871

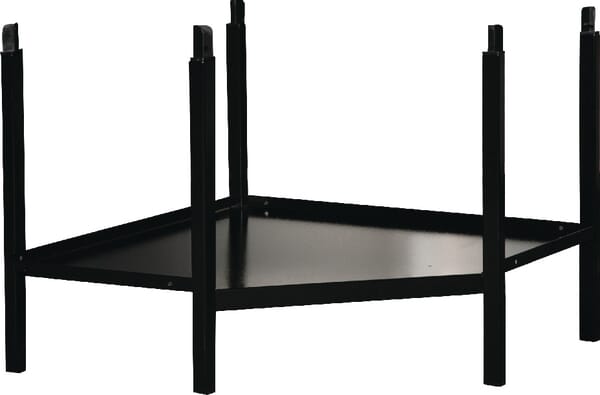

Kramp Centre corner module 1 shelf 291710637
