£2,277.06
excl. VAT
£2,732.47 incl. VAT
£2,732.47
incl. VAT
£2,277.06 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Charge pump pressure | 20 BAR |
|---|---|

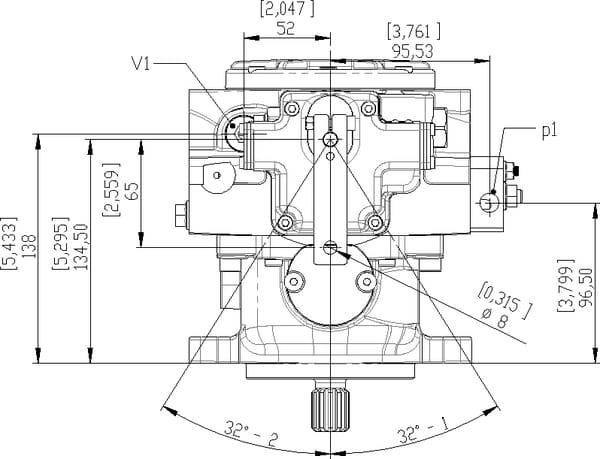

| Control | Manual lever with feedback |
| Displacement | 21 cm³/rev |
| Displacement charge pump | 11 cm³/rev |
| Flange code | - |
| Max continous working pressure | 250 BAR |
| Maximum intermittent speed | 3600 r/min |
| Max pressure peak | 350 BAR |
| Max rotation speed | 3600 r/min |
| Min rotation speed | 700 r/min |

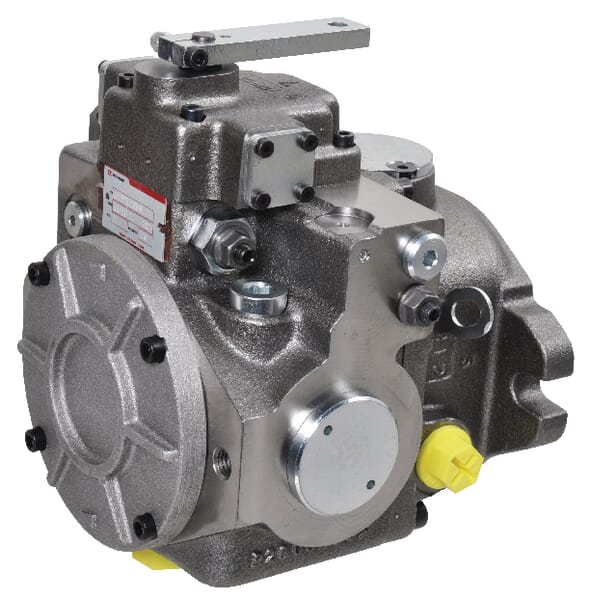

| Model type | KCLPC2 |
| Product details | High flow at medium pressure, Adjustable maximum stroke count, With charge pump, For use as transmission, fertiliser pump, winch drive, mobile applications and much more, We do not keep this anti-clockwise pump in stock as standard. However, it can be delivered within 2 days. Please contact our product specialist to order this item. |
| Pros | Compact design, Through connection possible, Multiple pump control options |

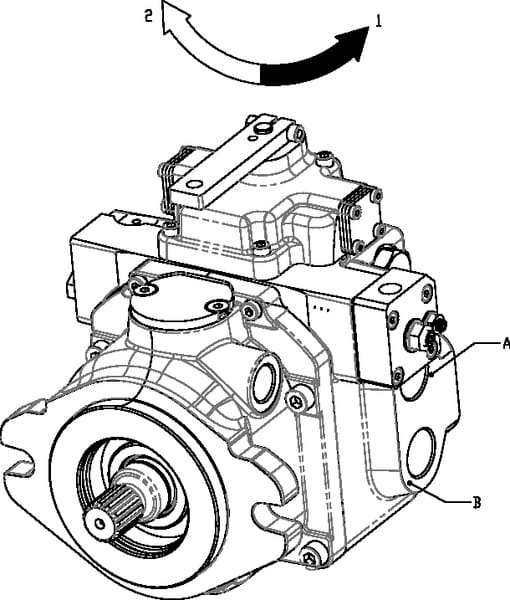

| Rotation direction | Clockwise (CW) |
| Shaft code | 01 |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Trough shaft option | No |
| Unit | Each |
Logistics
| EAN | 8719732834228 |
|---|---|
| Unit of measure | EA |
| Weight | 20100 g |
| Dimensions | 250 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
BPA000327871
Kramp O-ring 25x4.1 75 shore Viton 10x OR25410VP010
£26.25 excl.
£31.50 incl.
In stock
Expected to ship on Monday 21 September
BPA000145564
Kramp Belt tensioner pulley 586104302KR
£12.92 excl.
£15.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000360907
Kramp Tie rod SHP183KR
£43.55 excl.
£52.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000154788

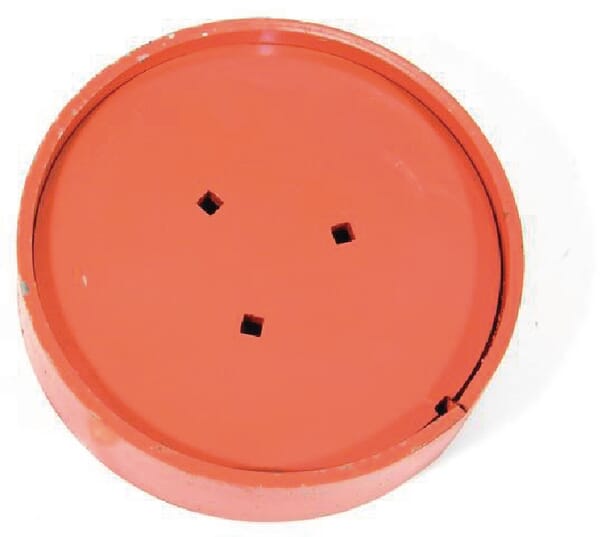

Kramp Depth limiter ring 65011092N
