£118.21
excl. VAT
£141.85 incl. VAT
£141.85
incl. VAT
£118.21 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

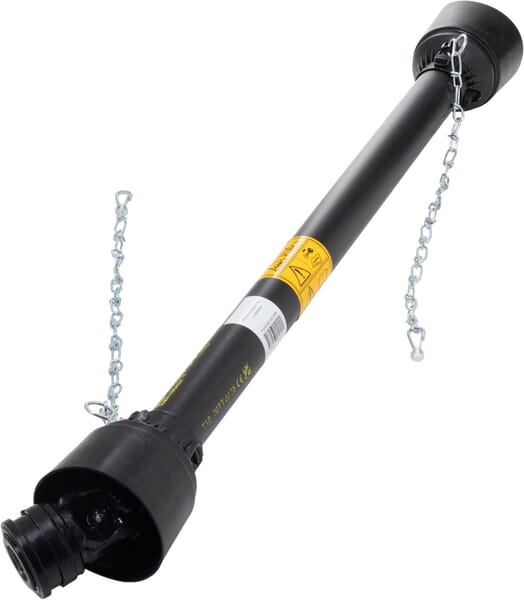

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Inner tube large outside diameter | 26.5 mm |
| Inner tube wall thickness | 3.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 320 N·m |
| Outer tube large outside diameter | 32.5 mm |
| Outer tube wall thickness | 2.6 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 12 kW - 210 Nm, Max. dynamic capacity 1000 rpm - 18 kW - 172 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T10 |
| Unit | Each |
Logistics
| EAN | 8719493249224 |
|---|---|
| Unit of measure | EA |
| Weight | 9100 g |
| Dimensions | 1250 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000055870
Kramp Oil seal 17x40x8mm type:CB DIN 3760 1x 17408CBP001
£1.64 excl.
£1.97 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000337735

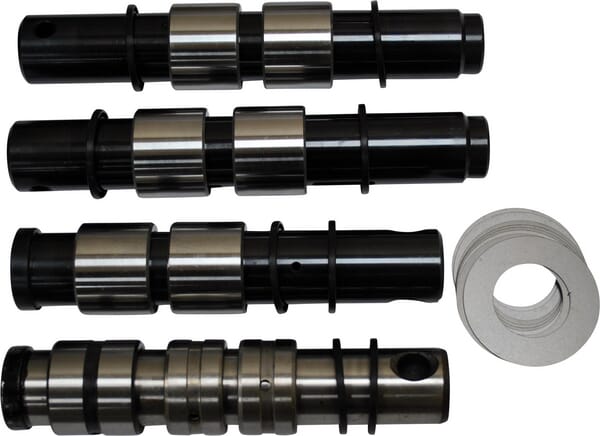

Kramp Pin and bush kit PBHITZX33U3
£328.72 excl.
£394.46 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000193071
Kramp Oil seal 90x115x9mm type:BB DIN 3760 1x 901159BBP001
£12.07 excl.
£14.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000356901

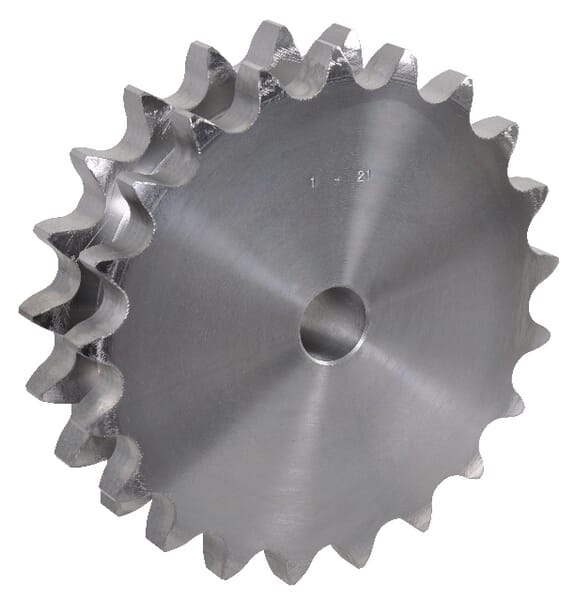

Kramp Sprocket Duplex 40 teeth 1" chain 16 B-2 SD140
£199.79 excl.
£239.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000060035

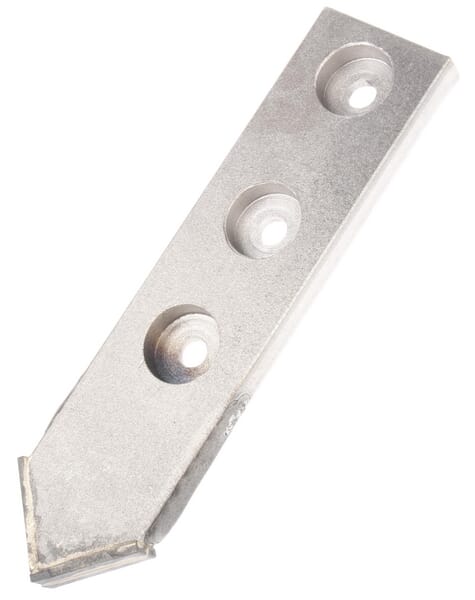

Kramp Subsoiler point carbide 19100002CN
£79.00 excl.
£94.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000282489

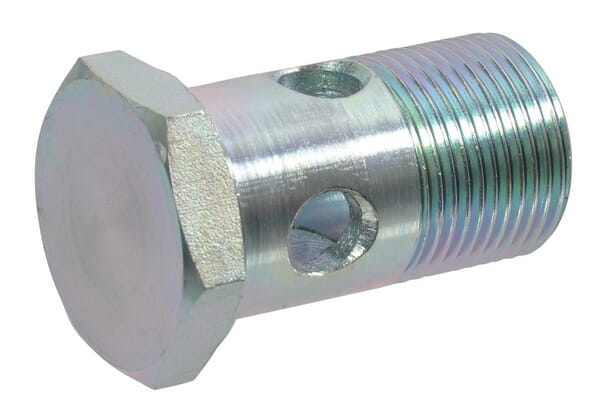

Kramp Banjo bolt M 8x1 HBM8
