£96.63
excl. VAT
£115.96 incl. VAT
£115.96
incl. VAT
£96.63 excl. VAT
In stock
Expected to ship on Monday 21 September

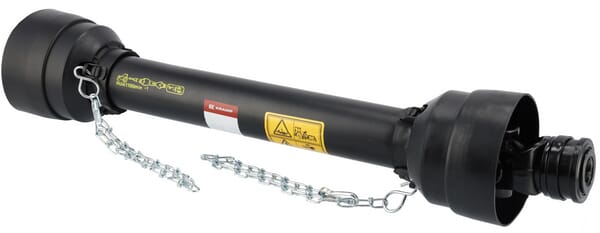

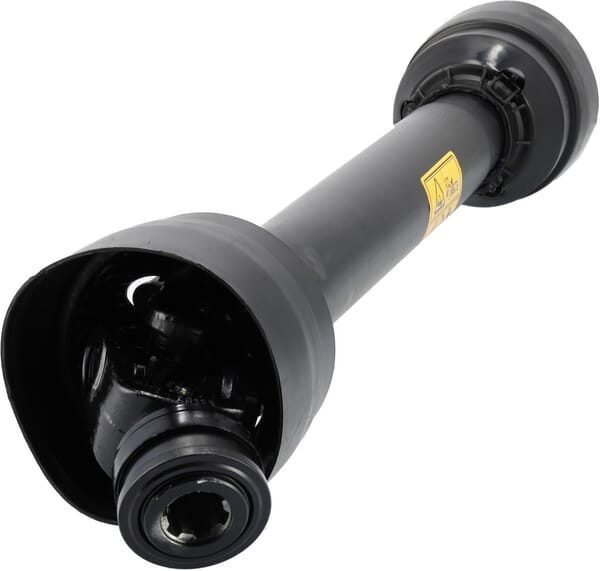

Product details

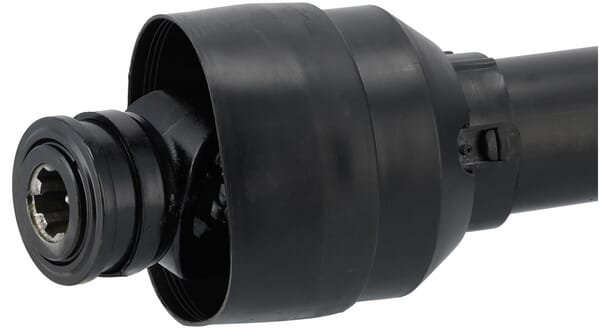

| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |

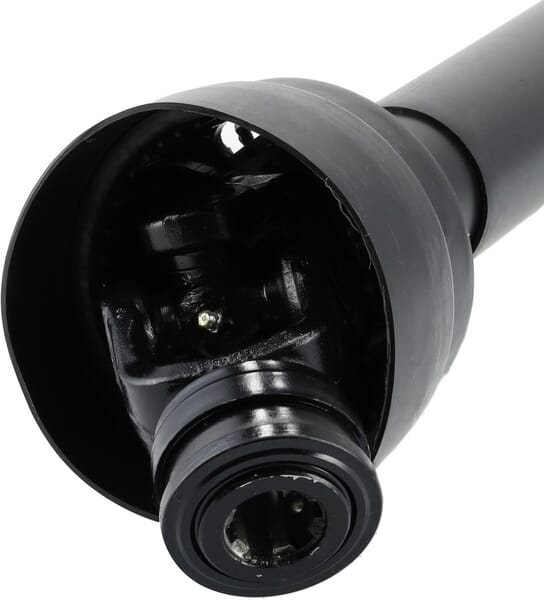

| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Inner tube large outside diameter | 26.5 mm |
| Inner tube wall thickness | 3.5 mm |
| Length | 560 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 320 N·m |
| Outer tube large outside diameter | 32.5 mm |
| Outer tube wall thickness | 2.6 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 12 kW - 210 Nm, Max. dynamic capacity 1000 rpm - 18 kW - 172 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T10 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7612 g |
| Dimensions | 569 × 130 × 130 mm |
| Dangerous goods | No |
You might also like
BPA000087969

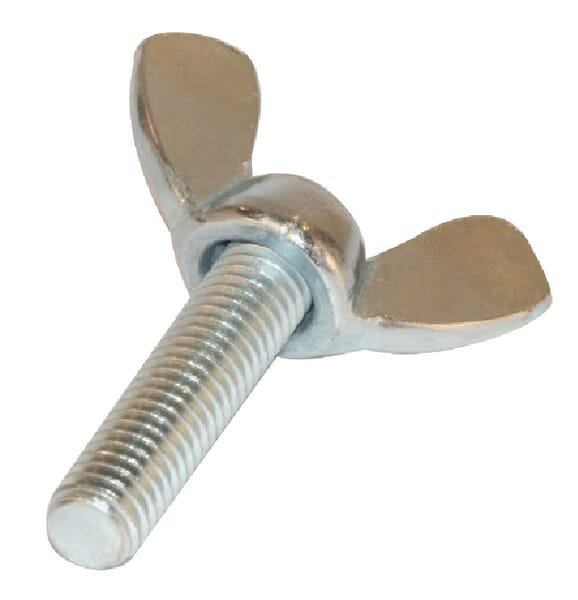

Kramp Wing screw DIN316 M5x25 steel zinc-plated 316525
£0.58 excl.
£0.70 incl.
In stock
Expected to ship on Monday 21 September
BPA000199451
Kramp Hexagon head bolt DIN931 M12x130 stainless steel A4 93112130RVSA4P001
£3.16 excl.
£3.80 incl.
In stock
Expected to ship on Monday 21 September
BPA000124240
Kramp Oil seal 48x80x13mm type:CB DIN 3760 1x 488013CBP001
£3.54 excl.
£4.25 incl.
In stock
Expected to ship on Monday 21 September
BPA000318668

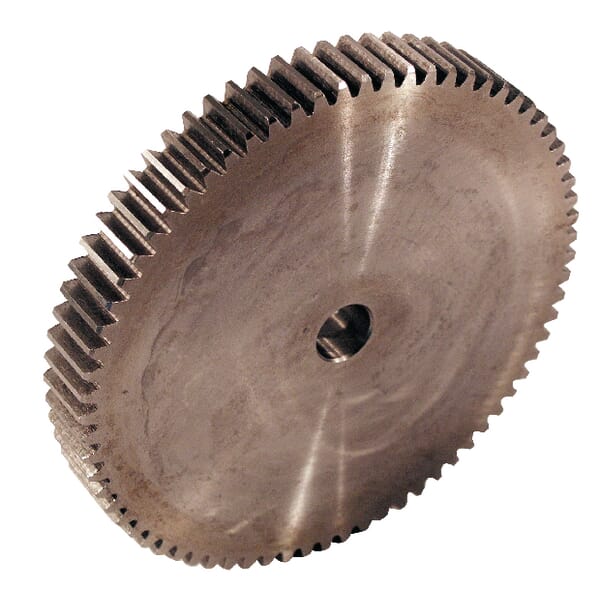

Kramp Spur gear module 3 - Z=60 MOD360
£78.34 excl.
£94.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000195792
Kramp Hexagon socket head cap screw DIN912 M16x70 steel 12.9 9121670129B
£1.67 excl.
£2.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000320276

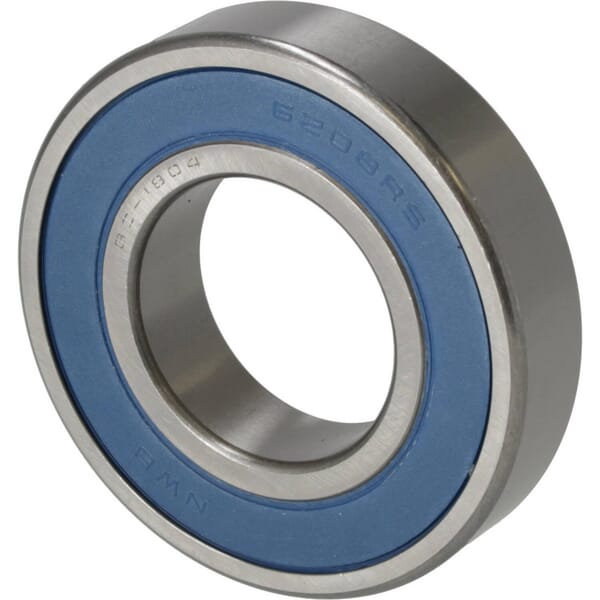

Kramp Bearing NWB07465
