£147.86
excl. VAT
£177.43 incl. VAT
£177.43
incl. VAT
£147.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Clamp yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection inside diameter by machine side | 30 mm |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Inner tube large outside diameter | 29 mm |
| Inner tube wall thickness | 4 mm |
| Length | 1210 mm |
| Locking type by machine side | Clamp bolt (non interfering) |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 450 N·m |
| Outer tube large outside diameter | 36 mm |
| Outer tube wall thickness | 3.2 mm |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers, fertiliser spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 15 kW - 270 Nm, Max. dynamic capacity 1000 rpm - 23 kW - 220 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T20 |
| Unit | Each |
Logistics
| EAN | 8719493249521 |
|---|---|
| Unit of measure | EA |
| Weight | 12317 g |
| Dimensions | 1420 × 125 × 125 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000367461

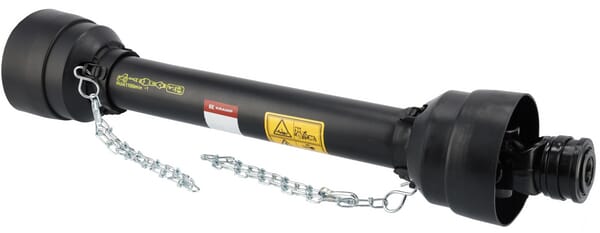

Kramp PTO drive shaft T20 L=1210mm T20121SC12C12KR
£138.02 excl.
£165.62 incl.
In stock
Expected to ship on Monday 21 September
BPA000203363
Kramp Hexagon head bolt DIN933 M14x70 steel zinc-plated 10.9 9331470109
£1.12 excl.
£1.34 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000251156

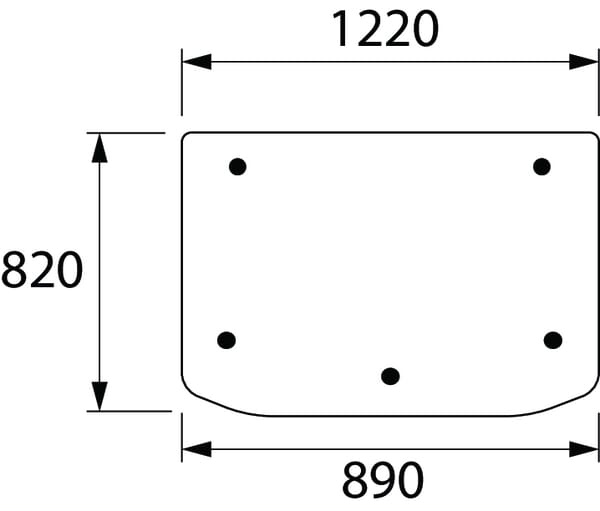

Kramp Rear window upper D7516
£217.89 excl.
£261.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000308904

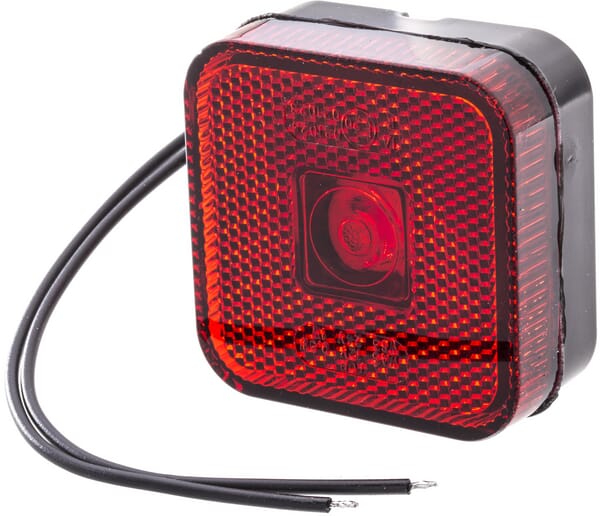

Kramp Marker light LED, square, 12-24V, 65x65x28mm, LA30139
