£109.34
excl. VAT
£131.21 incl. VAT
£131.21
incl. VAT
£109.34 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

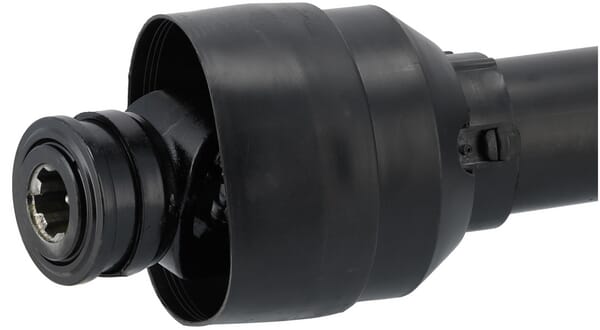

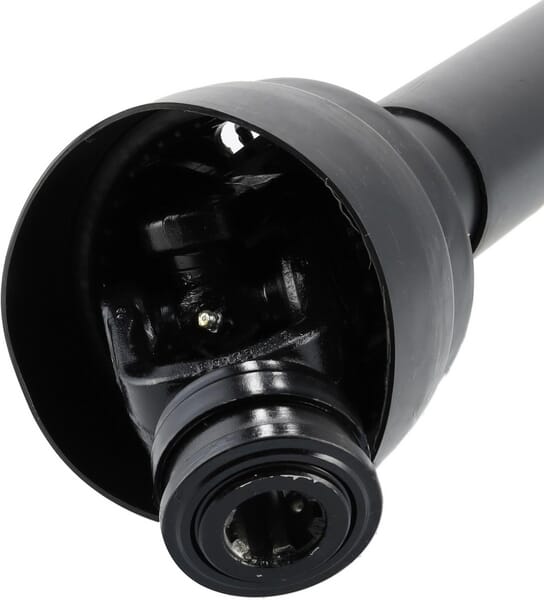

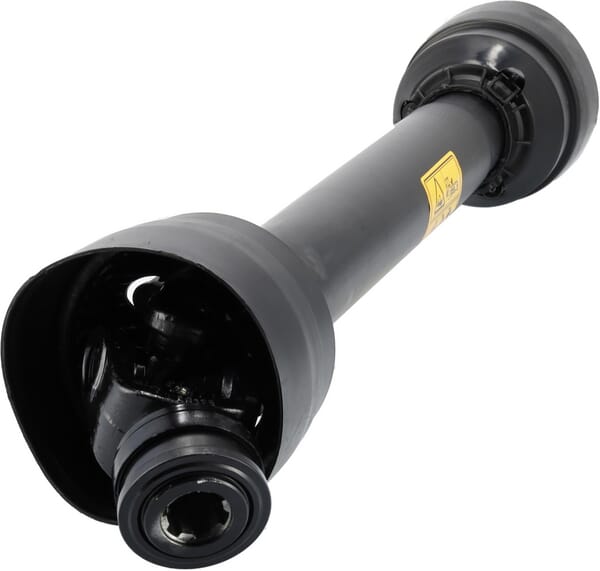

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Inner tube large outside diameter | 29 mm |
| Inner tube wall thickness | 4 mm |
| Length | 710 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 450 N·m |
| Outer tube large outside diameter | 36 mm |
| Outer tube wall thickness | 3.2 mm |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers, fertiliser spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 15 kW - 270 Nm, Max. dynamic capacity 1000 rpm - 23 kW - 220 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T20 |
| Unit | Each |
Logistics
| EAN | 8719493249262 |
|---|---|
| Unit of measure | EA |
| Weight | 9800 g |
| Dimensions | 950 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000330121
Kramp O-ring 53.98x3.53mm 70 shore 10x OR5398353P010
£3.86 excl.
£4.63 incl.
In stock
Expected to ship on Monday 21 September
BPA000248291

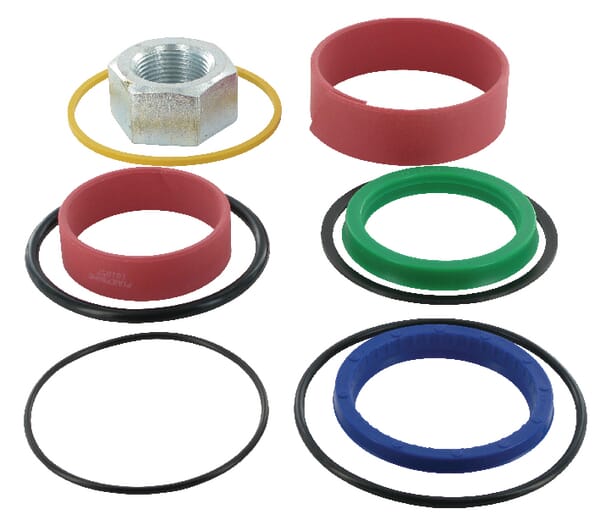

Kramp Seal kit CSKJCB90320896
