£77.90
excl. VAT
£93.48 incl. VAT
£93.48
incl. VAT
£77.90 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Inner tube large outside diameter | 29 mm |
| Inner tube wall thickness | 4 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 450 N·m |
| Outer tube large outside diameter | 36 mm |
| Outer tube wall thickness | 3.2 mm |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers, fertiliser spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 15 kW - 270 Nm, Max. dynamic capacity 1000 rpm - 23 kW - 220 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T20 |
| Unit | Each |
Logistics
| EAN | 8719493481440 |
|---|---|
| Unit of measure | EA |
| Weight | 10800 g |
| Dimensions | 1000 × 150 × 130 mm |
| Dangerous goods | No |
You might also like
BPA000321877
Kramp Bearing NWB09224
£10.61 excl.
£12.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341539
Kramp Panel retaining nut PRN2K
£2.92 excl.
£3.50 incl.
In stock
Expected to ship on Monday 21 September
BPA000237295

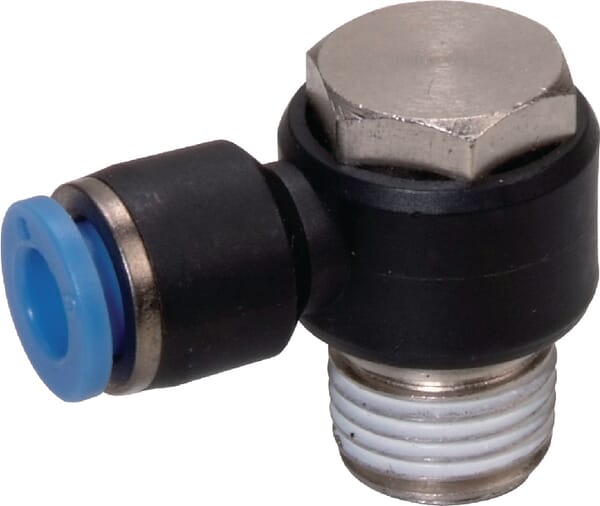

Kramp Elbow push-in fitting 4x1/4" BCS414P
£2.71 excl.
£3.25 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000302407

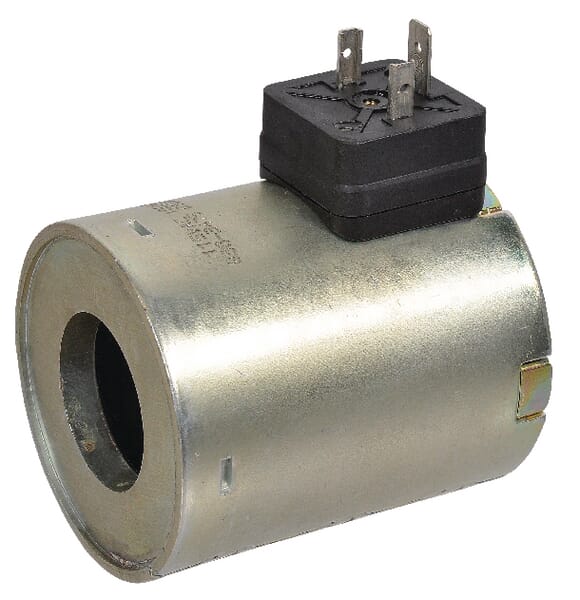

Kramp Coil for KREV-05 120 V AC KREV905120A
