£148.82
excl. VAT
£178.58 incl. VAT
£178.58
incl. VAT
£148.82 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

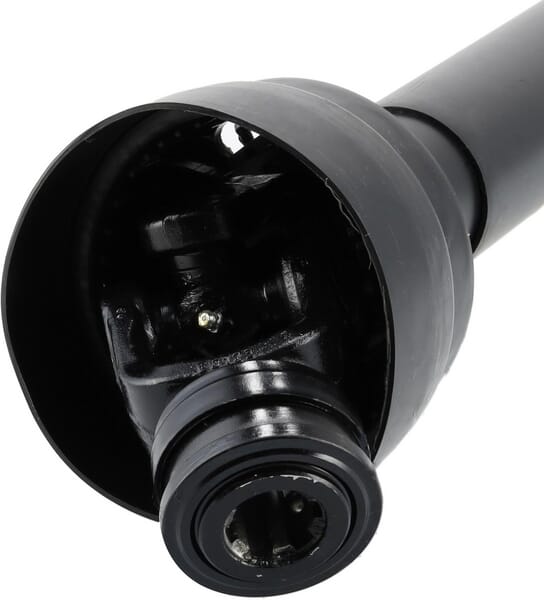

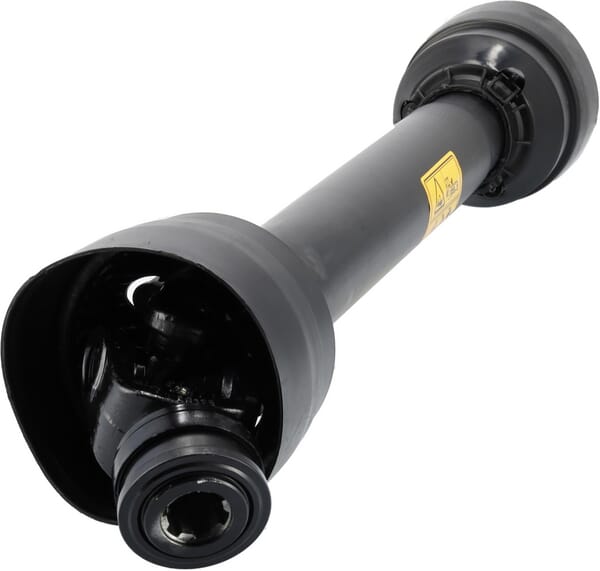

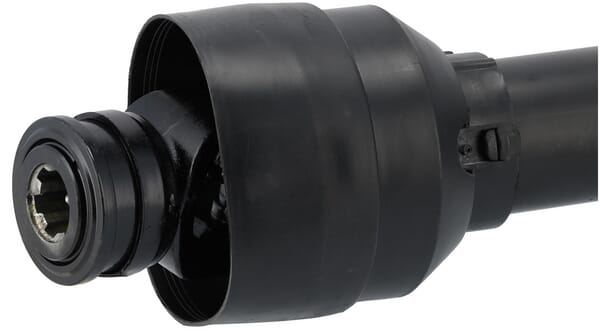

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 26 kW - 460 Nm, Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | 8719493249095 |
|---|---|
| Unit of measure | EA |
| Weight | 13759 g |
| Dimensions | 1220 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000328049
Kramp O-ring 28.5x2.5mm 70 shore 10x OR2850250P010
£2.41 excl.
£2.89 incl.
In stock
Expected to ship on Monday 21 September
BPA000198540
Kramp Hexagon head bolt DIN931 M5x70 steel zinc-plated 8.8 931570
£0.22 excl.
£0.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000240562
Kramp Door window upper CCGJCB030
£96.24 excl.
£115.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000370144
Kramp Bolt pack 1x M12x35 2N+Nut TB20210
£2.50 excl.
£3.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000403484
Kramp X-ring 13.95x2.62mm 70 shore 10x XR1395262P010
£2.23 excl.
£2.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000046870

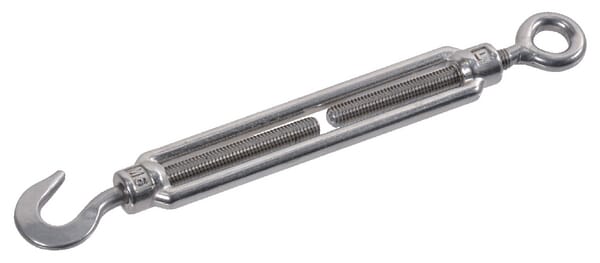

Kramp Turnbuckle hook/round 16mm S.S. 148016HGRVS
