£158.60
excl. VAT
£190.32 incl. VAT
£190.32
incl. VAT
£158.60 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

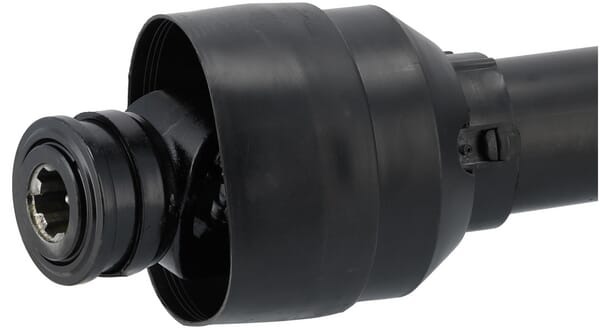

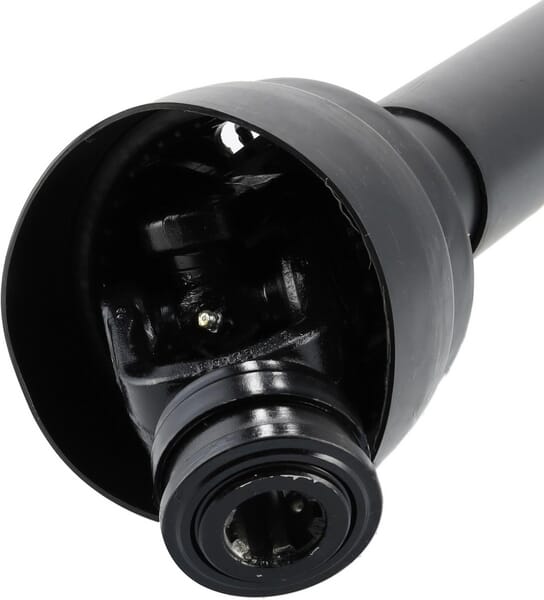

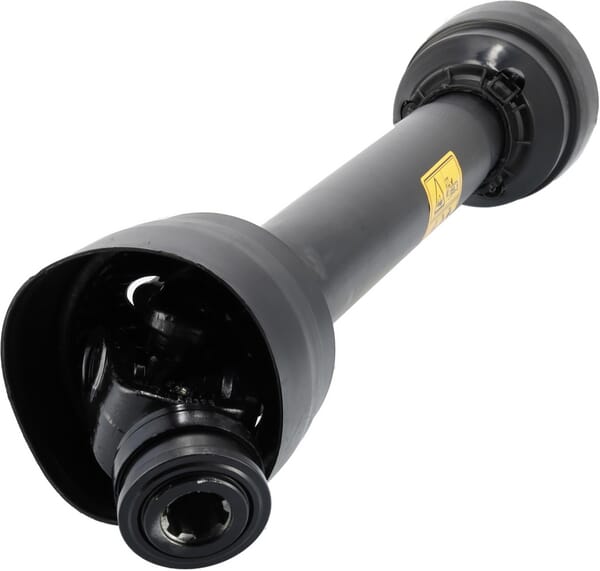

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 26 kW - 460 Nm, Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | 8719493249170 |
|---|---|
| Unit of measure | EA |
| Weight | 15342 g |
| Dimensions | 1450 × 145 × 145 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000368715
Kramp PTO drive shaft T40 L=1210mm T40121SC12344KR
£181.59 excl.
£217.91 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000318222
Kramp Bearing NWB06356
£32.23 excl.
£38.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000179443
Kramp Countersunk head screw DIN7991 M3x20 steel zinc-plated 10.9 7991320
£0.20 excl.
£0.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000305679

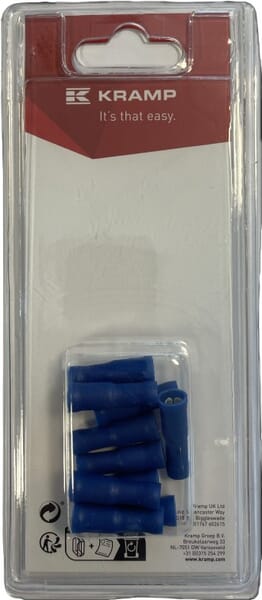

Kramp Bullet connector female, blue diameter 5mm - 1.5-2.5mm² (10) KRLA9330P10B
£1.99 excl.
£2.39 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000327929
Kramp O-ring 26x4.5 70 shore 10x OR26450P010
£9.00 excl.
£10.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000282575

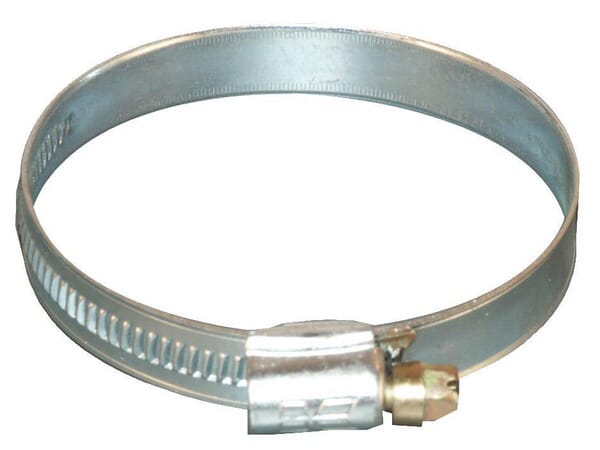

Kramp Hose clamp 16-27mm HC1627
