£115.70
excl. VAT
£138.84 incl. VAT
£138.84
incl. VAT
£115.70 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 1610 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 26 kW - 460 Nm, Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | 8719493481372 |
|---|---|
| Unit of measure | EA |
| Weight | 18000 g |
| Dimensions | 1610 × 150 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000024078
Kramp Oil seal 10x22x7mm type:CB Viton Stainless steel DIN 3760 1x 10227CBVP001
£10.40 excl.
£12.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000077106
Kramp Oil seal 25x33x6mm type:CB DIN 3760 1x 25336CBP001
£1.76 excl.
£2.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000289202

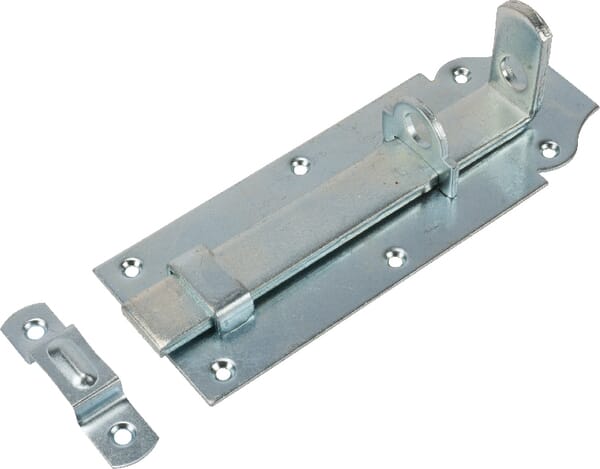

Kramp Bolt for flat lock 140x55 HS010913
£5.33 excl.
£6.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000278365
Kramp Protection tube 13mm 100m flexible corrugated, open, black FTBL13100
£0.86 excl.
£1.03 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000178989

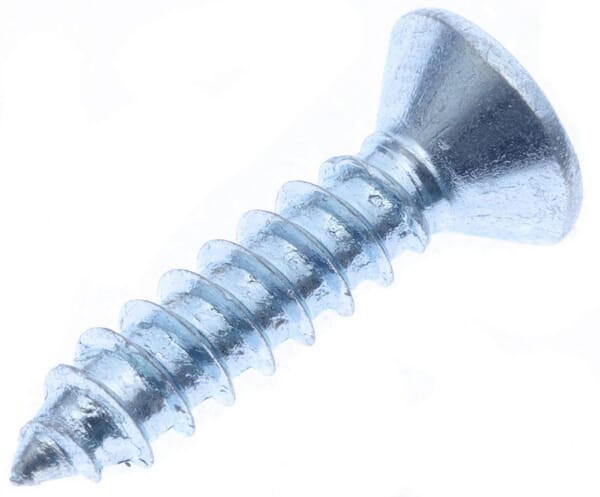

Kramp Self tapping screw 3.5x16mm PZ2 countersunk, DIN 7983C 7983C3516P200
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321836
Kramp Bearing NWB09180
£13.83 excl.
£16.60 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000021244

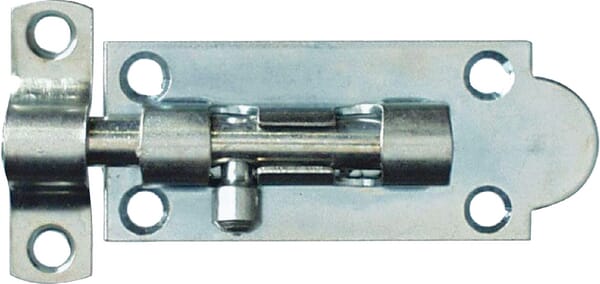

Unbranded Door bolts inox 78mm 0960194316786
