£99.56
excl. VAT
£119.47 incl. VAT
£119.47
incl. VAT
£99.56 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | B02 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 85.8 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 560 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 1700 N·m |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 26 kW - 460 Nm, Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | 8719493481327 |
|---|---|
| Unit of measure | EA |
| Weight | 15850 g |
| Dimensions | 560 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000270869
Kramp V-belt 17.0x1958". FGP011391
£30.33 excl.
£36.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000059275

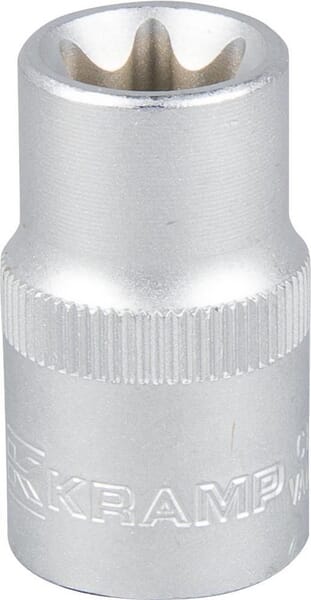

Kramp Socket 1/2" Torx E16 18060132016KR
£2.96 excl.
£3.55 incl.
In stock
Expected to ship on Friday 18 September
BPA000198028
Kramp Hexagon head bolt DIN931 M20x120 steel 12.9 93120120129B
£4.38 excl.
£5.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373892

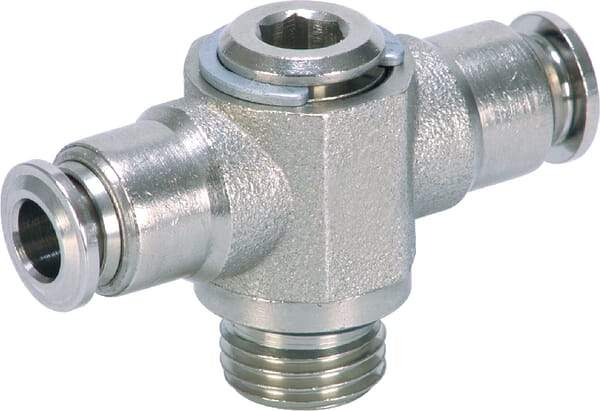

Kramp T-push-in fitting 8x1/8" TCFS188
£11.03 excl.
£13.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000362715

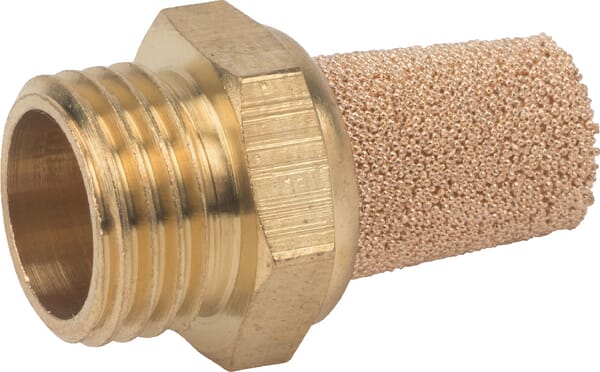

Kramp Silencer SIL14MR
£2.95 excl.
£3.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000283852

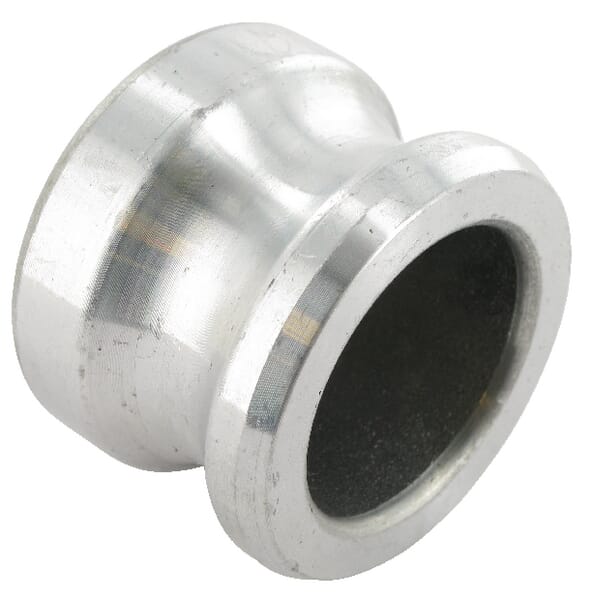

Kramp Camlock Type DP 1 1/2" plug aluminium HCN100HAL038
