£130.15
excl. VAT
£156.18 incl. VAT
£156.18
incl. VAT
£130.15 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

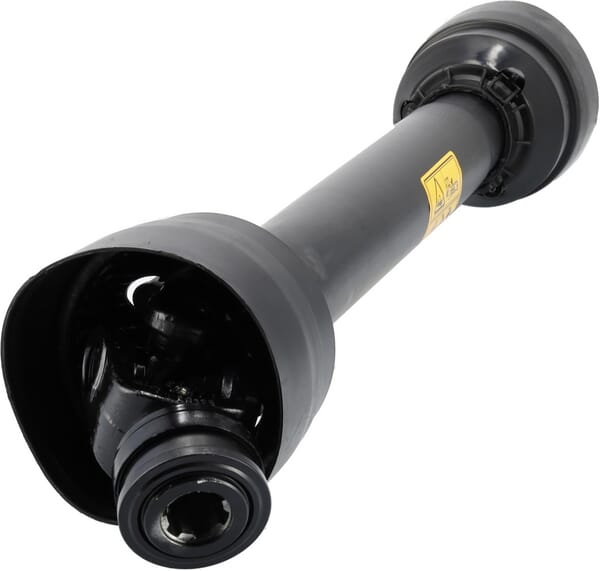

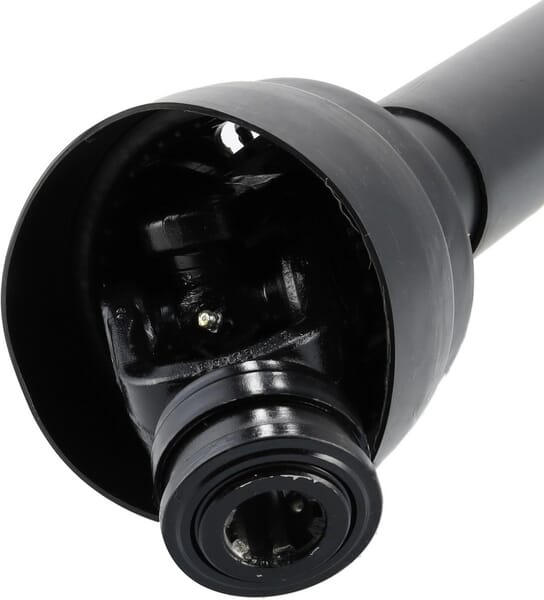

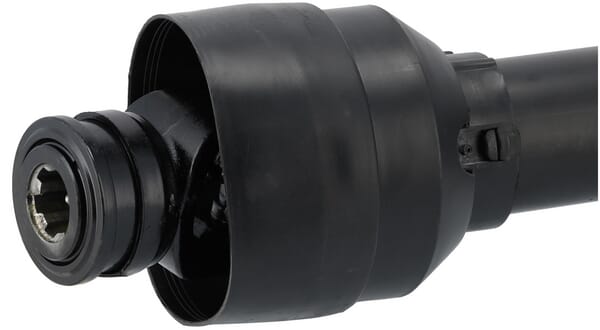

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 560 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 26 kW - 460 Nm, Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | 8719493249026 |
|---|---|
| Unit of measure | EA |
| Weight | 11000 g |
| Dimensions | 561 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
BPA000182915

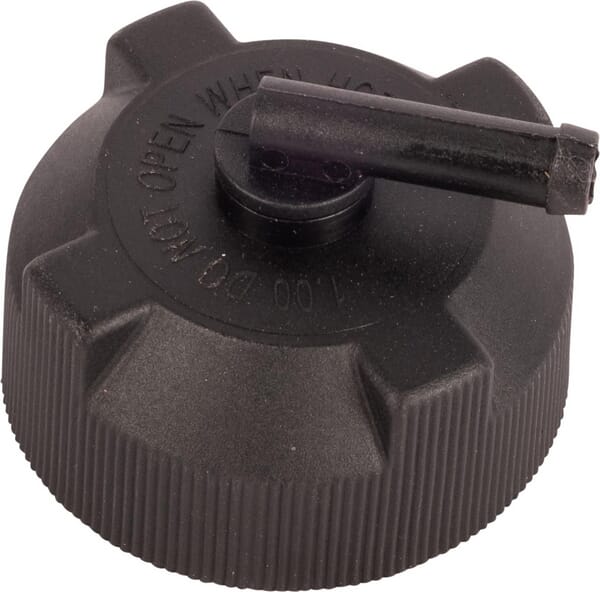

Kramp Radiator cap 82022744N
£13.78 excl.
£16.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000304411

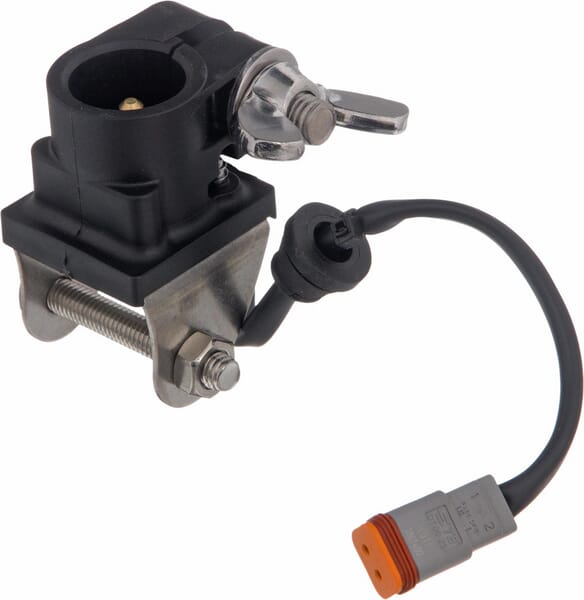

Kramp Tube clamp adapter with Deutsch connector LA10041
£20.31 excl.
£24.37 incl.
In stock
Expected to ship on Monday 21 September
BPA000308611
Kramp Lower link ball with guide cone Cat.2/3 diameter 37/56x11mm LA956223SKR
£9.85 excl.
£11.82 incl.
In stock
Expected to ship on Monday 21 September
BPA000204235

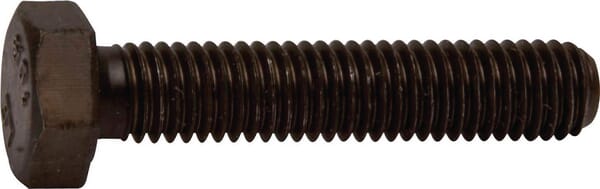

Kramp Hexagon head bolt DIN961 M12x1.50x35 10.9 961121535109B
£0.61 excl.
£0.73 incl.
In stock
Expected to ship on Monday 21 September
BPA000204122
Kramp Hexagon head bolt DIN960 M18x1.50x70 steel zinc-plated 8.8 960181570
£2.31 excl.
£2.77 incl.
In stock
Expected to ship on Monday 21 September
BPA000320871

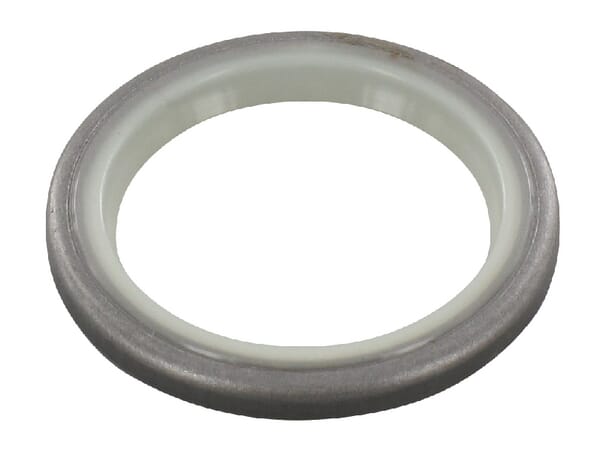

Kramp Pin seal MCWI8010010
