£134.03
excl. VAT
£160.84 incl. VAT
£160.84
incl. VAT
£134.03 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

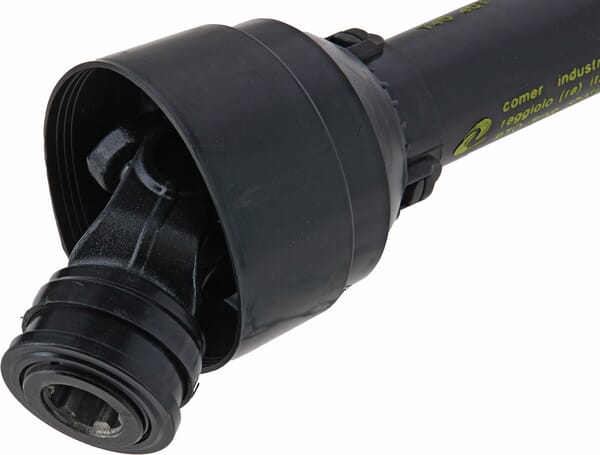

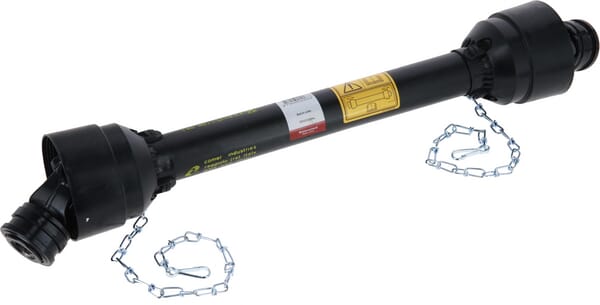

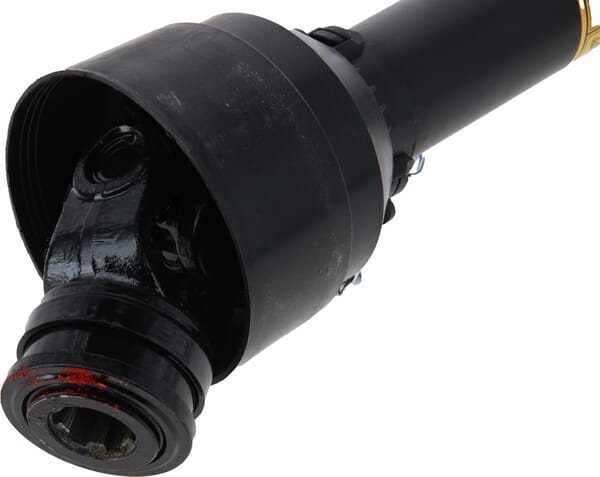

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 710 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 26 kW - 460 Nm, Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | 8719493249033 |
|---|---|
| Unit of measure | EA |
| Weight | 11671 g |
| Dimensions | 940 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000306416

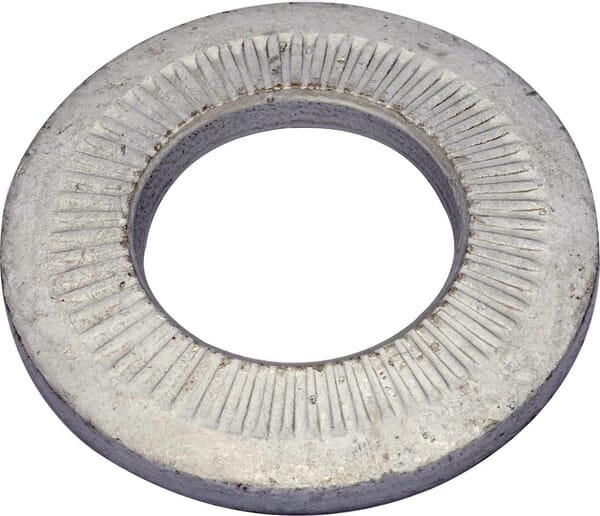

Kramp Lock washer M14 KS-M ZF (50x) KSMZFM14
£0.80 excl.
£0.96 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000119703
Kramp Circlip internal 29x1.2mm DIN472 Stainless steel 47229RVS
£1.02 excl.
£1.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000320876

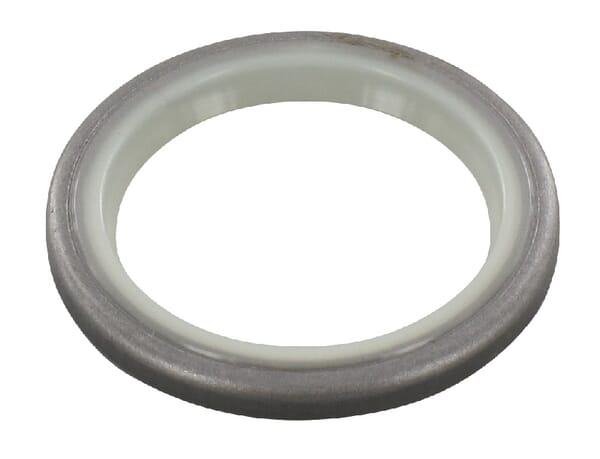

Kramp Pin seal MCWI901007
£16.97 excl.
£20.36 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250079

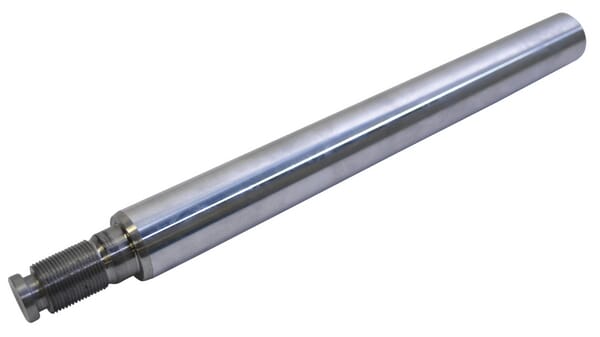

Kramp Rod 20 stroke 500 D40 L=636 DS3902006030500
£39.66 excl.
£47.59 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000356262
Kramp Push-in fitting 8 mm straight SC8NSF
£8.10 excl.
£9.72 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000326819

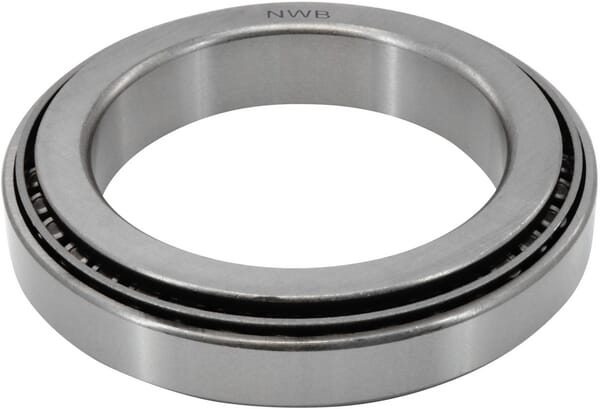

Kramp Taper Roller Bearing NWB9110
