£174.39
excl. VAT
£209.27 incl. VAT
£209.27
incl. VAT
£174.39 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

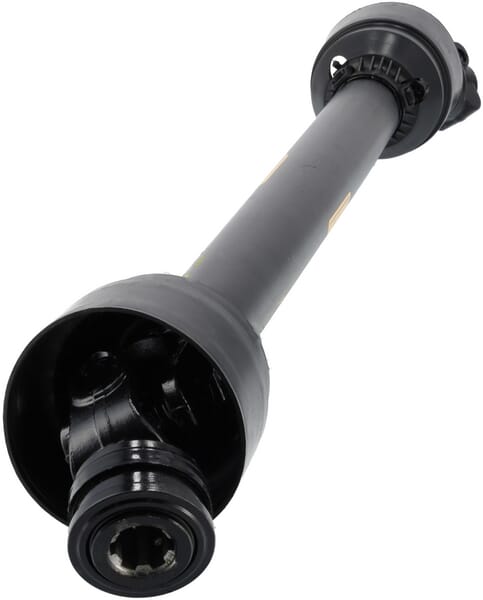

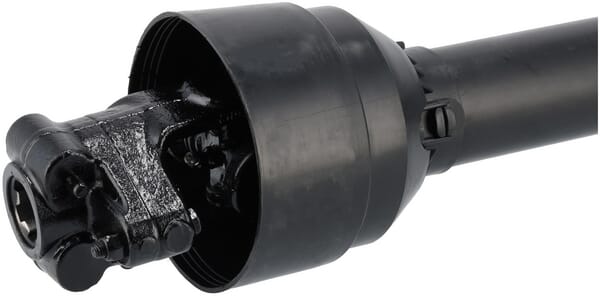

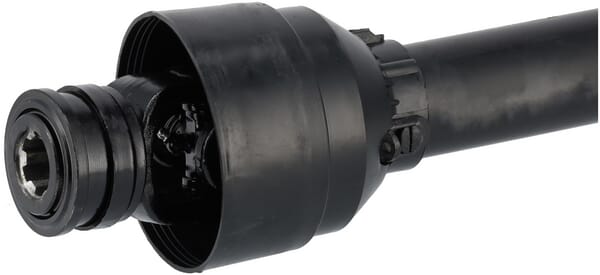

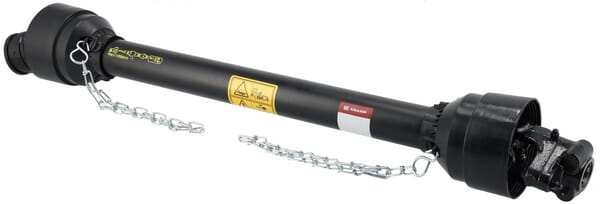

Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | B02 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 860 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 1700 N·m |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, Slurry tankers, fertiliser spreaders, manure spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 26 kW - 460 Nm, Max. dynamic capacity 1000 rpm - 40 kW - 380 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | 8719493249064 |
|---|---|
| Unit of measure | EA |
| Weight | 13308 g |
| Dimensions | 1081 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000137452
Kramp Oil seal 52x75x15mm type:CC DIN 3760 1x 527515CCP001
£5.80 excl.
£6.96 incl.
In stock
Expected to ship on Thursday 24 September
BPA000121481
Kramp Oil seal 47x70x10mm type:CC DIN 3760 1x 477010CCP001
£2.70 excl.
£3.24 incl.
In stock
Expected to ship on Thursday 24 September
BPA000330329
Kramp O-ring 59.99x2.62mm 75 shore Viton OR5999262VP001
£3.17 excl.
£3.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000020818
Kramp Paint RAL 1003 signal yellow 1L 100308KR
£16.42 excl.
£19.70 incl.
In stock
Expected to ship on Thursday 24 September
BPA000241376

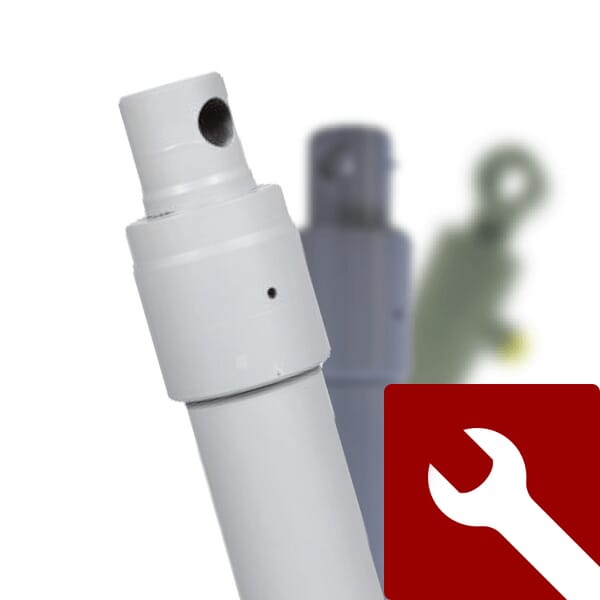

Kramp Cylinder - Configurator+ CFCY8673SP50DW02
