£234.63
excl. VAT
£281.56 incl. VAT
£281.56
incl. VAT
£234.63 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

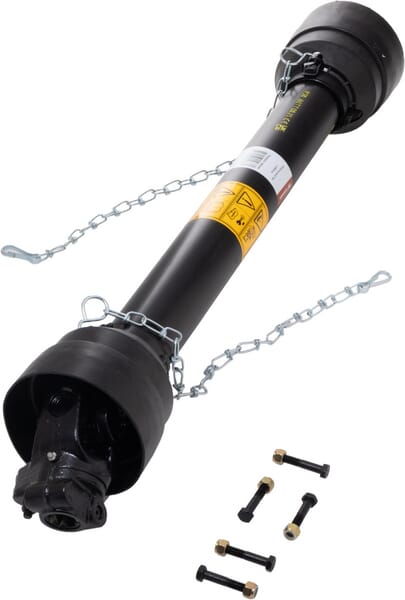

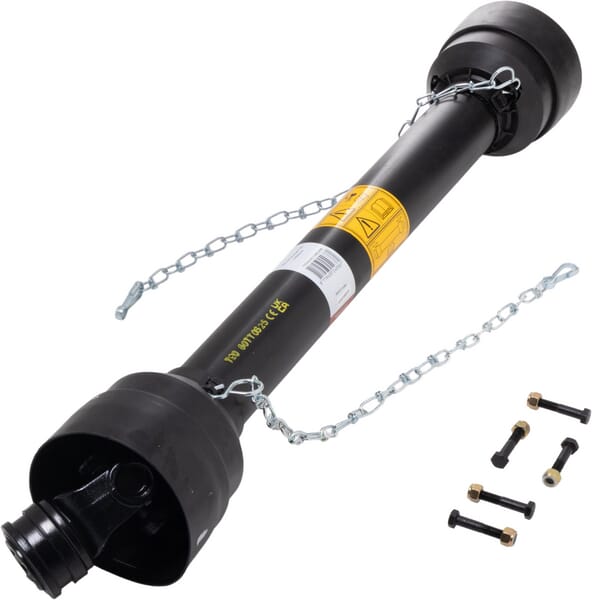

Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | B02 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 80 mm |
| Cross joint length by tractor side | 80 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |
| Length | 860 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2100 N·m |
| Max dynamic torque | 1050 N·m |
| Outer tube large outside diameter | 51.6 mm |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 54 kW |
| Power 540 rpm | 35 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, manure spreaders, mowers, harvesting machenery etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 35 kW - 620 Nm, Max. dynamic capacity 1000 rpm - 54 kW - 520 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T50 |
| Unit | Each |
Logistics
| EAN | 8719493249361 |
|---|---|
| Unit of measure | EA |
| Weight | 15745 g |
| Dimensions | 1150 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
BPA000141584

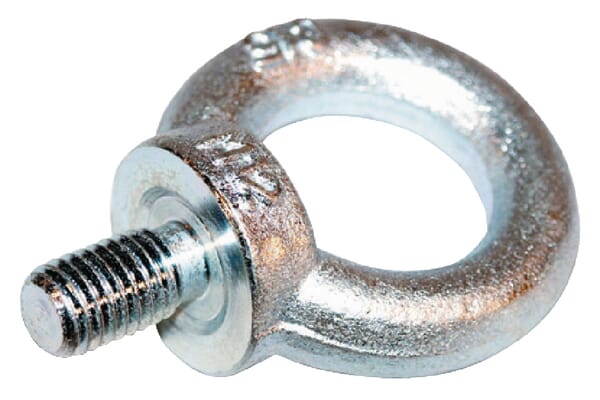

Kramp Eye bolt M36 58036
£37.17 excl.
£44.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000138267
Kramp Adaptor 544064901KR
£5.70 excl.
£6.84 incl.
In stock
Expected to ship on Monday 21 September
BPA000097517
Kramp Oil seal 37x58x13mm type:DB DIN 3760 1x 375813DBP001
£4.55 excl.
£5.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000331379
Kramp O-ring 94.5x3mm 75 shore Viton OR94503VP001
£4.88 excl.
£5.86 incl.
In stock
Expected to ship on Monday 21 September
BPA000109047

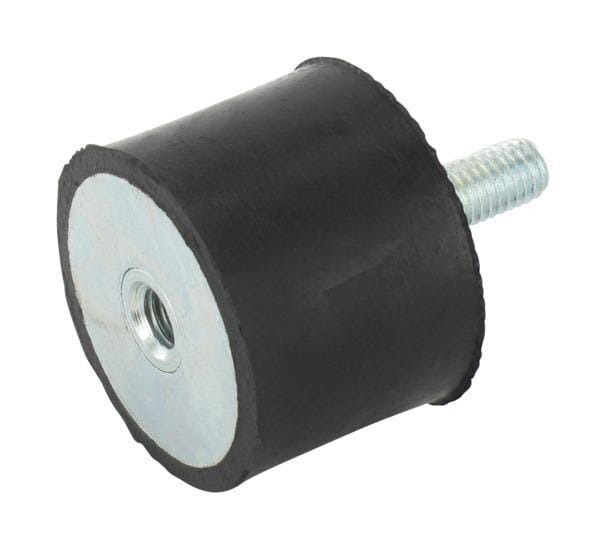

Kramp Vibration damper TYPE B 4020B55
£4.10 excl.
£4.92 incl.
In stock
Expected to ship on Monday 21 September
BPA000357792
Kramp Sprocket Simplex 23 hardened teeth 1/2" chain 08 B-1 SE1223GH
£8.91 excl.
£10.69 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000346388

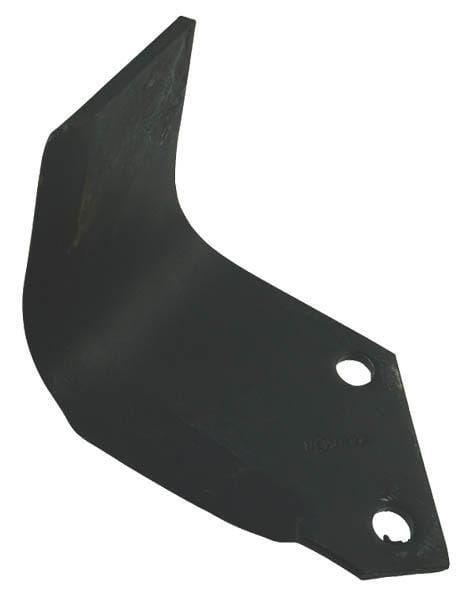

Non Original Rotovator blade LH 200x140x105mm 8mm thick suitable for Krone RB1072690
