£258.00
excl. VAT
£309.60 incl. VAT
£309.60
incl. VAT
£258.00 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

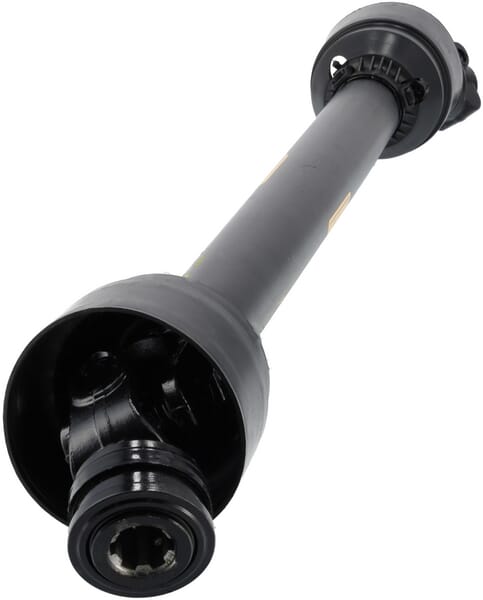

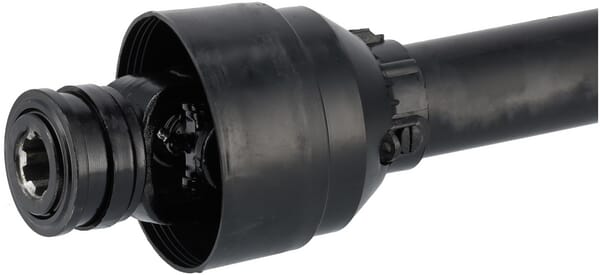

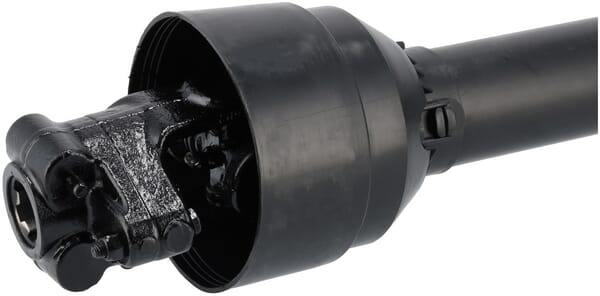

Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | B02 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 92 mm |
| Cross joint length by tractor side | 92 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |

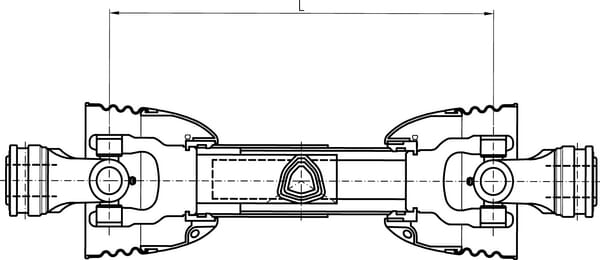

| LLength | 1010 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2500 N·m |
| Max dynamic torque | 1450 N·m |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for manure spreaders, mowers, harvesting machenery, soil cultivation machines etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 47 kW - 830 Nm, Max. dynamic capacity 1000 rpm - 74 kW - 710 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T60 |
| Unit | Each |
Logistics
| EAN | 8719493249651 |
|---|---|
| Unit of measure | EA |
| Weight | 21174 g |
| Dimensions | 1270 × 171 × 170 mm |
| Dangerous goods | No |
You might also like
BPA000202386

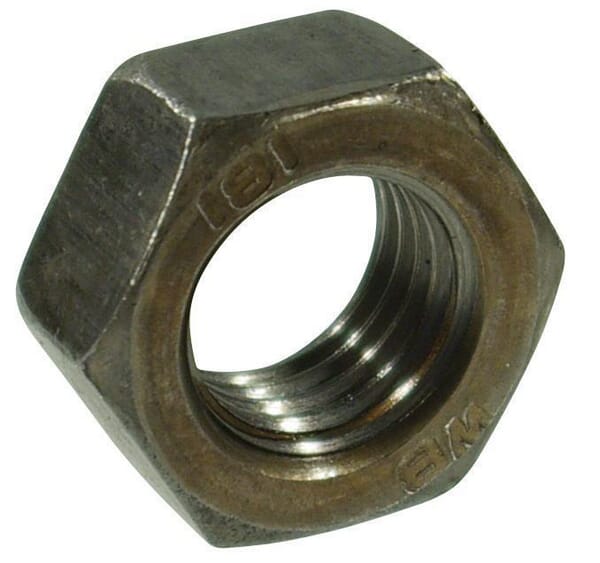

Kramp Hexagon nut DIN934 M22x1.50 steel Class 8 9342215B
£2.14 excl.
£2.57 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250619

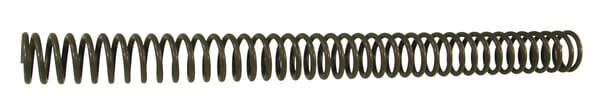

Kramp Compression spring 3x20x500 DV320500
£6.00 excl.
£7.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000375744
Kramp Cable tie 4.5x370mm, silver, 100pcs TR0145370RVS
£3.25 excl.
£3.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000204778

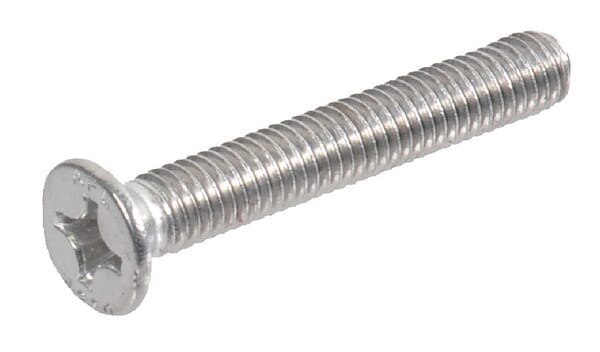

Kramp Countersunk screw DIN965 M8x20 stainless steel A2 965820RVS
