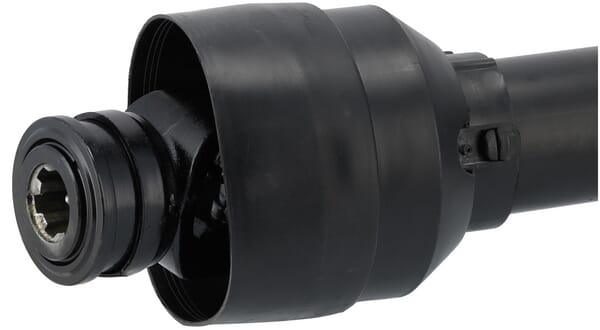

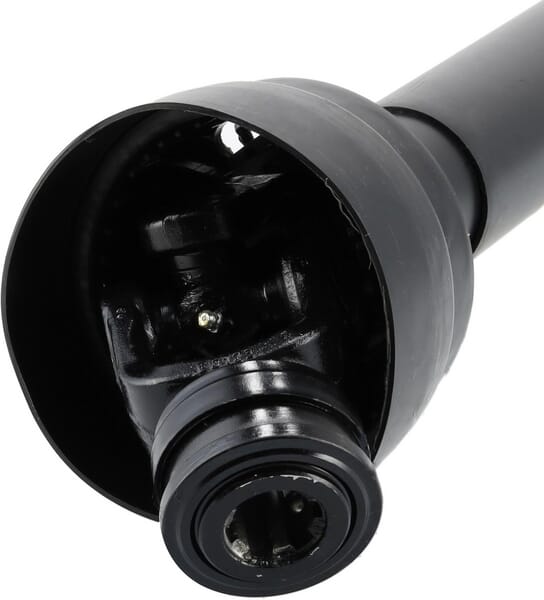

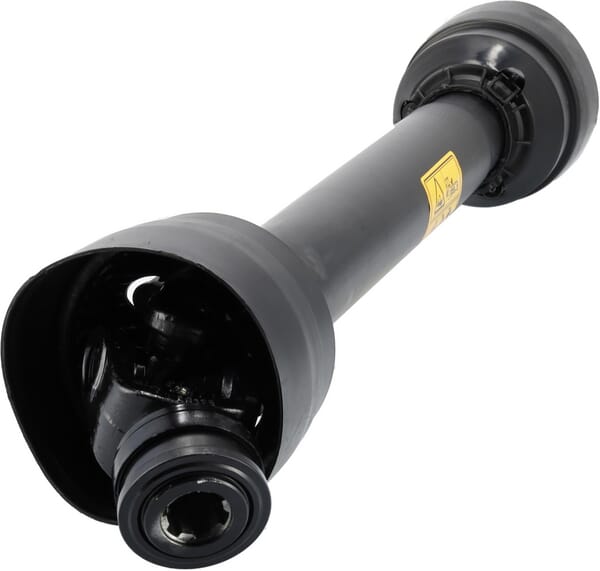

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 92 mm |
| Cross joint length by tractor side | 92 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 1450 N·m |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for manure spreaders, mowers, harvesting machenery, soil cultivation machines etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 47 kW - 830 Nm, Max. dynamic capacity 1000 rpm - 74 kW - 710 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T60 |
| Unit | Each |
Logistics
| EAN | 8719493249798 |
|---|---|
| Unit of measure | EA |
| Weight | 21280 g |
| Dimensions | 1460 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
BPA000056110
Kramp Knob 1682623M1N
£2.44 excl.
£2.93 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000375949
Kramp Cable tie 3.6x200mm, white, 100Pcs TRB36200WHI
£2.07 excl.
£2.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000197029
Kramp Hexagon socket head cap screw DIN912 M5x45 steel 12.9 912545129B
£0.21 excl.
£0.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000272149
Kramp V-belt Z30K FGP420070
£4.24 excl.
£5.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000365279

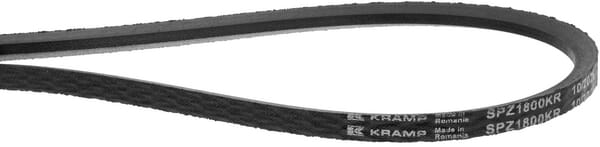

Kramp V-belt SPZ1800 SPZ1800KR
