£276.47
excl. VAT
£331.76 incl. VAT
£331.76
incl. VAT
£276.47 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

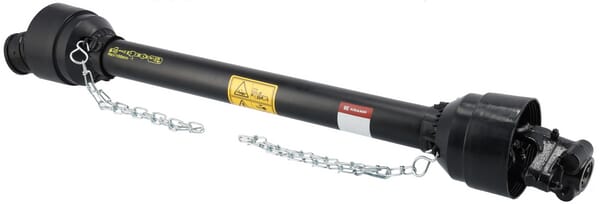

| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | B02 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 92 mm |
| Cross joint length by tractor side | 92 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |
| Length | 1610 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2500 N·m |
| Max dynamic torque | 1450 N·m |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for manure spreaders, mowers, harvesting machenery, soil cultivation machines etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 47 kW - 830 Nm, Max. dynamic capacity 1000 rpm - 74 kW - 710 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T60 |
| Unit | Each |
Logistics
| EAN | 8719493481426 |
|---|---|
| Unit of measure | EA |
| Weight | 15850 g |
| Dimensions | 1610 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000187607

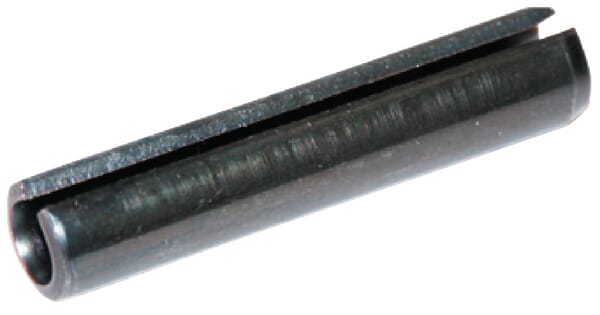

Kramp Roll pin, heavy duty 7x10mm ISO8752 8752710
£0.19 excl.
£0.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000330807
Kramp O-ring 74x4mm 90 shore OR74490P001
£3.08 excl.
£3.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000329504

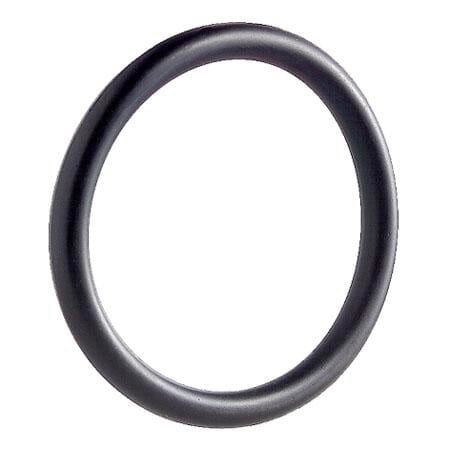

Kramp O-ring 208.92x5.33mm 70 shore OR20892533P001
£2.60 excl.
£3.12 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000328792
Kramp O-ring 146x3mm 70 shore OR1463P001
£2.28 excl.
£2.74 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000372123

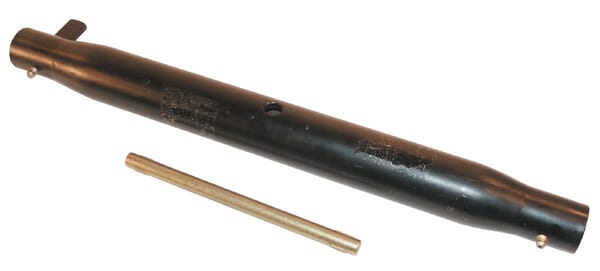

Kramp Toplink tube M30 640 mm TL64030KR
