£192.21
excl. VAT
£230.65 incl. VAT
£230.65
incl. VAT
£192.21 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

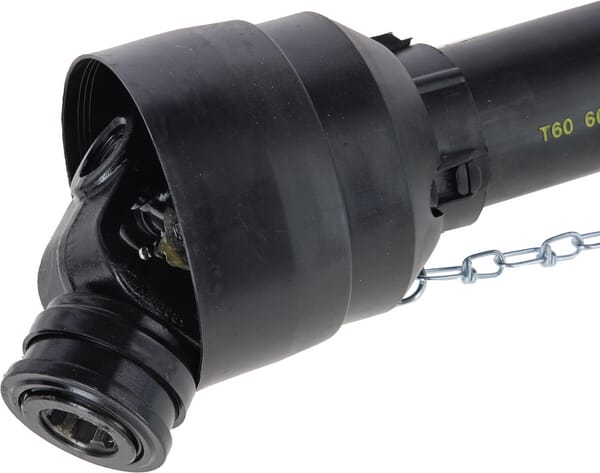

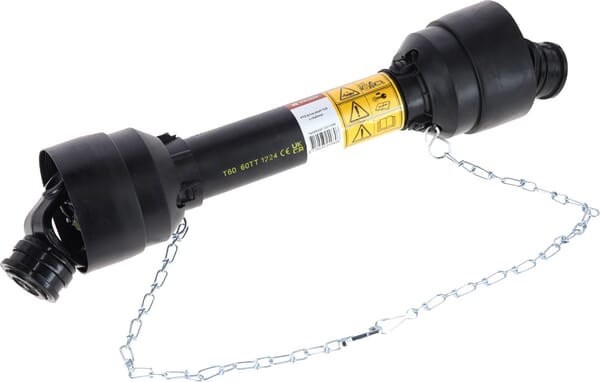

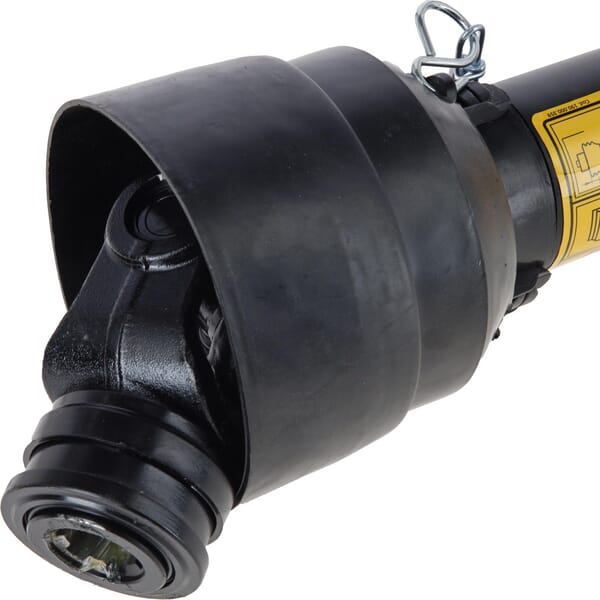

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 92 mm |
| Cross joint length by tractor side | 92 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |
| Length | 560 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 1450 N·m |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for manure spreaders, mowers, harvesting machenery, soil cultivation machines etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 47 kW - 830 Nm, Max. dynamic capacity 1000 rpm - 74 kW - 710 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T60 |
| Unit | Each |
Logistics
| EAN | 8719493249606 |
|---|---|
| Unit of measure | EA |
| Weight | 14750 g |
| Dimensions | 820 × 165 × 165 mm |
| Dangerous goods | No |
You might also like
BPA000341034
Kramp Pipe nipple PNM518P
£0.87 excl.
£1.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000330900
Kramp O-ring 7.65x1.63mm 70 shore 10x OR765163P010
£1.43 excl.
£1.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000236551
Kramp Rotary brush 500/110 poly yellow BR500110P
£9.99 excl.
£11.99 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000269381
Kramp Elbow female/male zn. 1/4" FG9214
£1.34 excl.
£1.61 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000301734

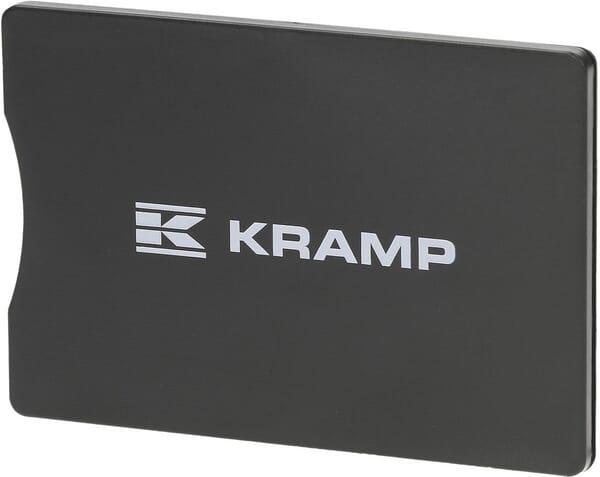

Kramp Credit card protector KRA00900019018
