£207.83
excl. VAT
£249.40 incl. VAT
£249.40
incl. VAT
£207.83 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 92 mm |
| Cross joint length by tractor side | 92 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 1450 N·m |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for manure spreaders, mowers, harvesting machenery, soil cultivation machines etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 47 kW - 830 Nm, Max. dynamic capacity 1000 rpm - 74 kW - 710 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T60 |
| Unit | Each |
Logistics
| EAN | 8719493481402 |
|---|---|
| Unit of measure | EA |
| Weight | 17620 g |
| Dimensions | 1100 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000331348
Kramp O-ring 93x1.5mm 70 shore OR93150P001
£1.53 excl.
£1.84 incl.
In stock
Expected to ship on Monday 21 September
BPA000046411

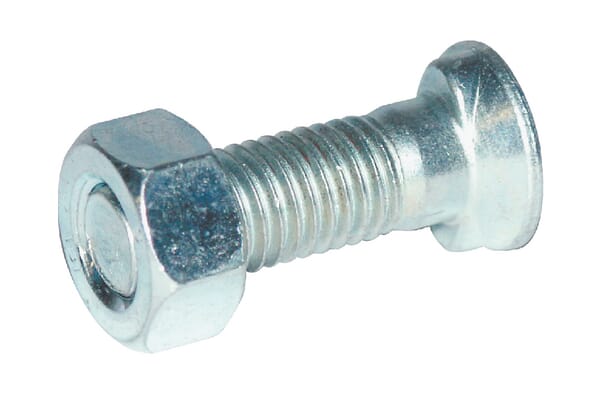

Kramp Plough bolt M14x45 oval 2 nib 10.9 1445CO109P050
£1.09 excl.
£1.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000334562
Kramp O-ring 132.72x5.33mm 70 shore OR13272533P001
£2.11 excl.
£2.53 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000285968
Kramp HP hose blue 15m DN8 400bar M22x1,5F HD999815
£153.16 excl.
£183.79 incl.
In stock
Expected to ship on Friday 18 September
BPA000270092

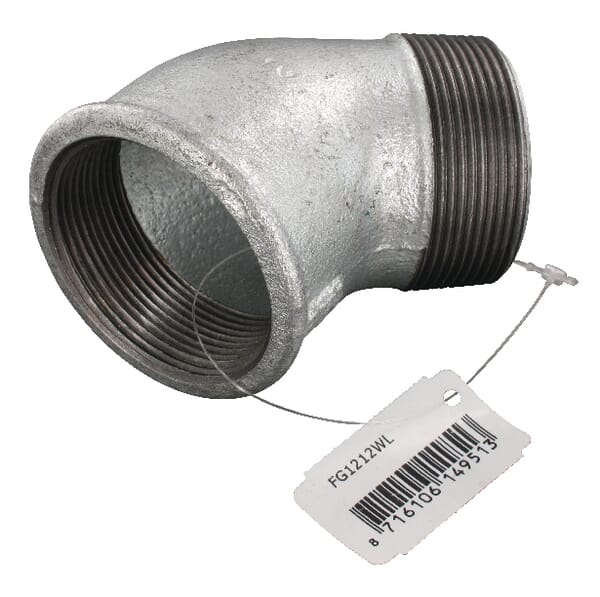

Kramp Elbow 45° female/male zn. 2" FG1212WL
