£10.63
excl. VAT
£12.76 incl. VAT
£12.76
incl. VAT
£10.63 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| CWidth | 15 mm |
|---|---|

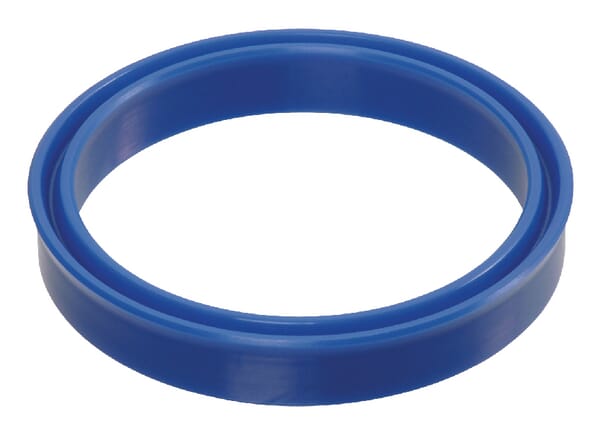

| Long description | SA-UN series rod seals are suitable for use as both rod seals and piston seals. |
| Material | Polyurethane |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Ød1Inside diameter | 90 mm |
| ØD1Outside diameter | 115 mm |

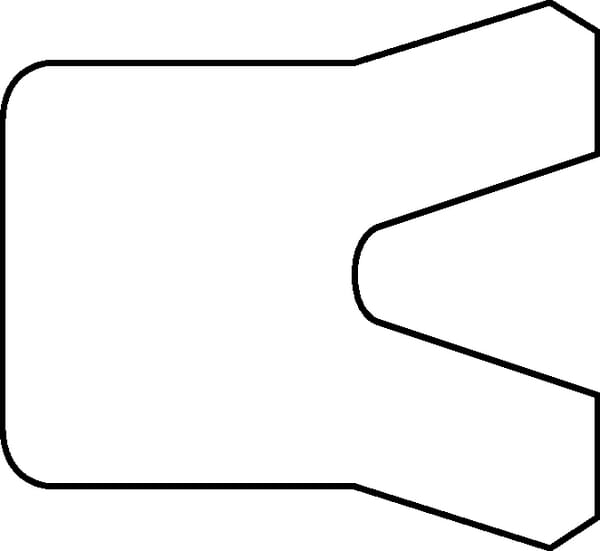

| Product details | Good fit and seal, Type 605 and 610 have a perfect and stable seal due to additional lip at the top of the cuff, Types 605 and 663 have an asymmetrical profile (the inner lip is shorter than the outer), These types (605 and 663) are therefore only suitable for use as piston rod seals, Type 601 and 610 have a symmetrical profile (both inner and outer sealing lips are the same height), These types (601 and 610) are therefore only suitable for use as piston rod seals, Double-acting cylinders, Single-acting cylinders |
| Pros | Very flexible, Very wear resistant, Low friction, Easy installation |
| SGroove width | 16 mm |
| Type | Rod seal, Piston seal |
| Type code | 600 |
| Unit | Each |
Logistics
| EAN | 8719607301701 |
|---|---|
| Unit of measure | EA |
| Weight | 58 g |
| Dimensions | 117 × 117 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000198397
Kramp Hex head bolt UNC 3/4"x6" DIN931 steel zinc-plated 8.8 931346UNC
£8.61 excl.
£10.33 incl.
In stock
Expected to ship on Monday 21 September
BPA000302362

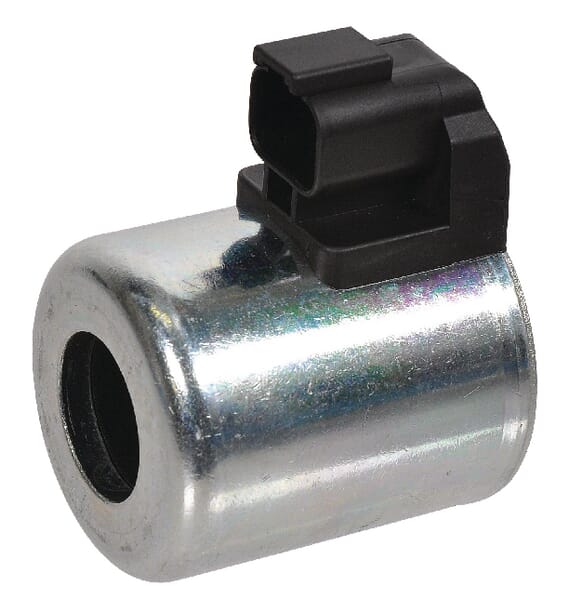

Kramp Coil for KREV-03 24VDC Deutsch KREV903024D
£47.59 excl.
£57.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000362186

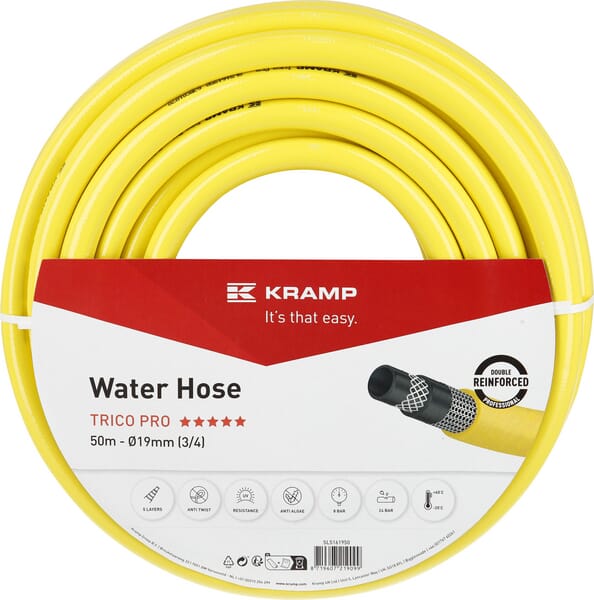

Kramp Hose Trico Pro II 3/4" 50m SL5161950
£93.20 excl.
£111.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000258611

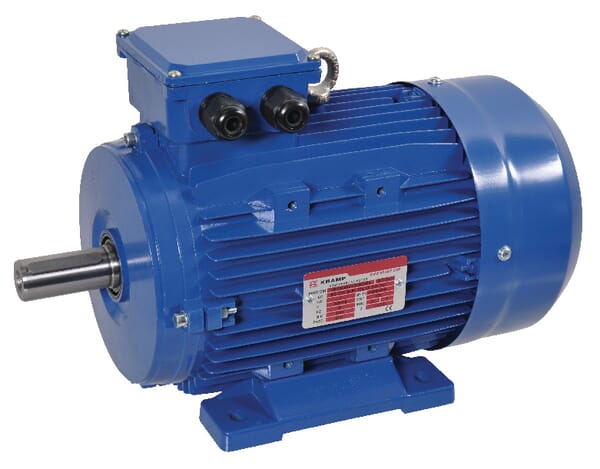

Kramp Electric motor 2.2 kW EM112M6B3300IE3AKR
