£11.10
excl. VAT
£13.32 incl. VAT
£13.32
incl. VAT
£11.10 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| CWidth | 15 mm |
|---|---|

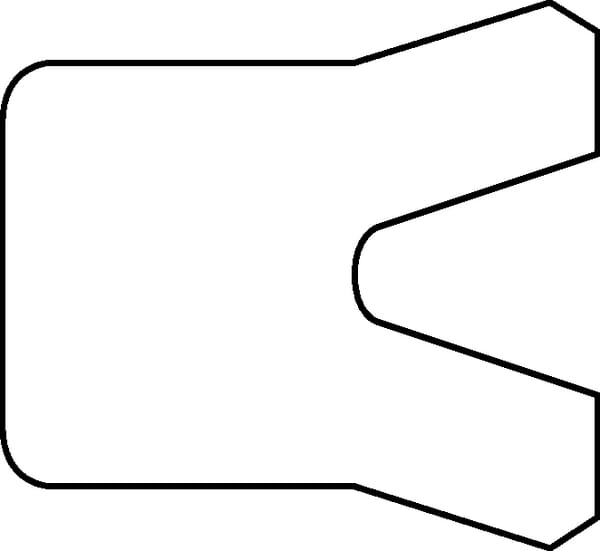

| Long description | SA-UN series rod seals are suitable for use as both rod seals and piston seals. |
| Material | Polyurethane |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Ød1Inside diameter | 100 mm |
| ØD1Outside diameter | 125 mm |
| Product details | Good fit and seal, Type 605 and 610 have a perfect and stable seal due to additional lip at the top of the cuff, Types 605 and 663 have an asymmetrical profile (the inner lip is shorter than the outer), These types (605 and 663) are therefore only suitable for use as piston rod seals, Type 601 and 610 have a symmetrical profile (both inner and outer sealing lips are the same height), These types (601 and 610) are therefore only suitable for use as piston rod seals, Double-acting cylinders, Single-acting cylinders |
| Pros | Very flexible, Very wear resistant, Low friction, Easy installation |
| SGroove width | 16 mm |
| Type | Rod seal, Piston seal |
| Type code | 600 |
| Unit | Each |
Logistics
| EAN | 8719607302159 |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 128 × 128 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000403551

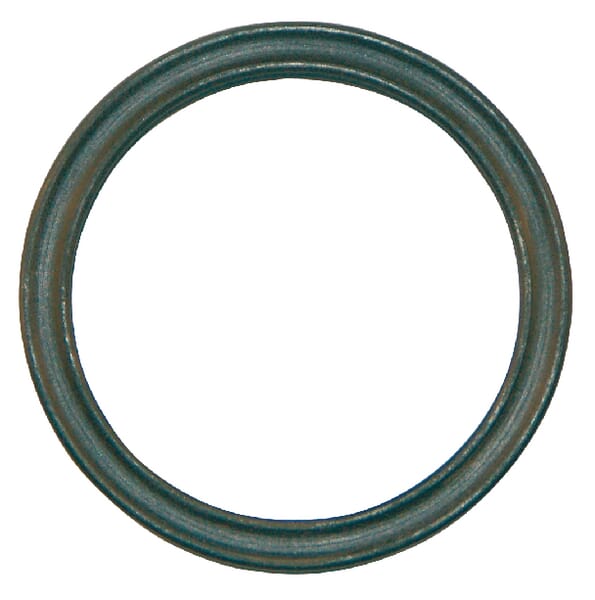

Kramp X-ring 34.52x3.53 70 shore 10x XR3452353P010
£10.62 excl.
£12.74 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000173783
Kramp Self tapping screw 4.8x19mm PH2 pan head, DIN 7504 7504N4819P200
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000013825

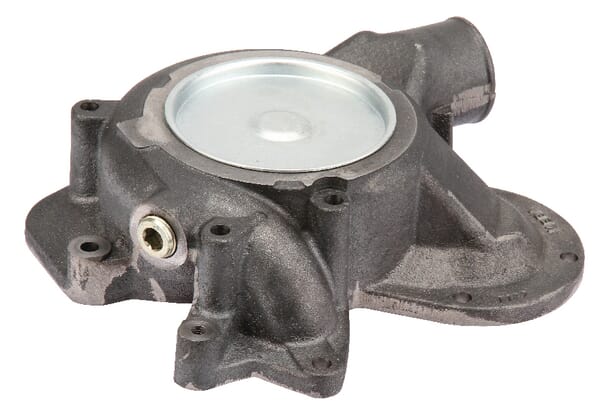

Kramp Water pump 0201314KR
£271.00 excl.
£325.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000202484

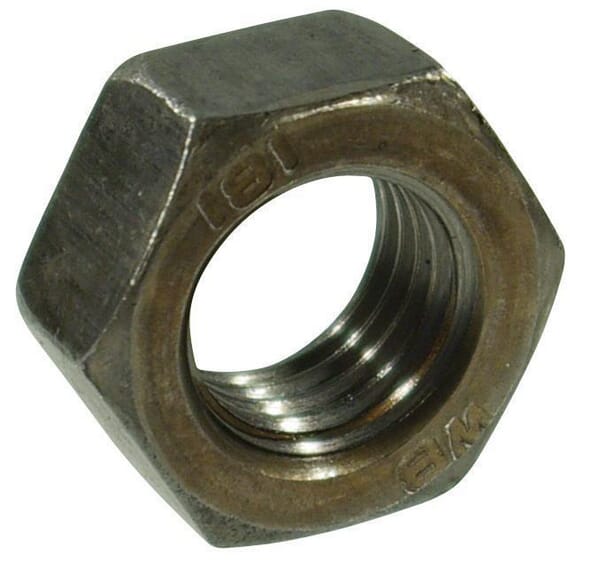

Kramp Hexagon nut DIN934 M4x0.70 steel Class 10 934410B
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000320785
Kramp Milk coupling gasket DN10 MCG10EPDM
£1.51 excl.
£1.81 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000114729

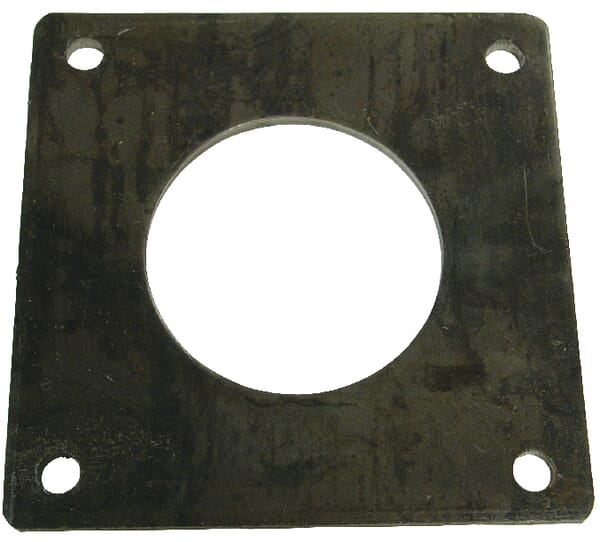

Kramp Square flange 4 bolt 4" 4300001Z
