£85.87
excl. VAT
£103.04 incl. VAT
£103.04
incl. VAT
£85.87 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

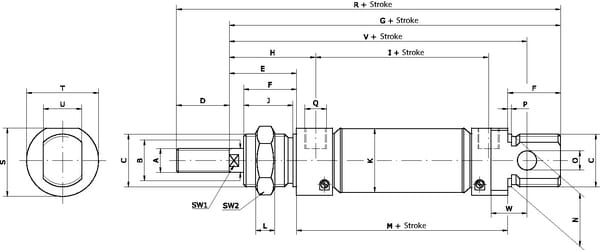

| AMounting thread diameter - rod connection | M10 |
|---|---|
| BRod diameter | 10 mm |
| CETOP Code | RP52P |
| CHousing front mounting holes thread diameter | M22 |
| Cylinder head material | Die-cast alloy |
| Cylinder inside material | Bronze |
| Cylinder material | Stainless steel 304 |
| Damping type | Pneumatic - both sides - adjustable |
| ECylinder head length | 28 mm |
| FMounting head length | 22 mm |
| Housing front mounting holes thread pitch | 1.50 mm |
| ISO standard | 228/1, 6432 |
| KOutside diameter | 26.5 mm |
| LCylinder nut width | 8 mm |
| Magnetic | Yes |
| Max. working pressure | 10 BAR |
| M Cylinder length without rod and head | 68 mm |
| Min. length without rod connection length | 118 mm |
| Min. working pressure | 1 BAR |
| Mounting diameter (width) - cylinder connection | 22 mm |
| Mounting thread diameter - cylinder connection | 1/8 Inch |
| Mounting thread pitch - rod connection | 1.25 mm |
| Mounting thread type - cylinder connection | G |
| Mounting thread type - male/female - rod connection | Male |
| Mounting thread type - rod connection | Metric |
| Mounting type - cylinder side connection | Thread |
| NMounting length - rod connection | 22 mm |
| OBore diameter | 25 mm |
| Piston material | Brass |
| R Min. length | 300 mm |
| Rod material | Stainless steel 303 |
| Sealing material | Polyurethane |
| Series | 6432 |
| Stroke | 160 mm |
| SW1Rod wrench size | 9.0 mm |
| SW2Cylinder nut wrench size | 27.0 mm |
| TCylinder head flange diameter | 30 mm |
| Theoretical force at 6 bar pressure - advancing | 265 N |
| Theoretical force at 6 bar pressure - retracting | 218 N |
| Type | Double acting |
| Unit | Each |
| V Min. mounting holes distance | 104 mm |
| WMounting hole center to head end distance | 12 mm |
Compatible accessories
Parts and components that work with this product.
CF2025PN
Kramp Clevis foot CF2025PN
£9.18 excl.
£11.02 incl.
FA2025PN

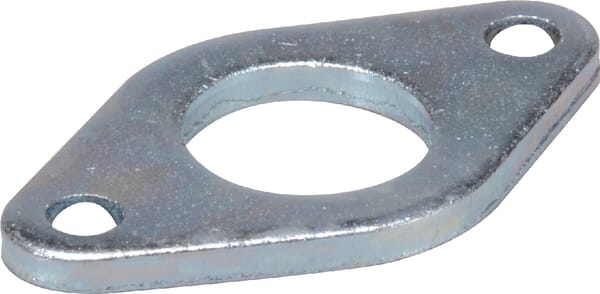

Kramp Flange mounting FA2025PN
£1.99 excl.
£2.39 incl.
LB2025

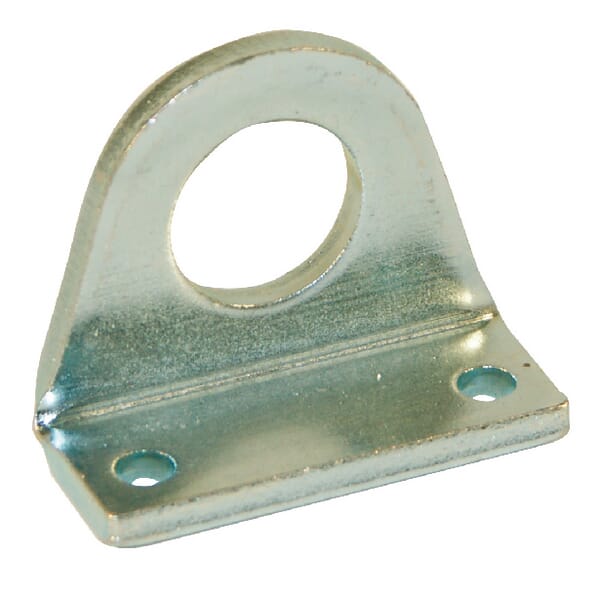

Kramp Foot mounting LB2025
£2.69 excl.
£3.23 incl.
PSM25

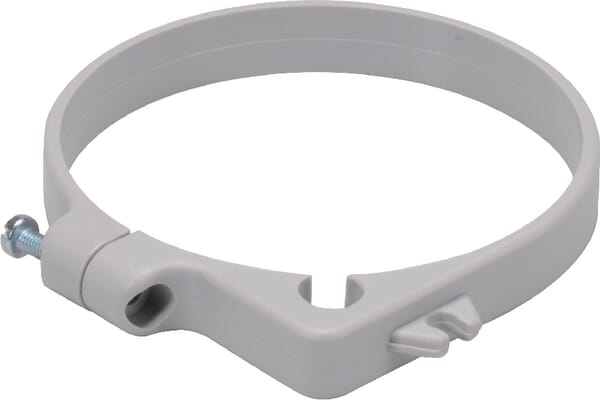

Kramp Proximity switch mounting PSM25
£10.11 excl.
£12.13 incl.
PSMR25

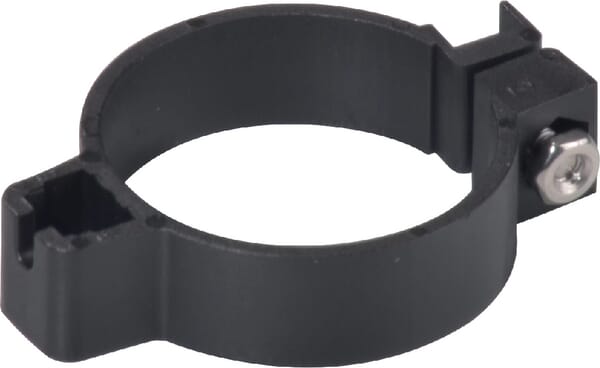

Kramp Proximity switch mounting PSMR25
£5.32 excl.
£6.38 incl.
RES10125
Kramp Rod eye, spherical M10x1,25 RES10125
£15.65 excl.
£18.78 incl.
SARC10125
Kramp Flexo rod coupler M10x1,25 SARC10125
£29.46 excl.
£35.35 incl.
SENSR8C5

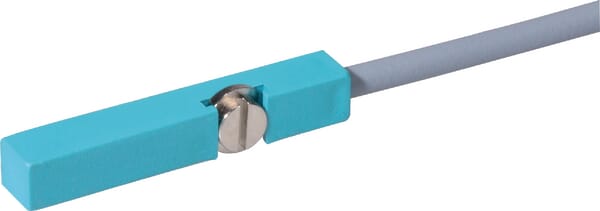

Kramp Reed switch with cable SENSR8C5
£34.80 excl.
£41.76 incl.
SENSR8M8

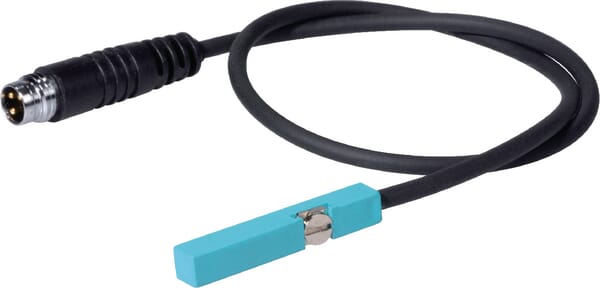

Kramp Reed switch with plug SENSR8M8
£26.98 excl.
£32.38 incl.
SENSRCC5

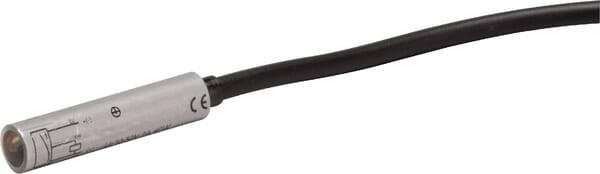

Kramp Reed switch with cable SENSRCC5
£25.40 excl.
£30.48 incl.
SENSRCM8
Kramp Reed switch with plug SENSRCM8
£26.74 excl.
£32.09 incl.
SENST8C5
Kramp Sensor with cable SENST8C5
£48.75 excl.
£58.50 incl.
SENST8M8
Kramp Sensor with plug SENST8M8
£38.72 excl.
£46.46 incl.
SENSTCC5

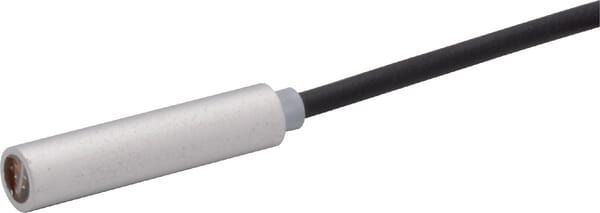

Kramp Sensor with cable SENSTCC5
£55.23 excl.
£66.28 incl.
YCM10125
Kramp Rod clevis M10x1,25 YCM10125
£3.61 excl.
£4.33 incl.
Logistics
| EAN | 8716106692552 |
|---|---|
| Unit of measure | EA |
| Weight | 423 g |
| Dimensions | 314 × 32 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000375655
Kramp Work pos oil pressure sensor TPAK4ZAKIT
£97.37 excl.
£116.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000189956
Kramp Hydraulic Motor Sprocket 84459115N
£108.57 excl.
£130.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000364989
Kramp Wood screw 5x40mm TX20 countersunk, stainless steel SPST540RVSP001
£0.63 excl.
£0.76 incl.
In stock
Expected to ship on Friday 18 September
BPA000137982

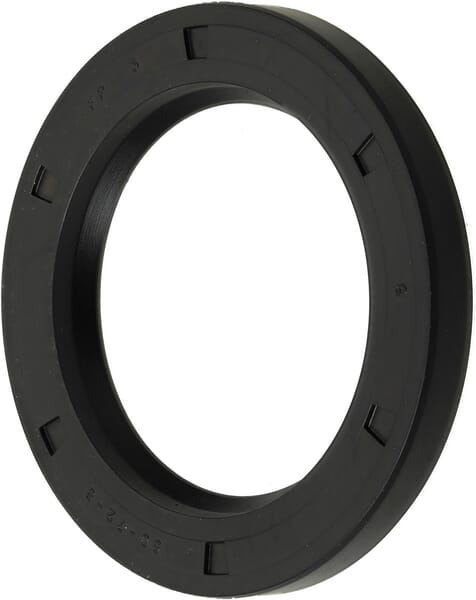

Kramp Oil seal 2-1/8x3-1/2x1/2" type:CB DIN 3760 1x 5397889127CBP001
