£650.90
excl. VAT
£781.08 incl. VAT
£781.08
incl. VAT
£650.90 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

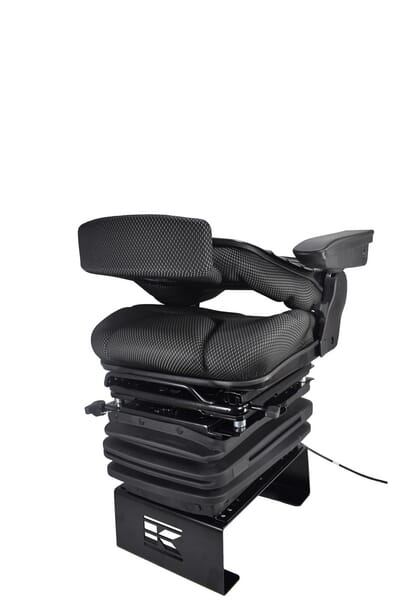

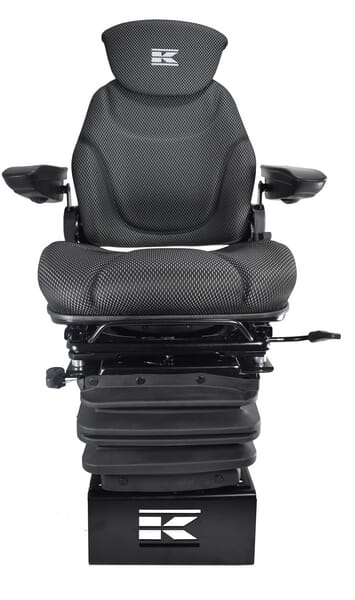

Product details
| Application | Universal |
|---|---|
| Armrests included | Yes |
| Auto user weight adjustment | No |
| Back angle adjustment | 30 ° |

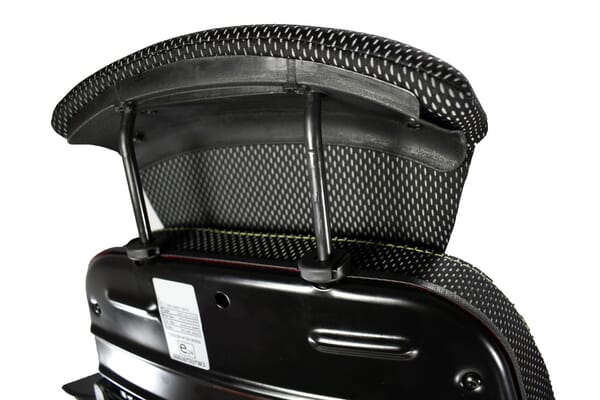

| Backrest extension included | Yes |
| Collection | Kramp luxury seats for tractor and construction equipment., When you need a quality seat at the right price. |
| Contact switch included | No |

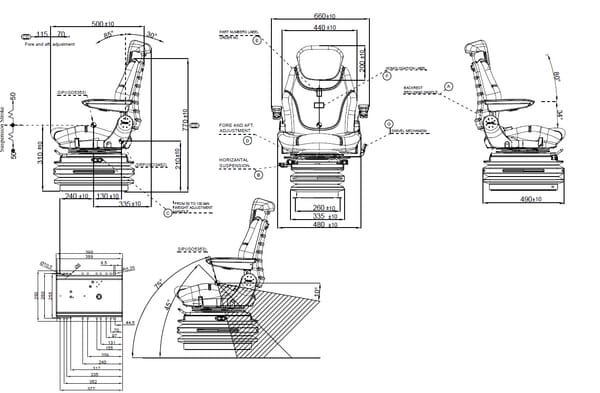

| Depth | 500 mm |
| Extra info | Swivel mechanism (360°), With 12V 9A built-in compressor, Material: black anthracite fabric |
| Heating kit included | No |
| Height adjustment | 8 cm |

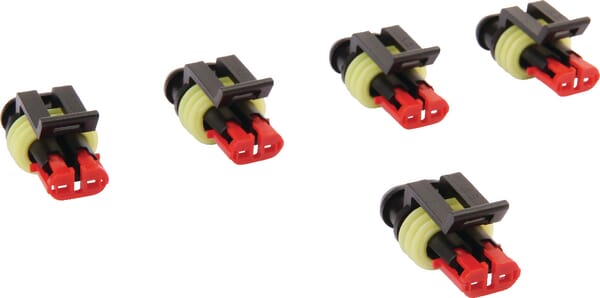

| Includes | Please note that the seat support base K-frame is not included., In addition to connect the seat to the 12V compressor AMP Male plug, the AMP282104 (LA89006KR)connector is required and not included either. |
| Max. working load | 130 kg |
| Min. working load | 50 kg |
| Model | n/a |

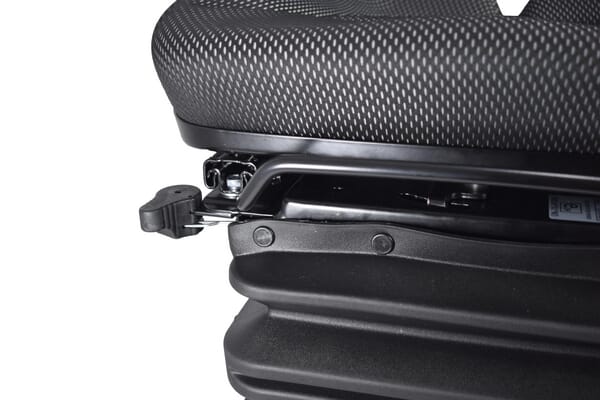

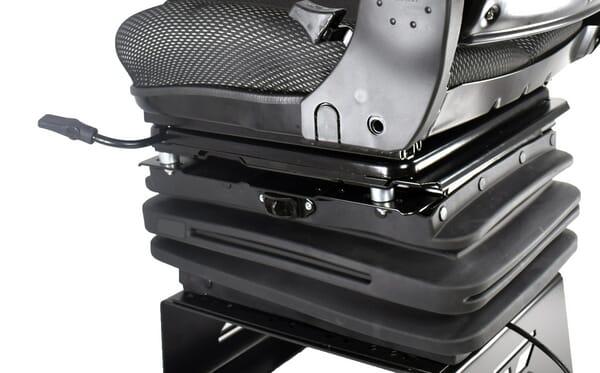

| Product details | 100 mm suspension stroke (air suspension & hydraulic shock absorber), 35 mm horizontal suspension stroke, Forward and backward adjustment of 190 mm with coupled lock, in increments of 15 mm, Manual weight adjustment (50 kg -130 kg), Height adjustment 80 mm, Mechanical lumbar support, Horizontal damper forward/backward movement 35mm, Backrest reclining 85°/30°, EU 1322/2014 – ECE R16.06 |
| Pros | Air suspension, Individual comfort adjustments, Trendy Upholstery, Horizontal damper, High quality components, Affordable price |
| Seatbelt included | No |
| Supply voltage | 12 V |
| Suspension stroke | 10 cm |
| Suspension type | Pneumatic |
| Total height | 770 mm |
| Total length | 500 mm |
| Total width | 630 mm |
| Unit | Each |
| Upholstery colour | Black |
| Upholstery material | Fabric |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719493533729 |
|---|---|
| Unit of measure | EA |
| Weight | 50000 g |
| Dimensions | 620 × 530 × 530 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000363020

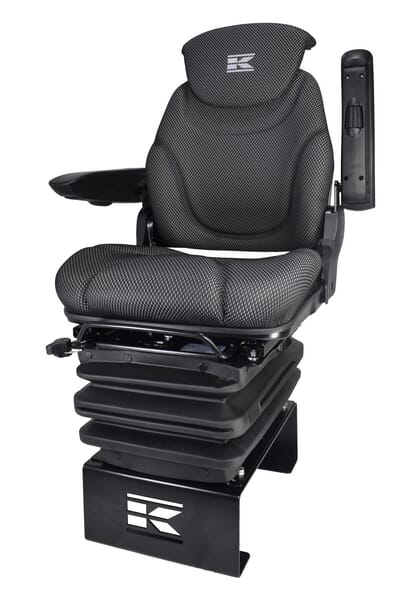

Kramp Seat K-Lux, air sprung, 490mm, 12V, black SKL8202480BB
£567.02 excl.
£680.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000021200

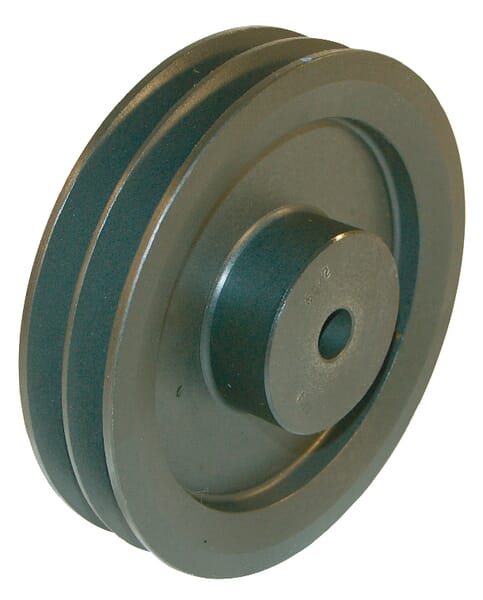

Kramp V-belt pulley 2 groove Z or SPZ diameter 99 mm 095Z2
£22.61 excl.
£27.13 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247707
Kramp Seal kit CSKKUB6872191160
£60.25 excl.
£72.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396781
Kramp Lower link pin Z328230KR
£3.54 excl.
£4.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000396773

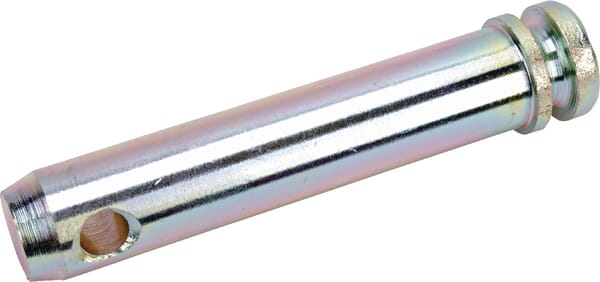

Kramp Pin 28x116mm Cat.2 Z328116KR
