£131.02
excl. VAT
£157.22 incl. VAT
£157.22
incl. VAT
£131.02 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

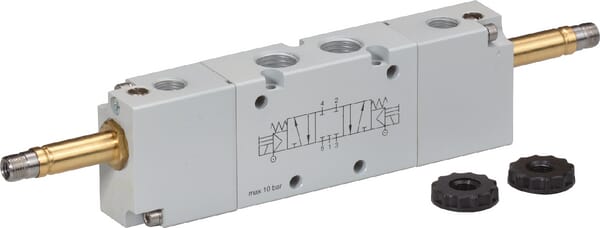

Product details

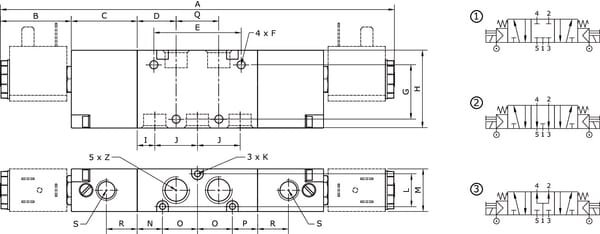

| Actuation | Electromagnetic / pneumatically |
|---|---|
| ALength A | 187.4 mm |
| BLength B | 36.2 mm |
| Bore F | 4.2 mm |
| CLength C | 34 mm |
| Connection | G 1/8 |
| Distance center hole to right side | 10.5 mm |
| Distance mounting holes center to center long side | 10.5 mm |
| Distance mounting holes center to center short side | 6.3 mm |
| Distance mounting holes short side center to center | 16.9 mm |
| DLength D | 15 mm |
| EDistance for locating holes | 31.8 mm |
| GDistance center to center | 23 mm |
| HHeight H | 32 mm |
| Installation | Free |
| JDistance mounting holes center to center | 17.2 mm |
| KBore diameter | 3.1 mm |
| Manual override | Yes |
| Material housing | Anodized aluminium, coated |
| Max. working pressure | 10 BAR |
| MHeight M | 22 mm |
| Mounting type | Through-bore |
| Nominal flow range | 740 l/min |
| ODistance center hole to left side | 13 mm |
| Pilot pressure range | 2 - 10 BAR |
| QCenter to center pressure side | 17 mm |
| RHole center distance | 17.2 mm |
| SBore | M 5 |
| Switching symbol | 1 |
| Type | Spool valve, spring return |
| Type 2 | CC |
| Unit | Each |
| Working pressure min. | 0 BAR |
| ZConnection | G 1/8 BSP |
Logistics
| EAN | 8716106824717 |
|---|---|
| Unit of measure | EA |
| Weight | 246 g |
| Dimensions | 192 × 34 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000324207
Kramp Bearing NWB01371
£40.86 excl.
£49.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000329637
Kramp O-ring 40.64x5.33 90 shore 10x OR406453390P010
£10.89 excl.
£13.07 incl.
In stock
Expected to ship on Thursday 24 September
BPA000321768
Kramp Bearing NWB09103
£46.75 excl.
£56.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000193277
Kramp Coach bolt washer M18x56x4mm, Stainless steel A2 DIN 9021 902118RVS
£1.17 excl.
£1.40 incl.
In stock
Expected to ship on Thursday 24 September
BPA000172873

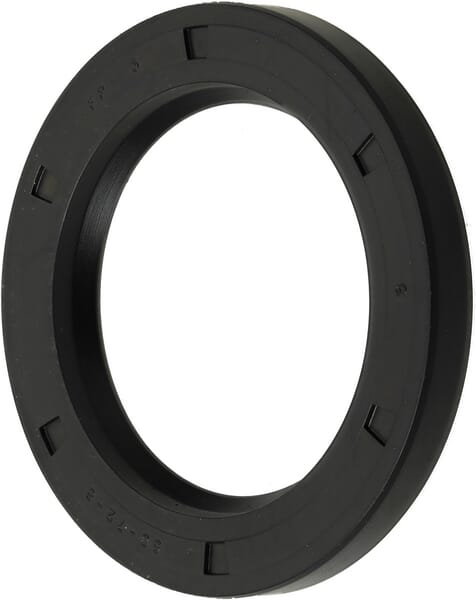

Kramp Oil seal 75x90x7mm type:CC DIN 3760 1x 75907CCP001
