£14.05
excl. VAT
£16.86 incl. VAT
£16.86
incl. VAT
£14.05 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | NOT suitable for chain ASA/DIN 8188 |
|---|---|
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Bore | Yes |
| Bore diameter | 11 mm |
| BWidth | 25 mm |
| Chain size code | 08 B-2 |
| Consists of | Sprocket, No taperlock adjustment bush supplied |
| D1Pitch diameter | 81.19 mm |
| D2Outside diameter | 86 mm |
| D3Hub diameter | 67 mm |
| Details | With taperlock bore |
| Hub type | Hub one side |
| Material | Steel C45 |
| Max. drilled bore diameter | 32 mm |
| Number of teeth | 20 |
| Sections distance | 13.92 mm |
| Taperlock type code | 1610 |
| Teeth width | 7 mm |
| Total teeth width | 21 mm |
| Type | Duplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 315 g |
| Dimensions | 85 × 85 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000246869
Kramp Wire hose clamp 113-120 DDK120
£1.52 excl.
£1.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000119658

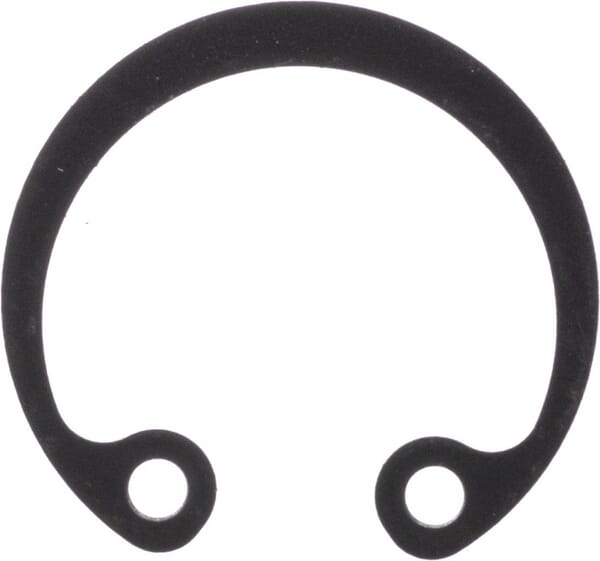

Kramp Circlip internal 17x1mm DIN472 Steel 47217P025
£0.11 excl.
£0.14 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000013701

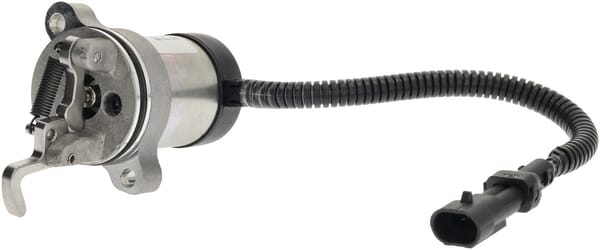

Kramp Fuel shut-off solenoid 04103808KR
£160.84 excl.
£193.01 incl.
In stock
Expected to ship on Friday 18 September
BPA000320482
Kramp Bearing NWB07673
£28.98 excl.
£34.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000342237
Kramp Platewheel Simplex 51 teeth 1/2" chain 08 B-1 PW1251
£19.66 excl.
£23.59 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000260792

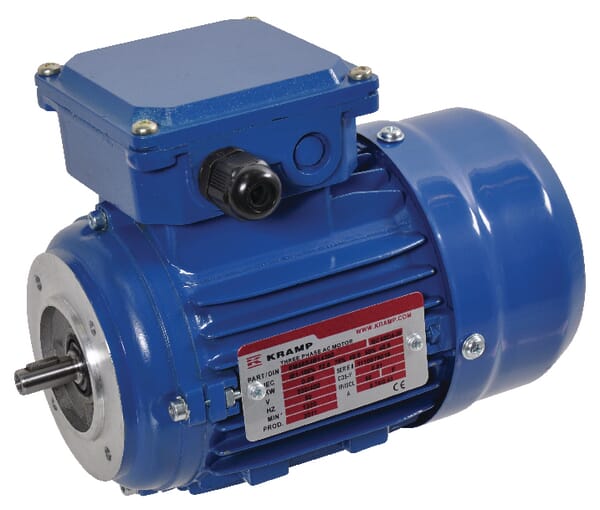

Kramp Electric motor 0.09 kW EM56B4B14300IE1AKR
