£39.90
excl. VAT
£47.88 incl. VAT
£47.88
incl. VAT
£39.90 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

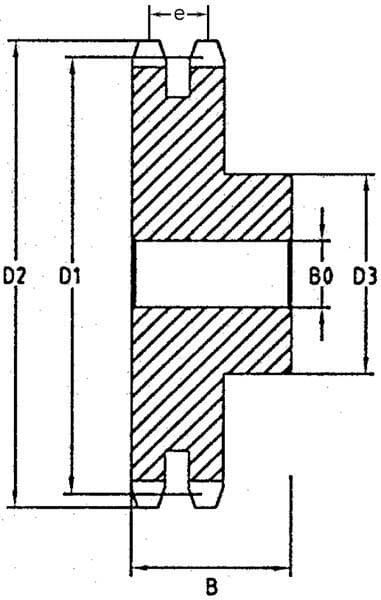

| Application range | NOT suitable for chain ASA/DIN 8188 |
|---|---|
| B0Bore diameter | 20 mm |
| Bore | Yes |
| BWidth | 50 mm |
| Chain size code | 12 B-2 |
| D1Pitch diameter | 158.04 mm |
| D2Outside diameter | 166.2 mm |
| D3Hub diameter | 120 mm |
| Hub type | Hub one side |
| Material | Steel C45 |
| Number of teeth | 26 |
| Sections distance | 19.46 mm |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended maximum bore: D3 x 0.6, For type 12b2 chain |
| Teeth width | 10.8 mm |
| Total teeth width | 30.3 mm |
| Type | Duplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6000 g |
| Dimensions | 160 × 50 × 160 mm |
| Dangerous goods | No |
You might also like
BPA000072011

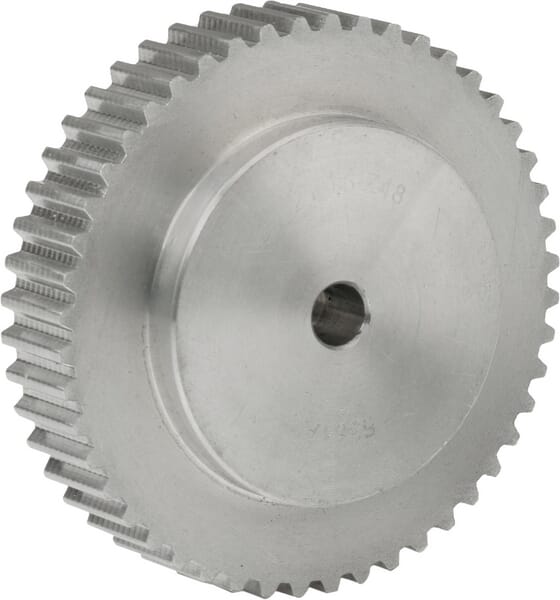

Kramp Timing pulley Type -T5 48Z 21T5480
£19.59 excl.
£23.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000319838
Kramp Bearing NWB07008
£208.79 excl.
£250.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000134839
Kramp Loader tine, curved, square section 35.5x585mm, pointed tip with M20x1.5mm nut, red 519360020
£17.34 excl.
£20.81 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000375759
Kramp Cable tie 4.8x370mm, black, 100pcs TR0148370BLA
£3.94 excl.
£4.73 incl.
In stock
Expected to ship on Friday 18 September
BPA000077596
Kramp Door glass lower 258514212100N
£78.73 excl.
£94.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373858

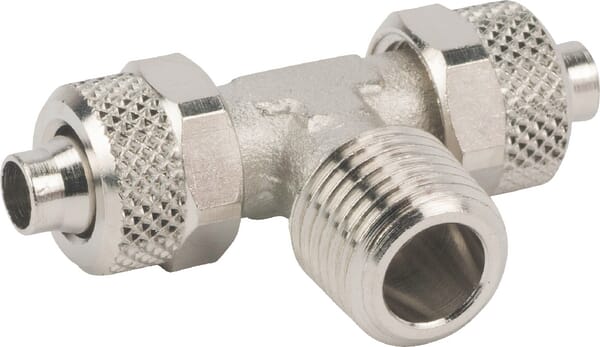

Kramp T-push-on fitting TCCPOT1038
