£66.44
excl. VAT
£79.73 incl. VAT
£79.73
incl. VAT
£66.44 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | NOT suitable for chain ASA/DIN 8188 |
|---|---|
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Bore | Yes |
| Bore diameter | 16 mm |
| BWidth | 32 mm |
| Chain size code | 10 B-2 |
| Consists of | Sprocket, No taperlock adjustment bush supplied |
| D1Pitch diameter | 192.24 mm |
| D2Outside diameter | 199.1 mm |
| D3Hub diameter | 100 mm |
| Details | With taperlock bore |
| Hub type | Hub one side |
| Material | Steel C45 |
| Max. drilled bore diameter | 60 mm |
| Number of teeth | 38 |
| Sections distance | 16.59 mm |
| Taperlock type code | 2517 |
| Teeth width | 9 mm |
| Type | Duplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4786 g |
| Dimensions | 201 × 201 × 47 mm |
| Dangerous goods | No |
You might also like
BPA000054414
Kramp Brush Zig-Zag full-plastic 1715310710
£33.25 excl.
£39.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000174816
Kramp Self tapping screw 4.8x13mm PH2 pan head, stainless steel, DIN 7981C 7981C4813RVSP100
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Friday 18 September
BPA000178942

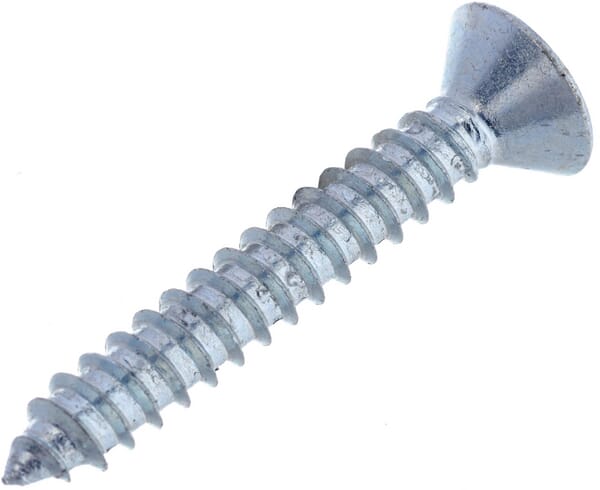

Kramp Self tapping screw 4.8x32mm PZ2 countersunk, DIN 7982C 7982C4832P200
£0.09 excl.
£0.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000202113
Kramp Hexagon head bolt DIN933 UNC 7/8"x2 1/2" steel zinc-plated 8.8 93378212UNC
£10.71 excl.
£12.85 incl.
In stock
Expected to ship on Friday 18 September
BPA000059945

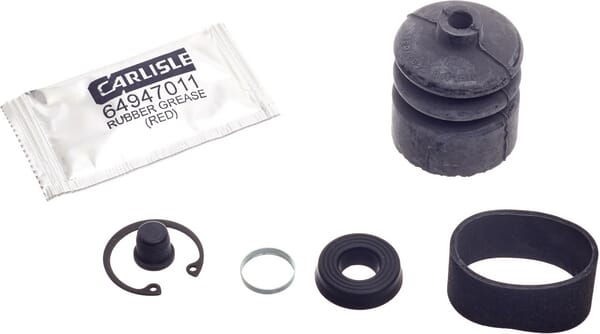

Kramp Brake slave cylinder repair kit 1810573M91N
