£31.91
excl. VAT
£38.29 incl. VAT
£38.29
incl. VAT
£31.91 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Food industry, Damp environments |
|---|---|

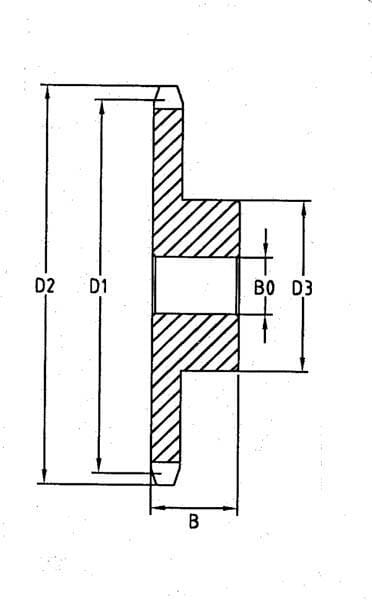

| B0Bore diameter | 10 mm |
| Bore | Yes |
| BWidth | 28 mm |
| Chain size code | 06 B-1 |
| D1Pitch diameter | 57.85 mm |
| D2Outside diameter | 61.6 mm |
| D3Hub diameter | 45 mm |
| Hub type | Hub one side |
| Material | Stainless steel 304 |
| Number of teeth | 19 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended maximum bore: D3 x 0.6, - For type 06B1 chain |
| Teeth width | 5.3 mm |
| Type | Simplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 360 g |
| Dimensions | 60 × 60 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000179676

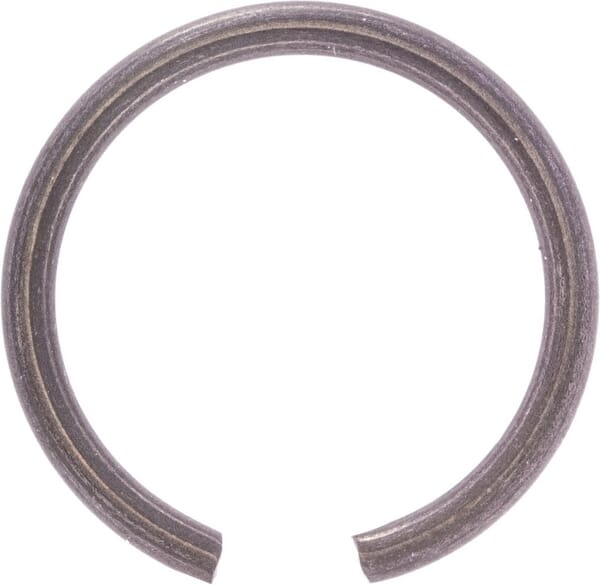

Kramp Snap ring external 20x2mm DIN7993 7993RW20
£0.59 excl.
£0.71 incl.
In stock
Expected to ship on Friday 18 September
BPA000365367
Kramp V-belt SPZ772 SPZ772KR
£4.76 excl.
£5.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148833

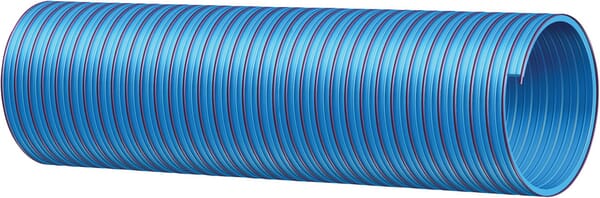

Kramp PVC hose blue/red 6" 20m 6000820Z
£632.19 excl.
£758.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000270608

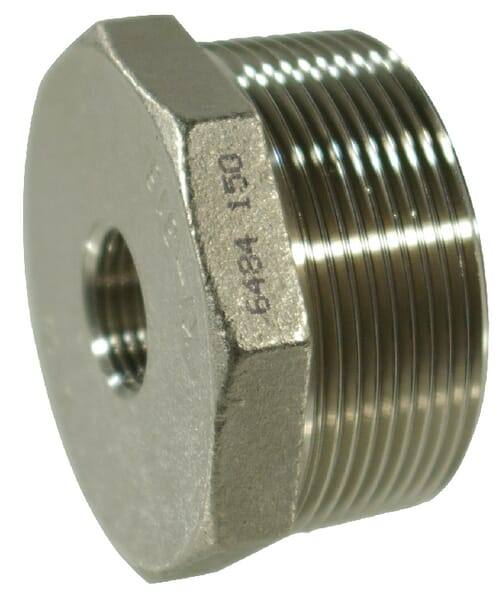

Kramp Reducer S.S. F 1 1/2" x M 2" FG2412112RVS
£11.88 excl.
£14.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000000473

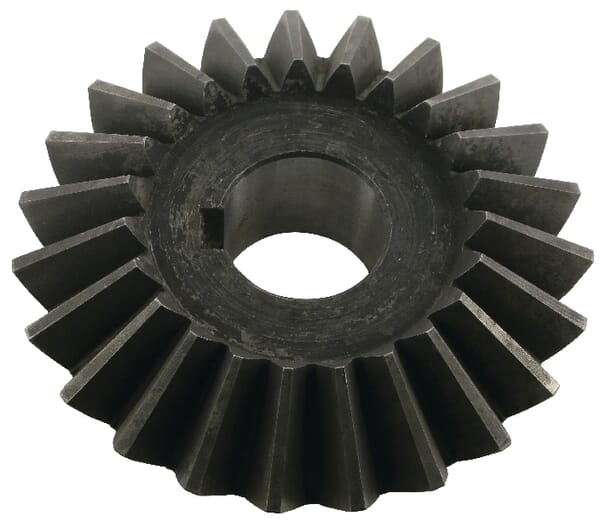

Kramp Bevel gear 0006055871KR
