£234.89
excl. VAT
£281.87 incl. VAT
£281.87
incl. VAT
£234.89 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Food industry, Damp environments |
|---|---|
| B0Bore diameter | 20 mm |
| Bore | Yes |
| BWidth | 45 mm |
| Chain size code | 16 B-1 |
| Consists of | Sprocket, Hub, keyway and mortise are optional |
| D1Pitch diameter | 162.38 mm |
| D2Outside diameter | 173.9 mm |
| D3Hub diameter | 100 mm |
| Hub type | Hub one side |
| Material | Stainless steel 304 |
| Number of teeth | 20 |
| Technical info | Tooth width: 16.2 mm, Hub diameter = D1x0.6, Material: stainless steel 304, - For type 16b1 chain |
| Teeth width | 16.2 mm |
| Type | Simplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4268 g |
| Dimensions | 174 × 172 × 48 mm |
| Dangerous goods | No |
You might also like

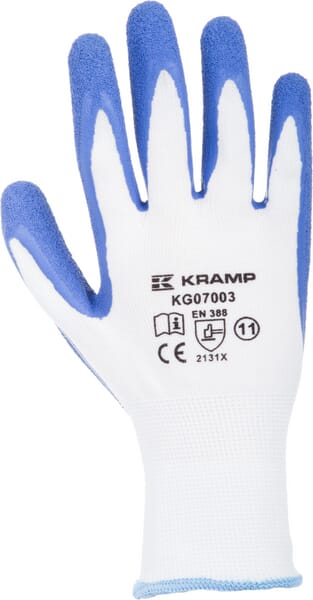

BPA000297165
Kramp Work gloves white polyester size 7/S Protect by KG0700307
£2.00 excl.
£2.40 incl.
In stock
Expected to ship on Tuesday 22 September

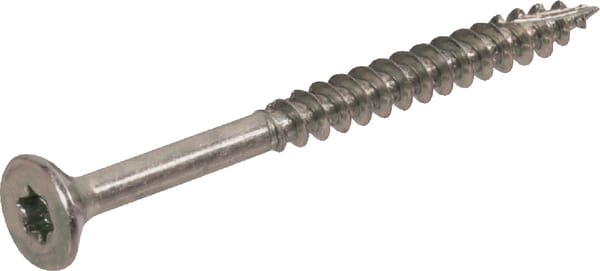

BPA000365009
Kramp Wood screw 3x20mm TX10 countersunk, stainless steel SPT320RVS
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000196945
Kramp Hexagon socket head cap screw DIN912 M4x6 stainless steel A2 91246RVSP025
£0.14 excl.
£0.16 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000357943
Kramp Sprocket Simplex 15 teeth 3/4" chain 12 B-1 for taperlock bush 1610 SE3415TL
£10.50 excl.
£12.60 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000246314
Kramp Knife 600, right CP488857KR
£72.83 excl.
£87.40 incl.
In stock
Expected to ship on Tuesday 22 September

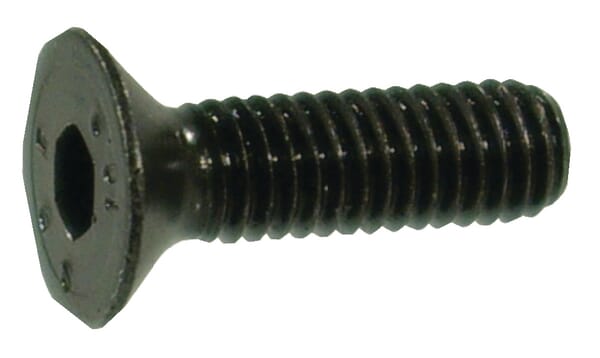

BPA000179431
