£77.74
excl. VAT
£93.29 incl. VAT
£93.29
incl. VAT
£77.74 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Food industry, Damp environments |
|---|---|
| B0Bore diameter | 16 mm |
| Bore | Yes |
| BWidth | 30 mm |
| Chain size code | 10 B-1 |
| D1Pitch diameter | 106.52 mm |
| D2Outside diameter | 113.4 mm |
| D3Hub diameter | 75 mm |
| Hub type | Hub one side |
| Material | Stainless steel 304 |
| Number of teeth | 21 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended maximum bore: D3 x 0.6, - For type 10B1 chain |
| Teeth width | 9.1 mm |
| Type | Simplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1267 g |
| Dimensions | 103 × 108 × 30 mm |
| Dangerous goods | No |
You might also like

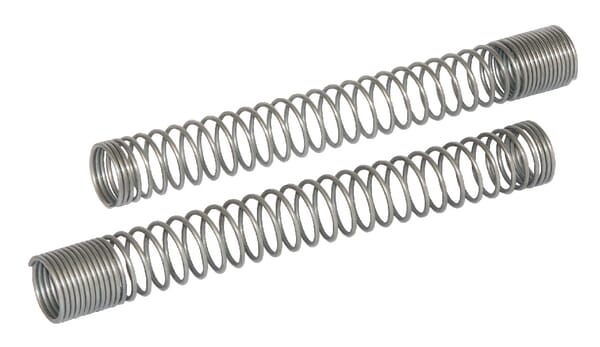

BPA000227257
Kramp Protection Spring 1/4" L=100mm AKV19100
£13.41 excl.
£16.09 incl.
In stock
Expected to ship on Monday 21 September
BPA000203235
Kramp Hexagon head bolt DIN933 M12x45 steel 8.8 9331245B
£0.56 excl.
£0.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000186640
Kramp Oil seal 3-7/16x4-1/2x1/2" type:CB DIN 3760 1x 87311143127CBP001
£15.88 excl.
£19.06 incl.
Backorder available
Usually ships within 3–8 weeks

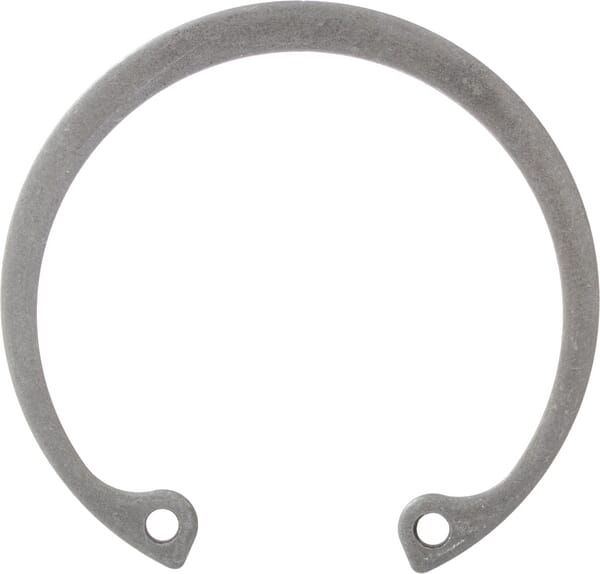

BPA000119742
Kramp Circlip internal 39x1.5mm DIN472 Steel 47239P025
£0.40 excl.
£0.48 incl.
In stock
Expected to ship on Monday 21 September

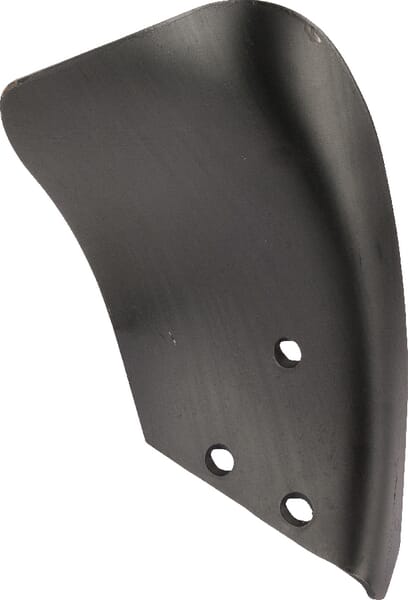

BPA000155065
Kramp Skim mouldboard ZRL RH 619132N
£32.48 excl.
£38.98 incl.
In stock
Expected to ship on Monday 21 September

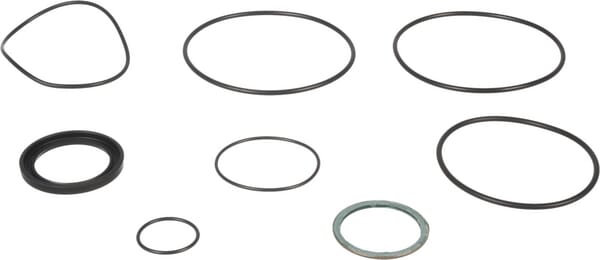

BPA000359874
