£53.75
excl. VAT
£64.50 incl. VAT
£64.50
incl. VAT
£53.75 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | NOT suitable for chain ASA/DIN 8188 |
|---|---|
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Bore | Yes |
| Bore diameter | 16 mm |
| BWidth | 45 mm |
| Chain size code | 16 B-1 |
| Consists of | Sprocket, No taperlock adjustment bush supplied |

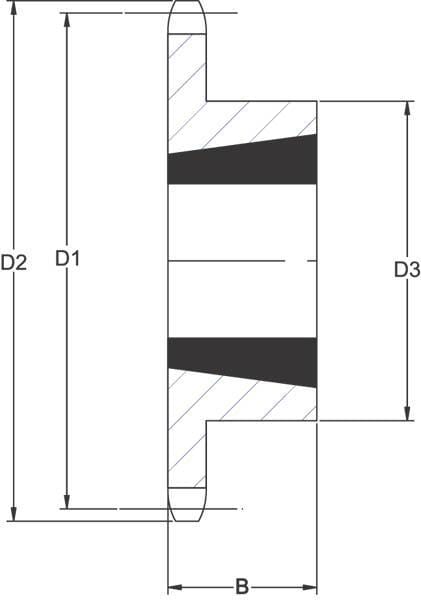

| D1Pitch diameter | 186.53 mm |
| D2Outside diameter | 198.1 mm |
| D3Hub diameter | 110 mm |
| Details | With taperlock bore |
| Hub type | Hub one side |

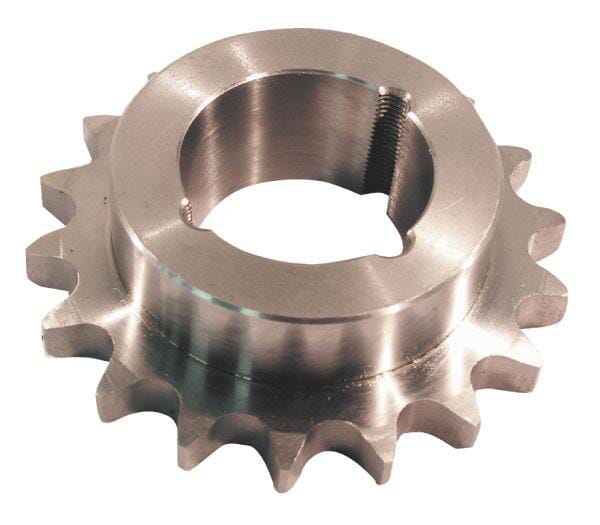

| Long description | Taper bore sprockets system Taperlock simplex 1" x 17,02 mm |
| Material | Steel C45 |
| Max. drilled bore diameter | 60 mm |
| Number of teeth | 23 |
| Taperlock type code | 2517 |
| Teeth width | 16.2 mm |
| Type | Simplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3360 g |
| Dimensions | 200 × 200 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000000916

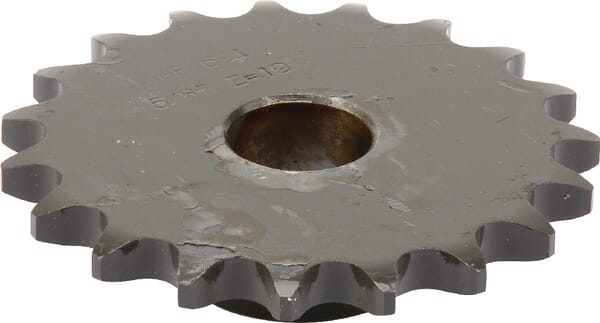

Kramp Sprocket 0006461261KR
£40.18 excl.
£48.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404528

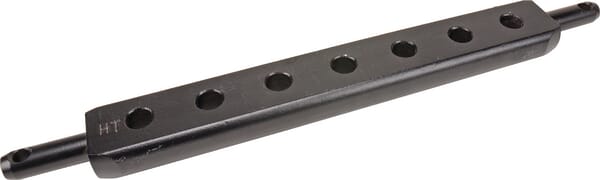

Kramp Drawbar cat.1 - 500mm Z622540KR
