Roll over image to zoom in · Click to see full view
£19.37
excl. VAT
£23.24 incl. VAT
£23.24
incl. VAT
£19.37 excl. VAT
In stock
Expected to ship on Thursday 1 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

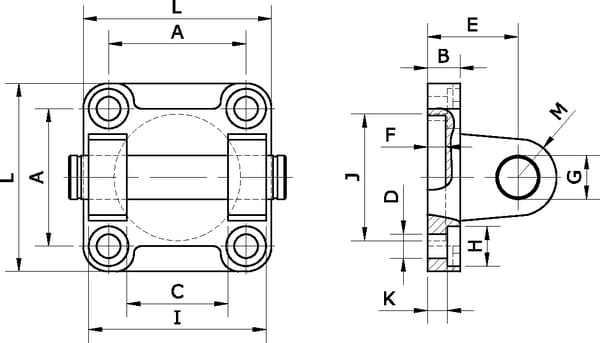

Product details
| ADistance for locating holes | 32,5 mm |
|---|---|
| BThickness | 9 mm |
| CLength C | 26 mm |
| Cylinder Ø | 32 mm |
| DDiameter mounting holes | Ø 6.6 H13 mm |
| ECenter hole distance | 22 mm |
| FLength F | 5 mm |
| For cylinder | DIN ISO 21287, DIN ISO 15552 |
| GCenter bore | Ø 10 H9 mm |
| HBore diameter | Ø 11 H13 mm |
| Height J | Ø 30 H11 mm |
| ILength I | 45 mm |
| Includes | Swivel flange, Axle bolt, -Circlip, 4 screws |
| ISO standard | 15552 |
| KLength K | 55 mm |
| LL | 45 mm |
| Material | Aluminium |
| MM | 10 max mm |
| Product details | For cylinders : DIN ISO 21287, DIN ISO 15552 |
| Surface treatment | n/a |
| Unit | Each |
Logistics
| EAN | 8716106691999 |
|---|---|
| Unit of measure | EA |
| Weight | 114 g |
| Dimensions | 120 × 90 × 33 mm |
| Dangerous goods | No |
