£5.72
excl. VAT
£6.86 incl. VAT
Pack of 100 · £0.06 each excl. VAT
£6.86
incl. VAT
£5.72 excl. VAT
Pack of 100 · £0.07 each incl. VAT
In stock
Expected to ship on Friday 18 September
About this product
A DIN 7500C Taptite self-tapping screw with M3 thread diameter and 16 mm length, supplied in packs of 100 pieces. The screw features a cheese head design with 5.6 mm outside diameter and 2.4 mm head height. The three-lobed thread profile forms threads in both soft and hard materials without requiring pre-tapped holes, concentrating thread formation at three points to reduce installation resistance. The screw is manufactured from steel and zinc-plated for corrosion resistance. Thread pitch is 0.50 mm and the connection is self-locking. Each pack of 100 pieces weighs approximately 0.2 kg. EAN 5700038092163.
Product details
| Content in sale unit | 100 pcs |
|---|---|
| DHead outside diameter (width) | 5.6 mm |
| DIN standard | 7500C |
| Head shape | Cheese |
| kHead height | 2.4 mm |
| lLength | 16 mm |
| Long description | Self-tapping Taptite screw, DIN 7500. A three-lobed thread-forming screw forms threads in both soft and hard materials in the pre-drilled or punched hole, eliminating the need for thread tapping. The specific triangular shape concentrates the thread forming at three points and reduces resistance during installation. The connection is self-locking, no additional locking provisions are required. |
| Material | Steel |
| Qty. Rounding | 100 |
| Surface treatment | Zinc-plated |
| Thread diameter | M3 |
| Thread pitch | 0.50 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 0.2 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 5700038092163 |
|---|---|
| Unit of measure | EA |
| Weight | 1 g |
| Dimensions | 97 × 50 × 1 mm |
| Dangerous goods | No |
You might also like
BPA000045525
Kramp Oil seal 140x170x14mm type:CC DIN 3760 1x 14017014CCP001
£12.76 excl.
£15.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000357878

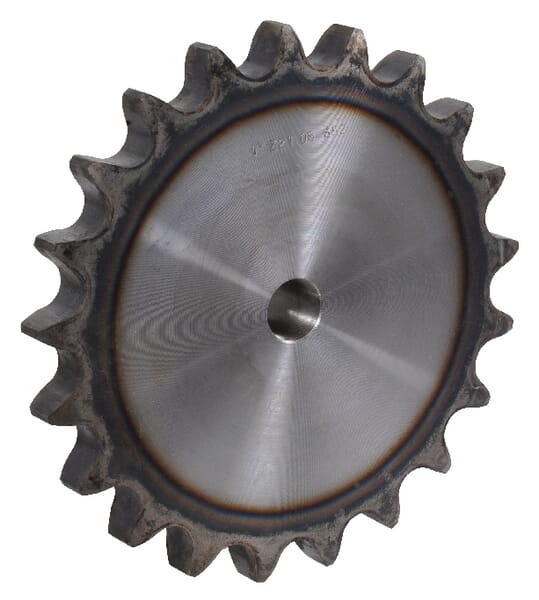

Kramp Sprocket Simplex 35 hardened teeth 1" chain 16 B-1 SE135GH
