£66.83
excl. VAT
£80.20 incl. VAT
£80.20
incl. VAT
£66.83 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details

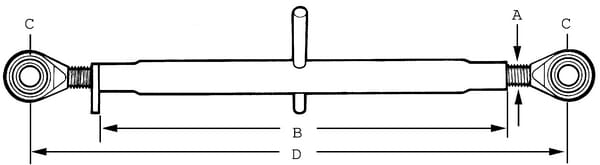

| Application range | M24 for tractors up to 42 kW, M27 for tractors up to 42 kW, cat. 1, M27 for tractors up to 75 kW, cat. 2, M30 for tractors up to 75 kW, M36 for tractors up to 135 kW |
|---|---|
| BRod length | 290 mm |
| Category by machine side | 1 |
| Category by tractor side | 1 |
| CConnection hole diameter by machine side | 19.4 mm |
| CConnection hole diameter by tractor side | 19.4 mm |
| Connections category | Eye - Eye |
| DMax working length | 600 mm |
| DMin working length | 400 mm |
| Long description | Toplink M24 x 3,0 - M36 x 3,0 |
| Properties | Zinc plated spindles, Tube, painted black |
| Rod outside diameter | 44.5 mm |
| Thread diameter | M27 |
| Thread pitch | 3.00 mm |
| Thread type | Metric |
| Unit | Each |
| Wall thickness | 5.5 mm |
Logistics
| EAN | 8716106069576 |
|---|---|
| Unit of measure | EA |
| Weight | 3980 g |
| Dimensions | 486 × 85 × 50 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000244883

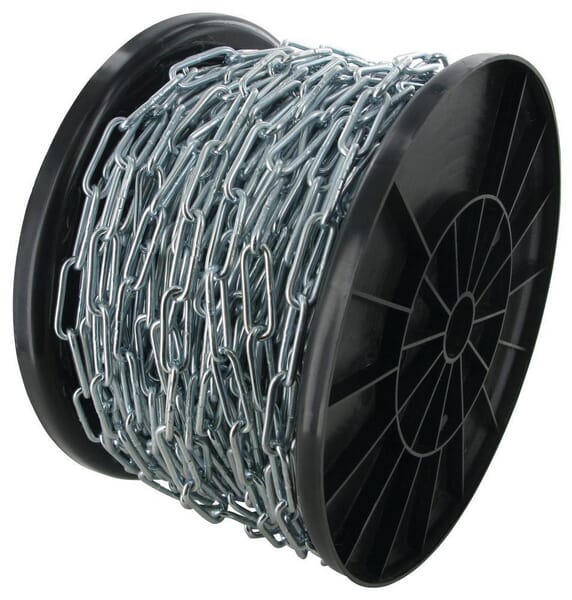

Kramp Chain diameter 7mm x 49mm Roll:26m zinc-plated CK70P026
£100.85 excl.
£121.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374705
Kramp Tension spring 5 x30 x500 TV530500
£21.79 excl.
£26.15 incl.
In stock
Expected to ship on Monday 21 September
BPA000302024
Kramp Split pin 2 x 45mm (10) KR94245P10B
£1.31 excl.
£1.57 incl.
In stock
Expected to ship on Monday 21 September
BPA000040191

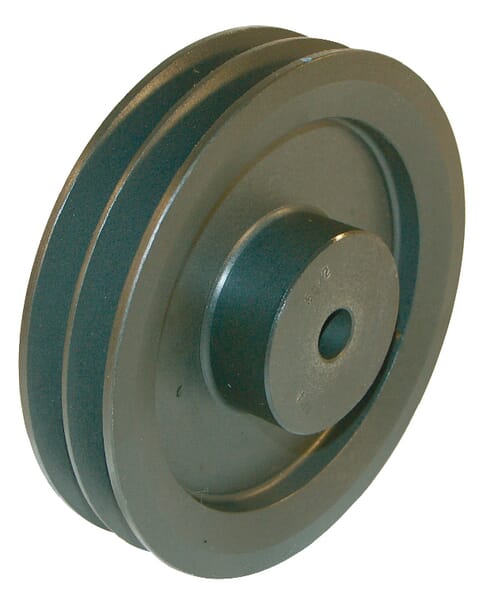

Kramp V-belt pulley 2 groove B or SPB diameter 125 mm 118B2
£30.85 excl.
£37.02 incl.
In stock
Expected to ship on Monday 21 September
BPA000349430

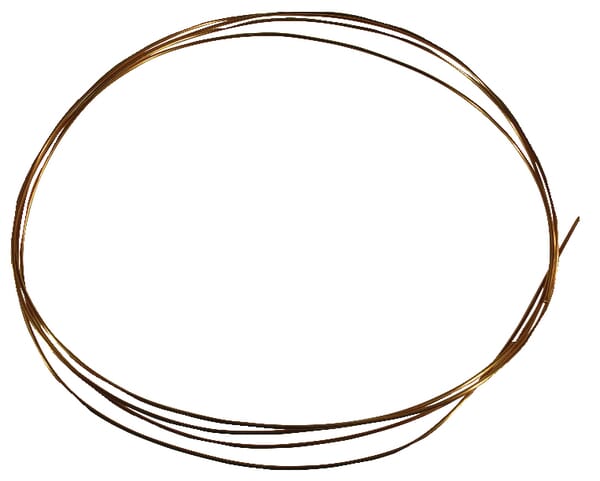

Kramp Red copper pipe 4x2 mm RKB42
