£53.26
excl. VAT
£63.91 incl. VAT
£63.91
incl. VAT
£53.26 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
About this product
A replacement cylinder tube for Kramp Saturn double-acting cylinders (series C25), designed for machines manufactured after May 2009. The tube measures 582 mm in total length with a 500 mm stroke, 42 mm outside diameter, and 32 mm inside bore. It is manufactured from steel ST52-3 and features an M36 × 1.50 mm threaded connection. The tube incorporates two 1/4 inch BSP oil connection ports, each 16 mm in length, with internal surface finish specifications of 0.8 RA for bores up to 90 and 0.4 RA for larger bores. Supplied as a single unit. The product carries EAN 8719732823635.
Product details

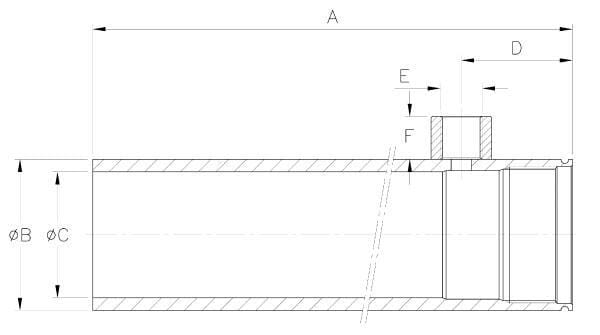

| Application range | Double-acting Saturn cylinder, Year of construction after 05/2009 |
|---|---|
| ATotal length | 582 mm |
| BOutside diameter | 42 mm |
| CInside diameter | 32 mm |
| DCylinder tube length | 36 mm |
| FOil connection length | 16 mm |
| Material | Steel ST52-3 |
| Oil connections thread diameter | 1/4 Inch |
| Oil connections thread type | BSP |
| Properties | Up to and including bore 90: 0.8 RA, From bore 90: 0.4 RA |
| Stroke | 500 mm |
| Suitable for cylinder series | C25 |
| Thread diameter | M36 |
| Thread pitch | 1.50 mm |
| Unit | Each |
Logistics
| EAN | 8719732823635 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000329765
Kramp O-ring 43.82x5.33mm 70 shore 10x OR4382533P010
£3.76 excl.
£4.51 incl.
In stock
Expected to ship on Friday 18 September
BPA000179369

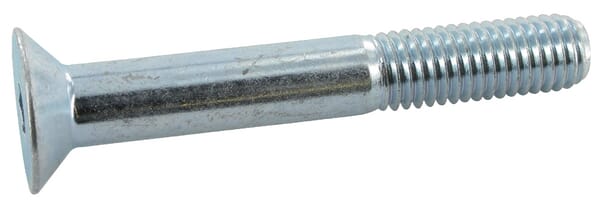

Kramp Countersunk head screw DIN7991 M12x80 steel zinc-plated 10.9 79911280
