£22.14
excl. VAT
£26.57 incl. VAT
£26.57
incl. VAT
£22.14 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 10 mm |
| BWorking width | 20 mm |
| Contains spokes | No |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 34 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 117.5 mm |
| PPitch diameter | 112 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 8719774920255 |
|---|---|
| Unit of measure | EA |
| Weight | 1492 g |
| Dimensions | 118 × 118 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000279608

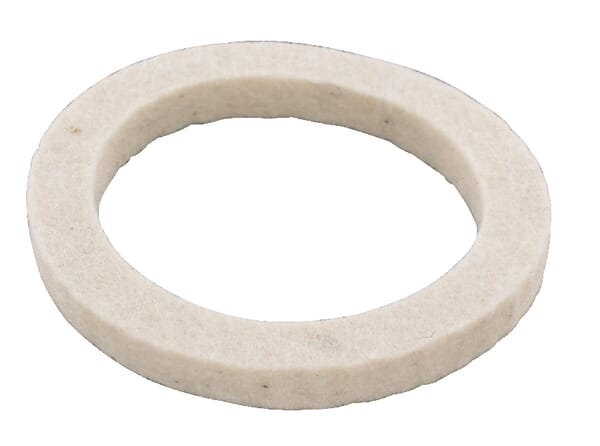

Kramp Felt ring FR10513010WP001
£37.11 excl.
£44.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000273107
Kramp Engine stop cable MTD FGP456945
£12.22 excl.
£14.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000283969
Kramp Hose protector 8mm black HD000179
£3.60 excl.
£4.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000330959
Kramp O-ring 79x3.5mm 70 shore OR79350P001
£1.76 excl.
£2.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000196928
Kramp Hexagon socket head cap screw DIN912 M4x35 steel 12.9 912435129B
£0.19 excl.
£0.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000360800

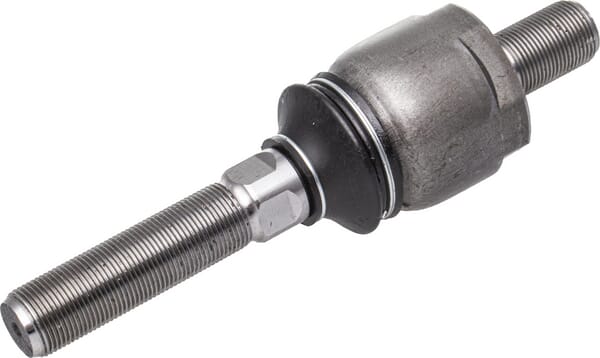

Kramp Axial ball end SHP065KR
