£28.30
excl. VAT
£33.96 incl. VAT
£33.96
incl. VAT
£28.30 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 15 mm |
| BWorking width | 20 mm |
| Contains spokes | No |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 34 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 123.5 mm |
| PPitch diameter | 118 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 8719774920439 |
|---|---|
| Unit of measure | EA |
| Weight | 1768 g |
| Dimensions | 125 × 125 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000143956
Kramp Oil seal 56x72x10mm type:CB DIN 3760 1x 567210CBP001
£3.89 excl.
£4.67 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000330514
Kramp O-ring 6.5x1.5mm 75 shore Viton 10x OR650150VP010
£3.39 excl.
£4.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000152825
Kramp Oil seal 60x90x10mm type:BC DIN 3760 1x 609010BCP001
£3.71 excl.
£4.45 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000289367

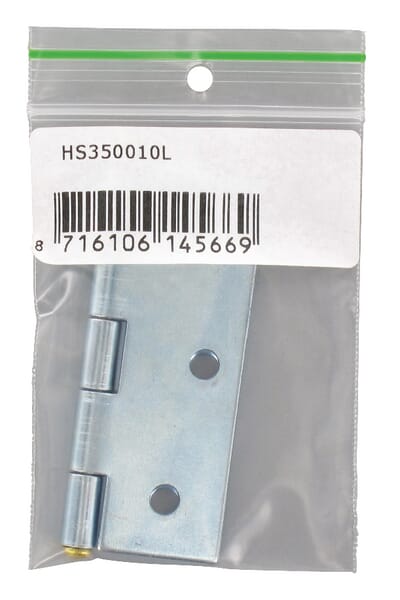

Kramp Narrow hinge 70x51mm HS350010L
£2.39 excl.
£2.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000240021

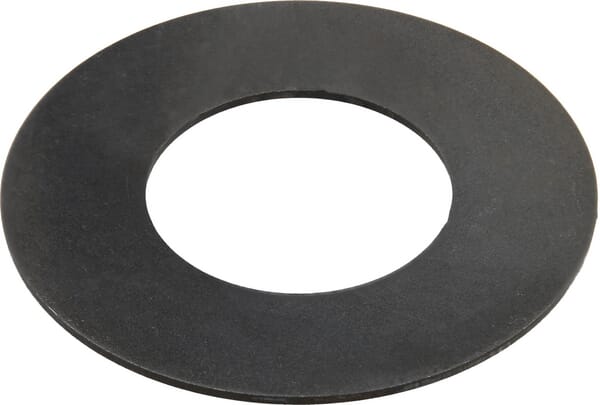

Kramp Shim diameter 101x160x2mm CBS10016020H
£7.25 excl.
£8.70 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000337768

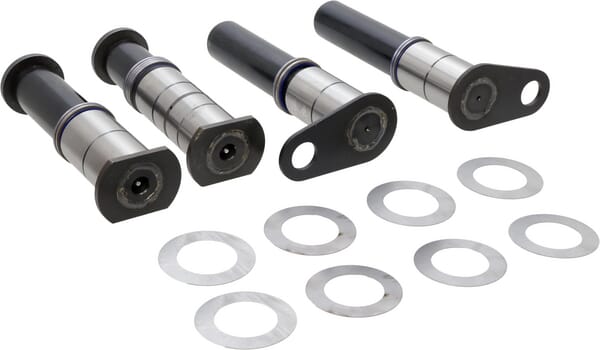

Kramp Pin and bush kit PBKUBKX0803
£941.55 excl.
£1,129.86 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping
BPA000173531
SKF Deep groove ball bearing 35x62x14mm 7500W60072RS
£153.94 excl.
£184.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000306730

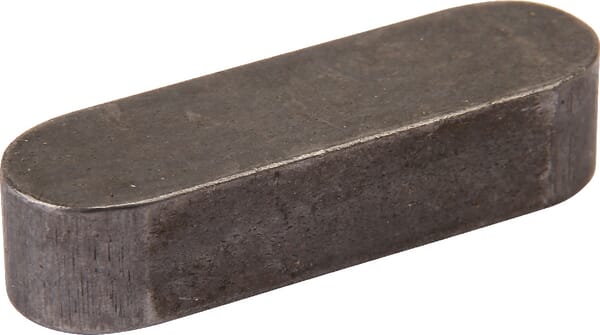

Kverneland / Taarup Steel key 10x8x35 KT99354026
£8.22 excl.
£9.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000140728
Kramp Oil seal 55x85x13mm type:BB DIN 3760 1x 558513BBP001
£11.42 excl.
£13.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232646

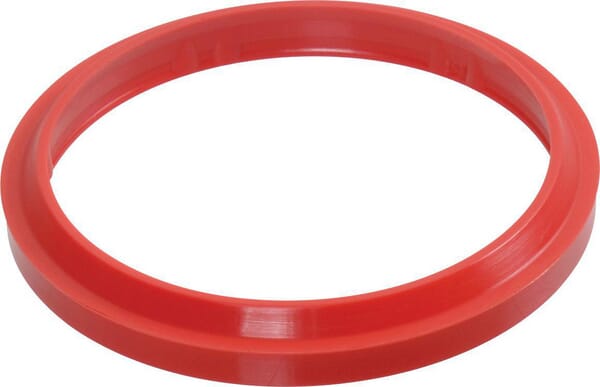

Hallite Rod wiper ASU 63x73.6x5.3/7mm ASU6373653T38
