£22.94
excl. VAT
£27.53 incl. VAT
£27.53
incl. VAT
£22.94 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 25 mm |
| Hub diameter | 92 mm |
| Hub width | 20 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 5 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 123.5 mm |
| PPitch diameter | 118 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245271 |
|---|---|
| Unit of measure | EA |
| Weight | 1170 g |
| Dimensions | 124 × 124 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000196970
Kramp Hexagon socket head cap screw DIN912 M5x135 steel 12.9 9125135129B
£2.37 excl.
£2.84 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000327237
Kramp Antifreeze K12+ concentrate 1.5L OAT601001KR
£10.76 excl.
£12.91 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000296252

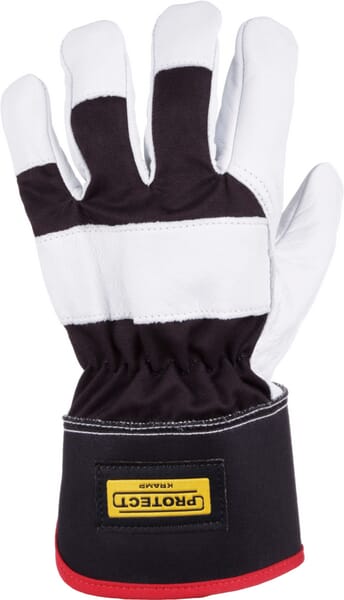

Kramp Work gloves black-white leather/cotton twill size 8/M Protect by KG0300408
