£24.85
excl. VAT
£29.82 incl. VAT
£29.82
incl. VAT
£24.85 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 25 mm |
| Hub diameter | 92 mm |
| Hub width | 20 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 5 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 137.5 mm |
| PPitch diameter | 132 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245370 |
|---|---|
| Unit of measure | EA |
| Weight | 1565 g |
| Dimensions | 140 × 140 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000004452

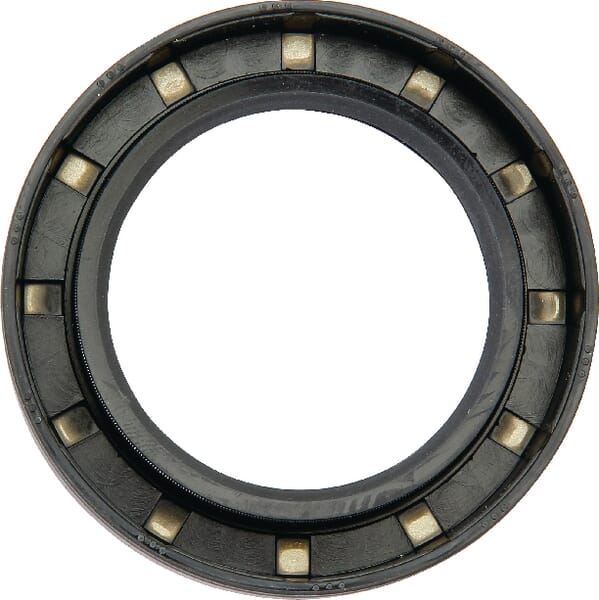

Kramp Seal 0002371212KR
£7.00 excl.
£8.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326978
Kramp Gasket NWS00423
£5.51 excl.
£6.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000304599
Kramp Work light LED, 27W, 3420lm, square, white, 96.5x48.5x124.5mm,Deutsch 2-pin, flood, LA10908
£17.05 excl.
£20.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000324296
Kramp Conrod bearing set NWB01768
£78.76 excl.
£94.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000315365

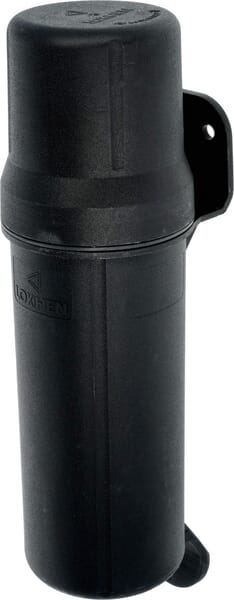

Kramp Document holder MB115021KR
£10.60 excl.
£12.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000270303

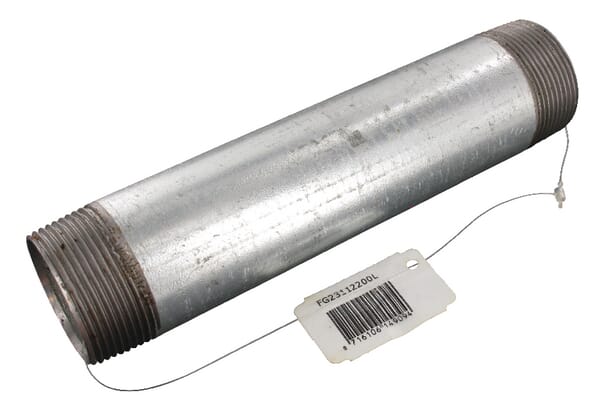

Kramp Pipe nipple galv. 1 1/2"x200mm FG23112200L
