£47.46
excl. VAT
£56.95 incl. VAT
£56.95
incl. VAT
£47.46 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 25 mm |
| Hub diameter | 92 mm |
| Hub width | 20 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 5 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 175.5 mm |
| PPitch diameter | 170 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245578 |
|---|---|
| Unit of measure | EA |
| Weight | 2018 g |
| Dimensions | 176 × 176 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000190649
Kramp Housing, bearing 84807862N
£122.59 excl.
£147.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000296734
Kramp Reversible Point right hand suitable for Kverneland KK053090N
£5.84 excl.
£7.01 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000277852

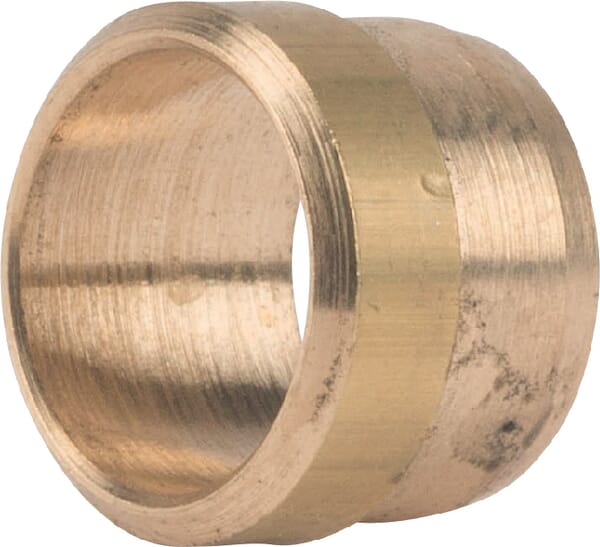

Kramp Ferrule FRCR8
£0.47 excl.
£0.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000151067

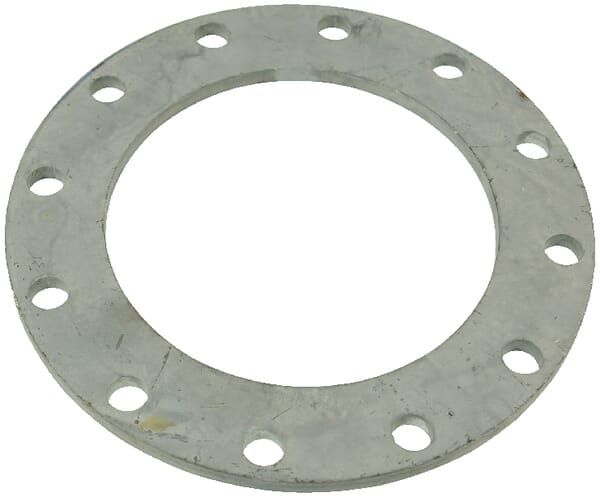

Kramp E-flange 6" 12 holes galv. 6320001Z
£89.64 excl.
£107.57 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198631
Kramp Hexagon head bolt DIN931 M6x65 steel zinc-plated 10.9 931665109
£0.23 excl.
£0.27 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000366205

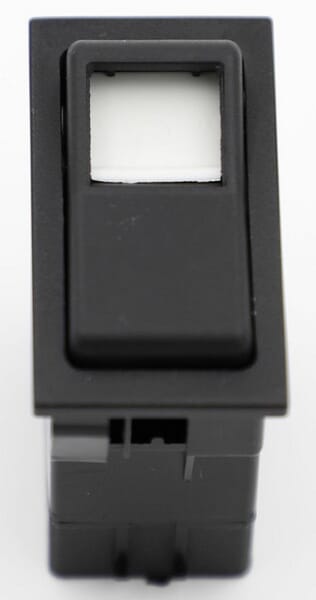

Kramp Rocker switch, I-0, on-off, 12/24V, 4-pin, locating lighting, with bulb SW10017KR
