£52.83
excl. VAT
£63.40 incl. VAT
£63.40
incl. VAT
£52.83 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 20 mm |
| BWorking width | 20 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 42 mm |
| Hub diameter | 70 mm |
| LHub width | 36 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 230.5 mm |
| PPitch diameter | 225 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 8719774921399 |
|---|---|
| Unit of measure | EA |
| Weight | 3665 g |
| Dimensions | 232 × 232 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000337930

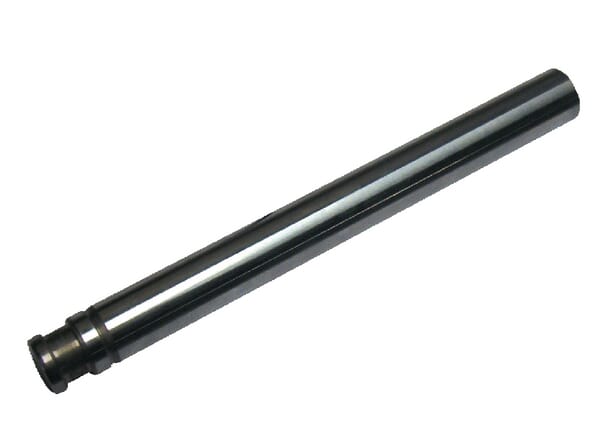

Kramp PB rod 30 stroke 300 PC2 L406 PC29030060300
