£59.19
excl. VAT
£71.03 incl. VAT
£71.03
incl. VAT
£59.19 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| ECore disc thickness | 10 |
| FWorking width | 32 mm |
| Hub diameter | 112 mm |
| Hub width | 20 mm |
| JChamber diameter | 245 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 12 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 285.5 mm |
| PPitch diameter | 280 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4189 g |
| Dimensions | 290 × 290 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000284161
Kramp Hight pressure nozzle 15° 020 1/4" BSP HD1614020
£8.38 excl.
£10.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000326827
Kramp Ball Bearing NWB931879
£23.83 excl.
£28.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000337750
Kramp Pin and bush kit PBKOMPC18MR2
£297.56 excl.
£357.07 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000142857

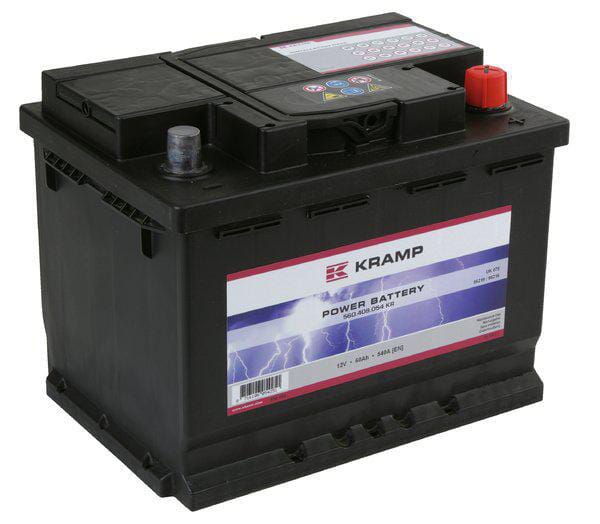

Kramp Battery 12V 60Ah 540A UK: 075 560408054KR
£83.67 excl.
£100.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000041045

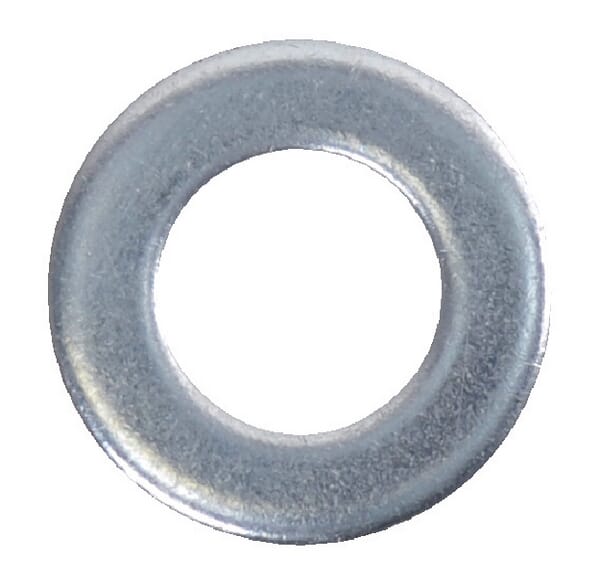

Kramp Washer M33x60x5mm, Steel Zinc-plated DIN 125a 125A33
