£159.69
excl. VAT
£191.63 incl. VAT
£191.63
incl. VAT
£159.69 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 45 mm |
| Hub diameter | 124 mm |
| Hub width | 45 mm |
| JChamber diameter | 465 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 25 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 505.5 mm |
| PPitch diameter | 500 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486246223 |
|---|---|
| Unit of measure | EA |
| Weight | 9230 g |
| Dimensions | 505 × 505 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000352440
Kramp Gland packing 14x14 SBP140ERICA
£17.08 excl.
£20.50 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000304765
Kramp Fun socks UK: 1-3 (32-34) 3 pairs KW1290006034
£15.34 excl.
£18.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000370194

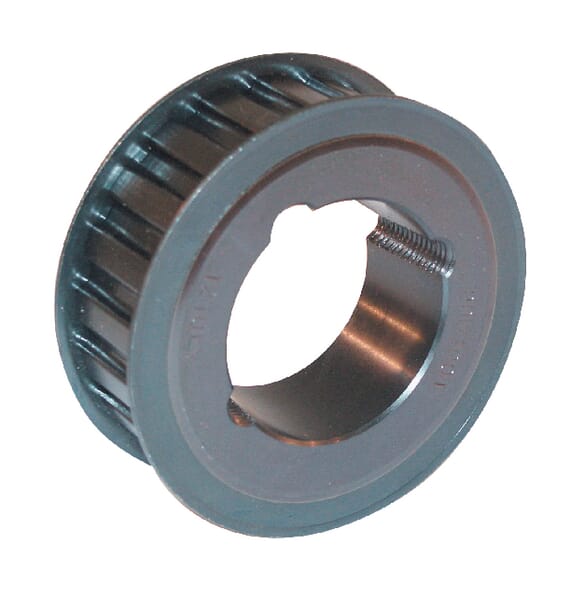

Kramp Timing pulley Taperlock 1610 TB28H150
