£59.43
excl. VAT
£71.32 incl. VAT
£71.32
incl. VAT
£59.43 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 15 |
| FWorking width | 32 mm |
| Hub diameter | 104 mm |
| Hub width | 32 mm |
| JChamber diameter | 147 mm |
| KHub offset 1 | 3.5 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 3.5 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 197 mm |
| PPitch diameter | 190 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486246889 |
|---|---|
| Unit of measure | EA |
| Weight | 3329 g |
| Dimensions | 196 × 196 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000324129

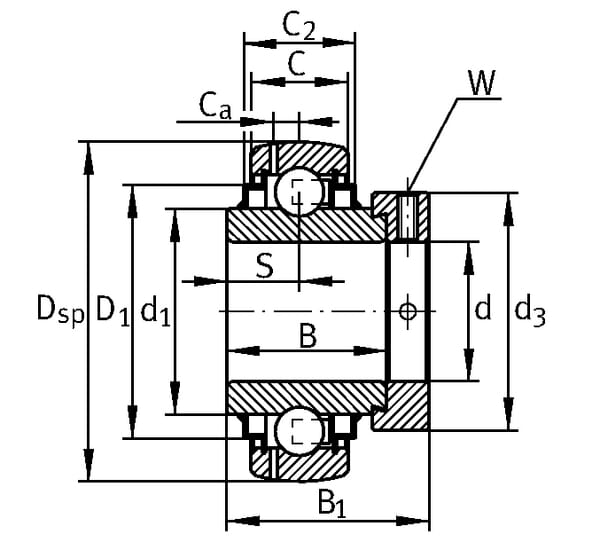

Kramp Bearing NWB01081
£55.01 excl.
£66.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000276168

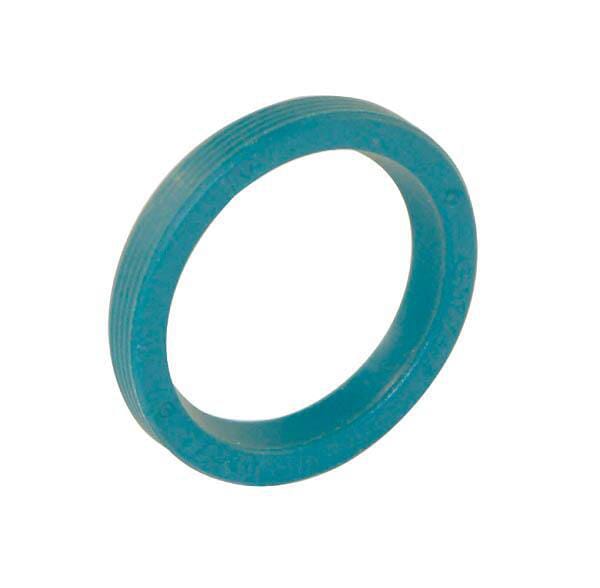

Kramp Oil seal 17x23x3mm type:G G17233
£0.69 excl.
£0.83 incl.
In stock
Expected to ship on Friday 18 September
BPA000279571

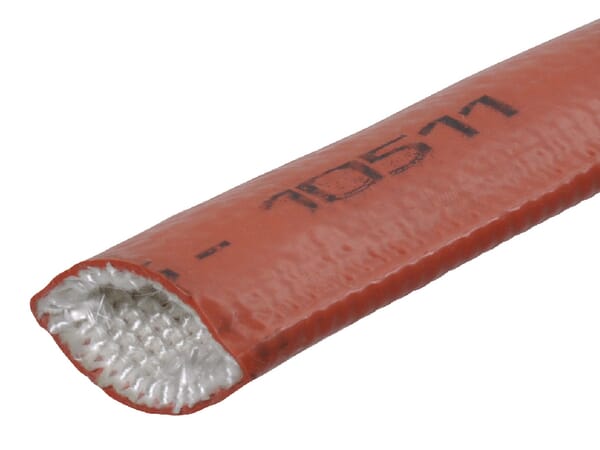

Kramp Fire sleeve 29 mm FPS29
£30.48 excl.
£36.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000316460
Kramp Spur gear module 1.5 - Z=57 MOD1557
£11.45 excl.
£13.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000234237

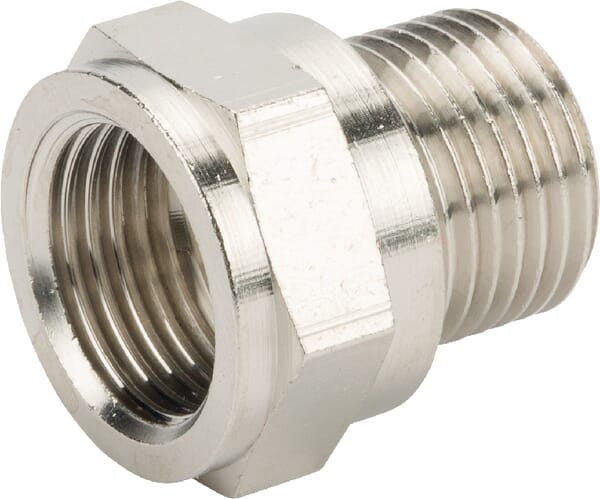

Kramp Adaptor BTA
£5.08 excl.
£6.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000397166

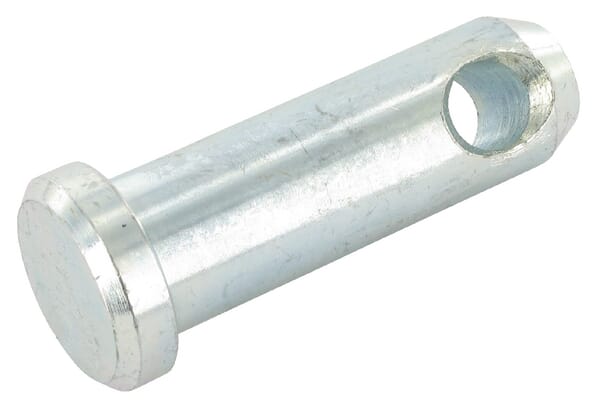

Kramp Pin 22x55mm Cat.1 Z422055KR
