£73.98
excl. VAT
£88.78 incl. VAT
£88.78
incl. VAT
£73.98 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

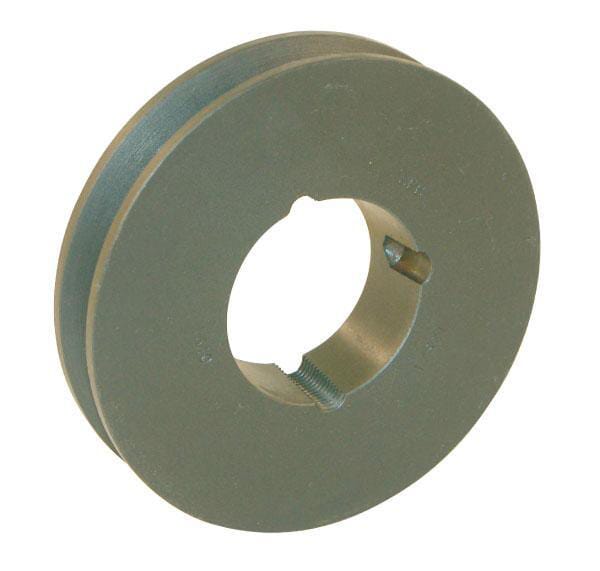

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 15 |
| FWorking width | 32 mm |
| Hub diameter | 104 mm |
| Hub width | 32 mm |
| JChamber diameter | 169 mm |
| KHub offset 1 | 3.5 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 3.5 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 219 mm |
| PPitch diameter | 212 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486247022 |
|---|---|
| Unit of measure | EA |
| Weight | 3716 g |
| Dimensions | 218 × 218 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000209578
Kramp Shim diameter 8x14x0.2mm DIN 988 98881402P025
£0.08 excl.
£0.10 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000269548
Kramp Recoil start spring Tecumseh 17510001 FGP001841
£7.54 excl.
£9.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000399110

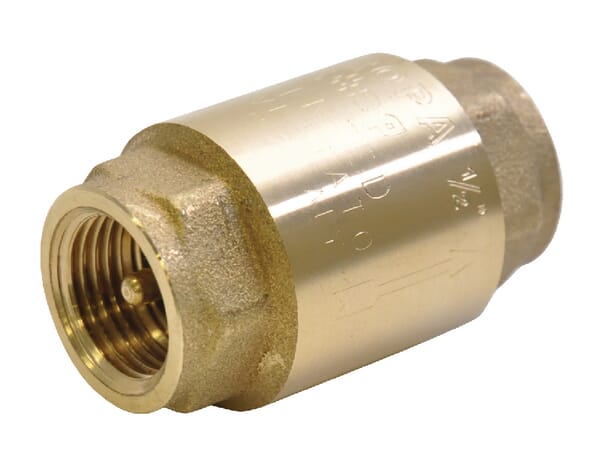

Kramp Brass check valve 3/4" WK51102
